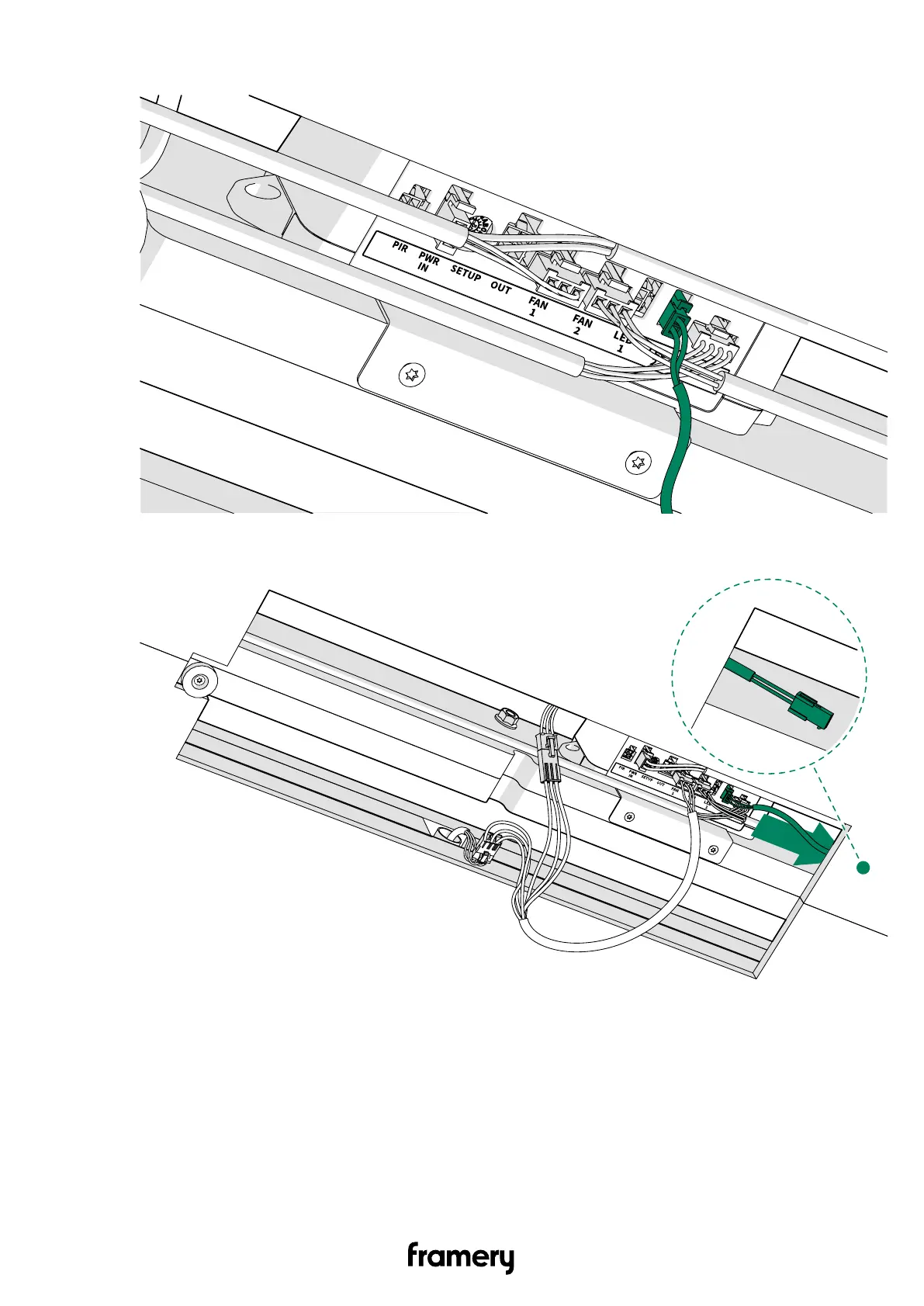

6. Connect the light extension cord to the LED 2 connector of the control unit.

7. Feed the light extension cord from the front of the pod to the back and out of the light

opening.
