Framery 2Q Huddle

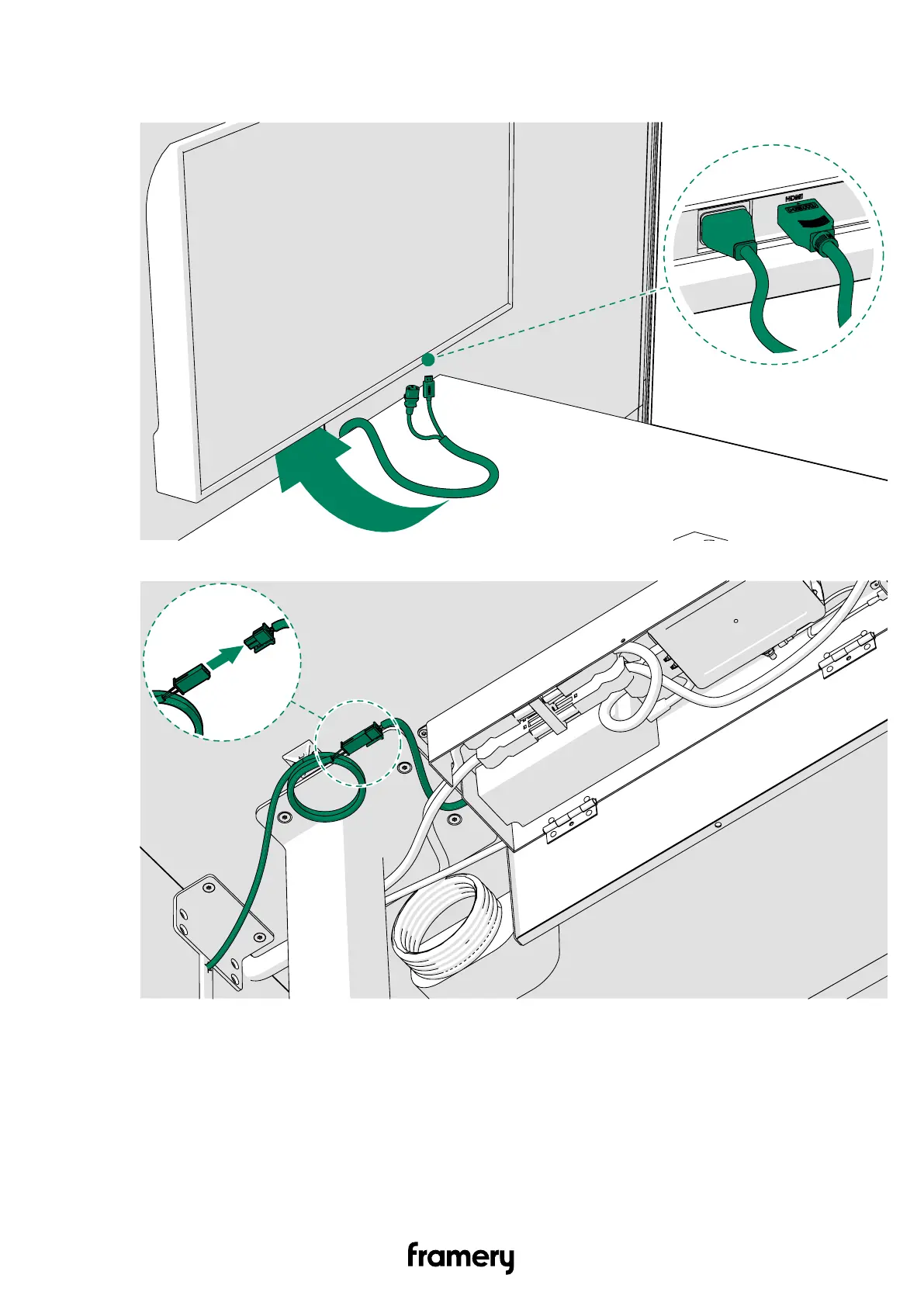

2. Connect the display power cord and HDMI cord to the display.

The display is compatible with IEC C 13 connector.

3. Connect the DC extension cord to the power unit DC cord.

162

Installation instructions
