Framery 2Q - Page 163

To Next Page

To Previous Page

Framery 2Q Huddle

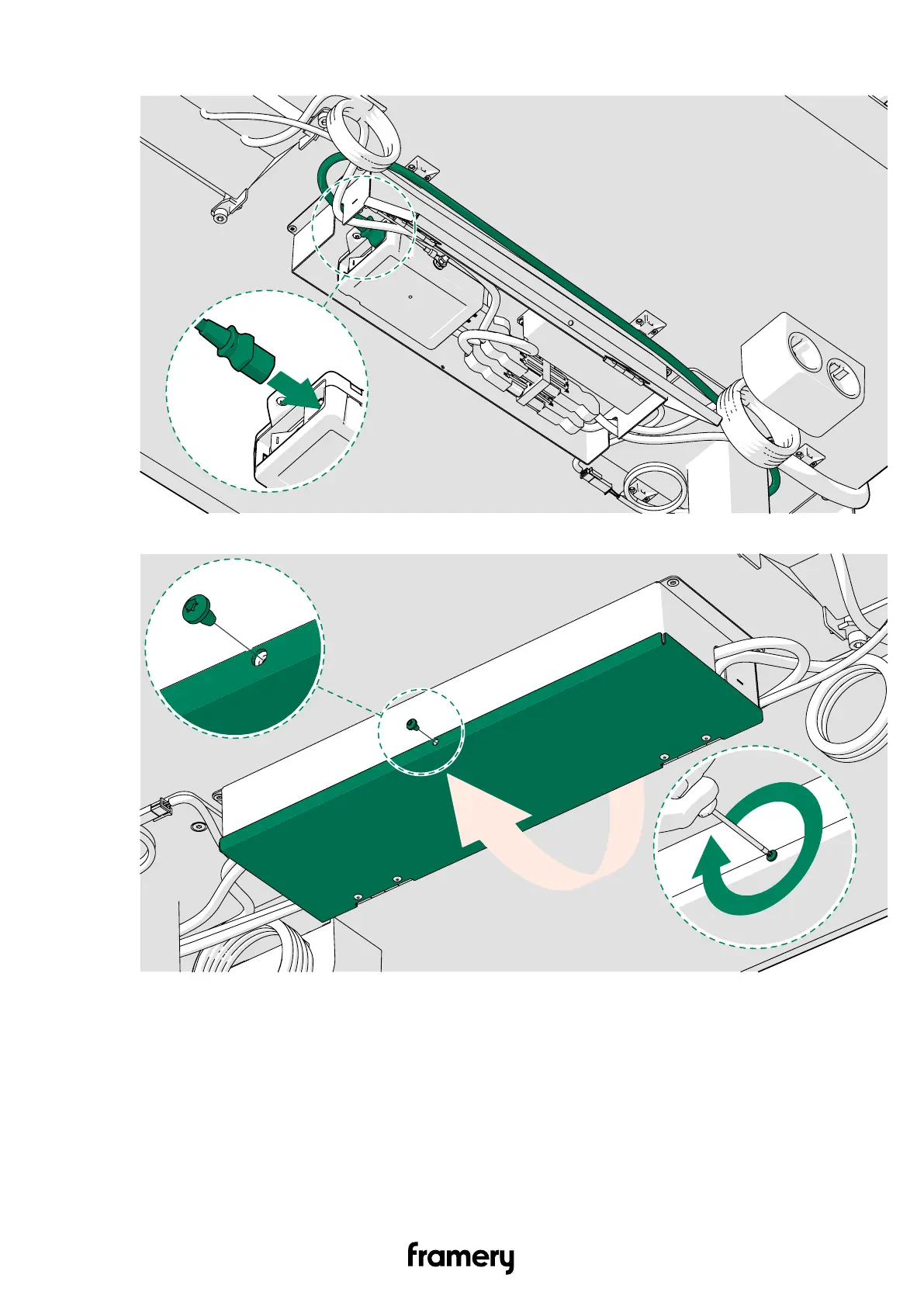

4. Connect the power cord to the power unit.

5. Close the lid of the metal box and install the M4x6 screw.

Installation instructions
