Framery 2Q Huddle

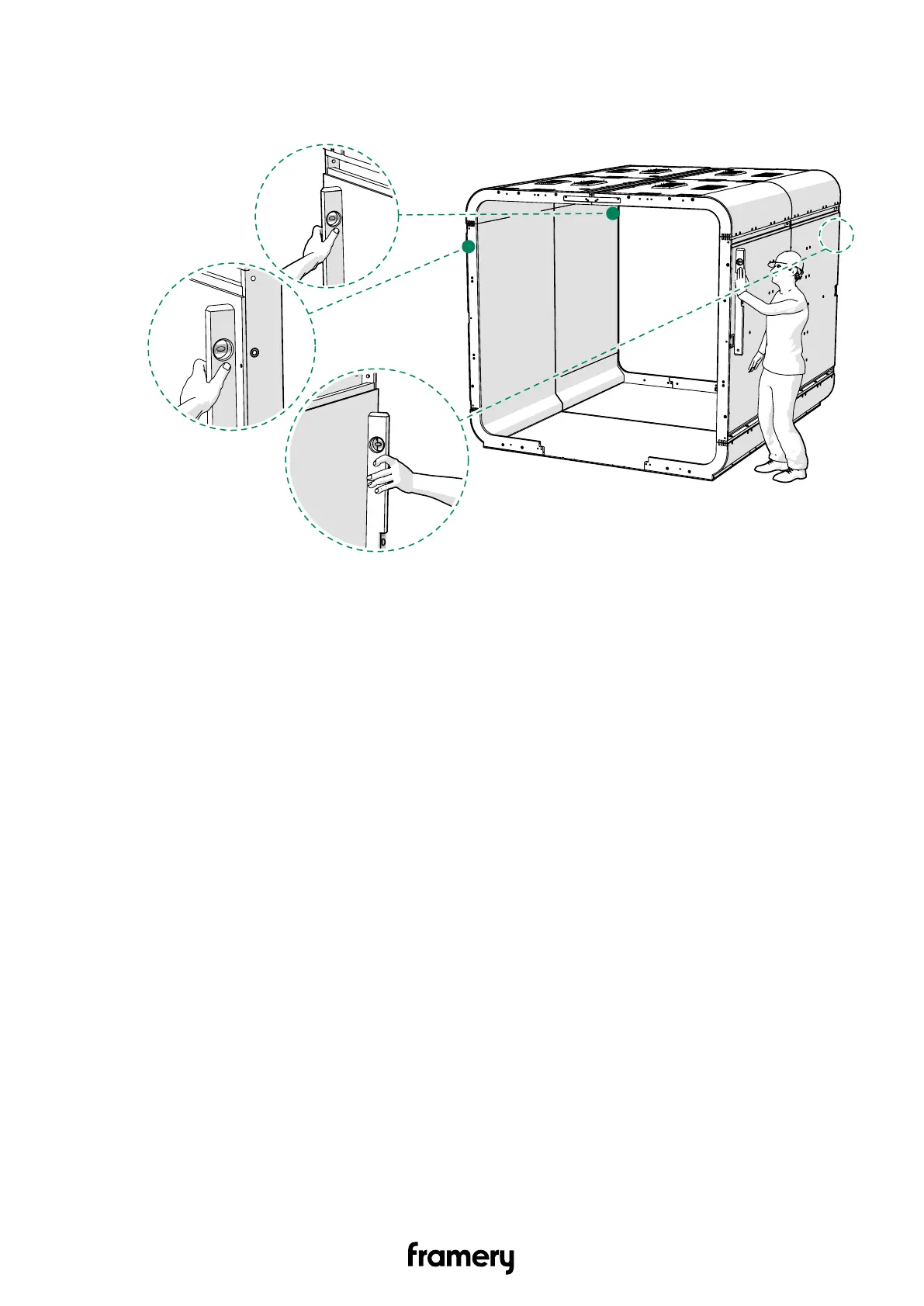

10. Check the straightness of the pod with a spirit level slightly below the roof and wall

module junction in each corner. If the pod is tilted, loosen the bolts and repeat the

straightening procedure.

Installation instructions
