Framery 2Q Huddle
3.

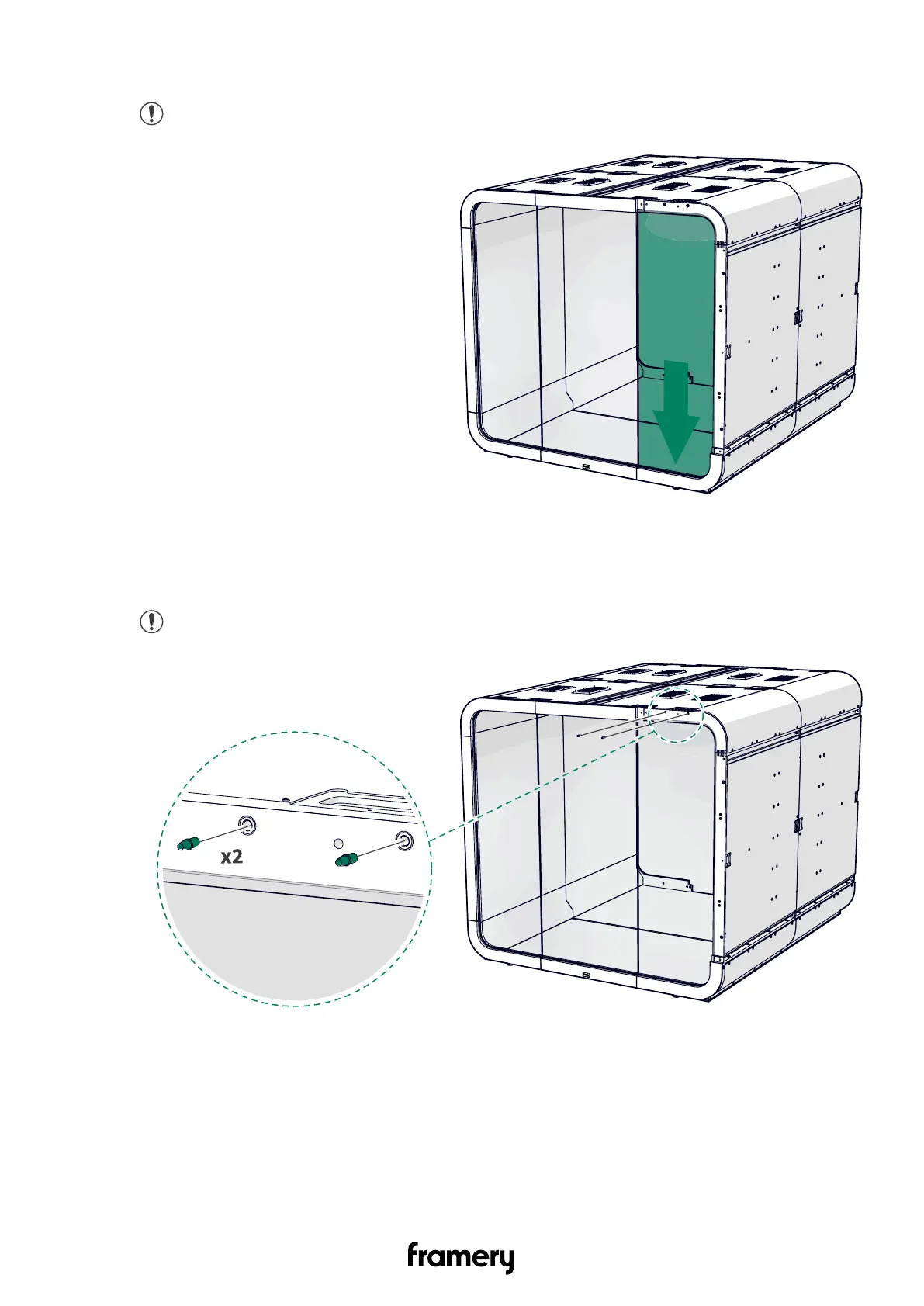

Slide the other side glass into place.
Note:
T
ilt the glass to guide it into the groove.
4.
Install the guide pins (2 pcs).
Note:
Hold the glass in place.
Installation instructions
