Framery 2Q - Page 69

To Next Page

To Previous Page

Framery 2Q Huddle

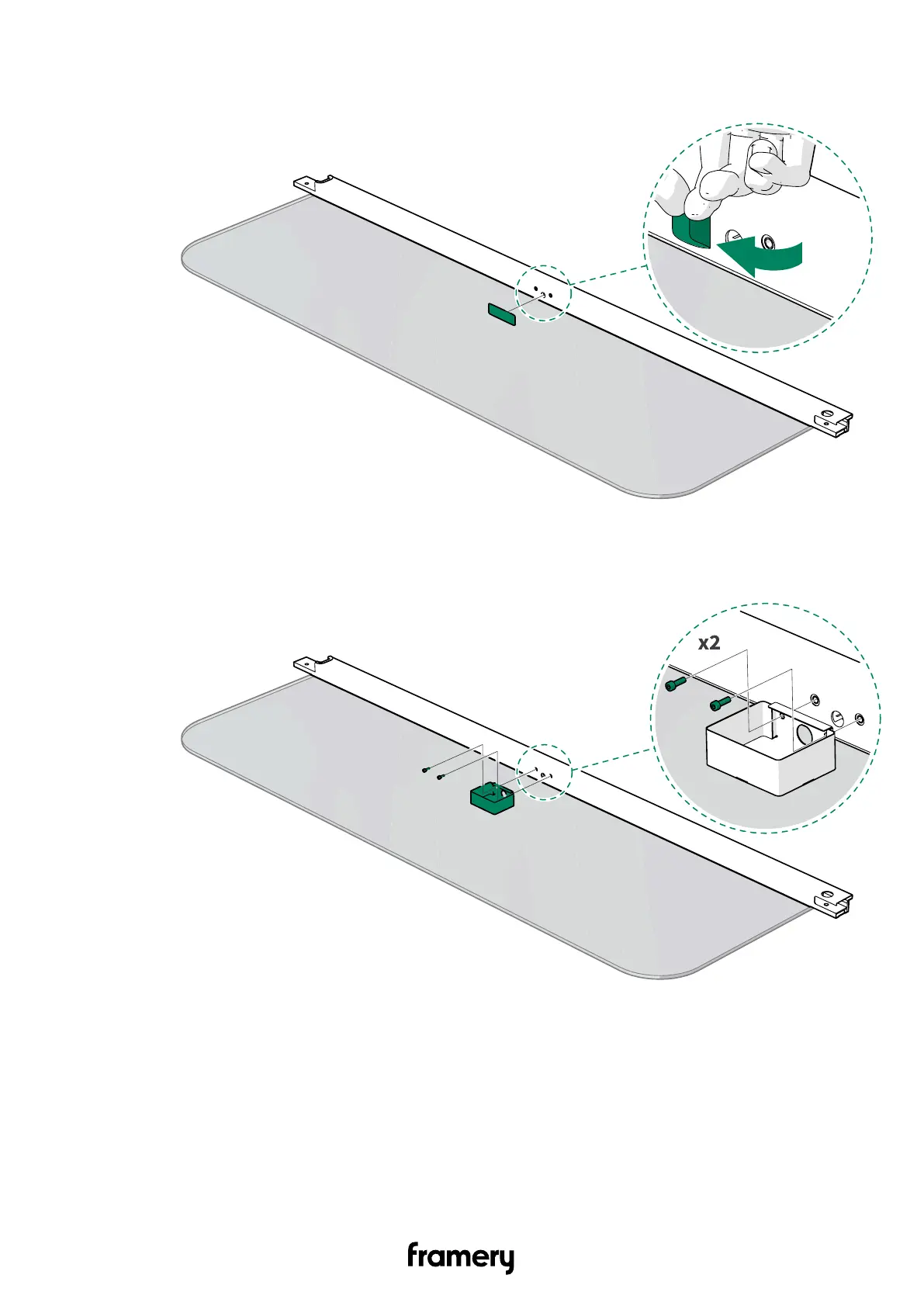

2. Remove the plastic sticker over the holes for the control panel cord and screws on the

strike plate-side glass frame.

3. Install the control panel bracket on the strike plate-side glass frame with M4x10 screws

(2 pcs).

Installation instructions
