Framery 2Q Huddle

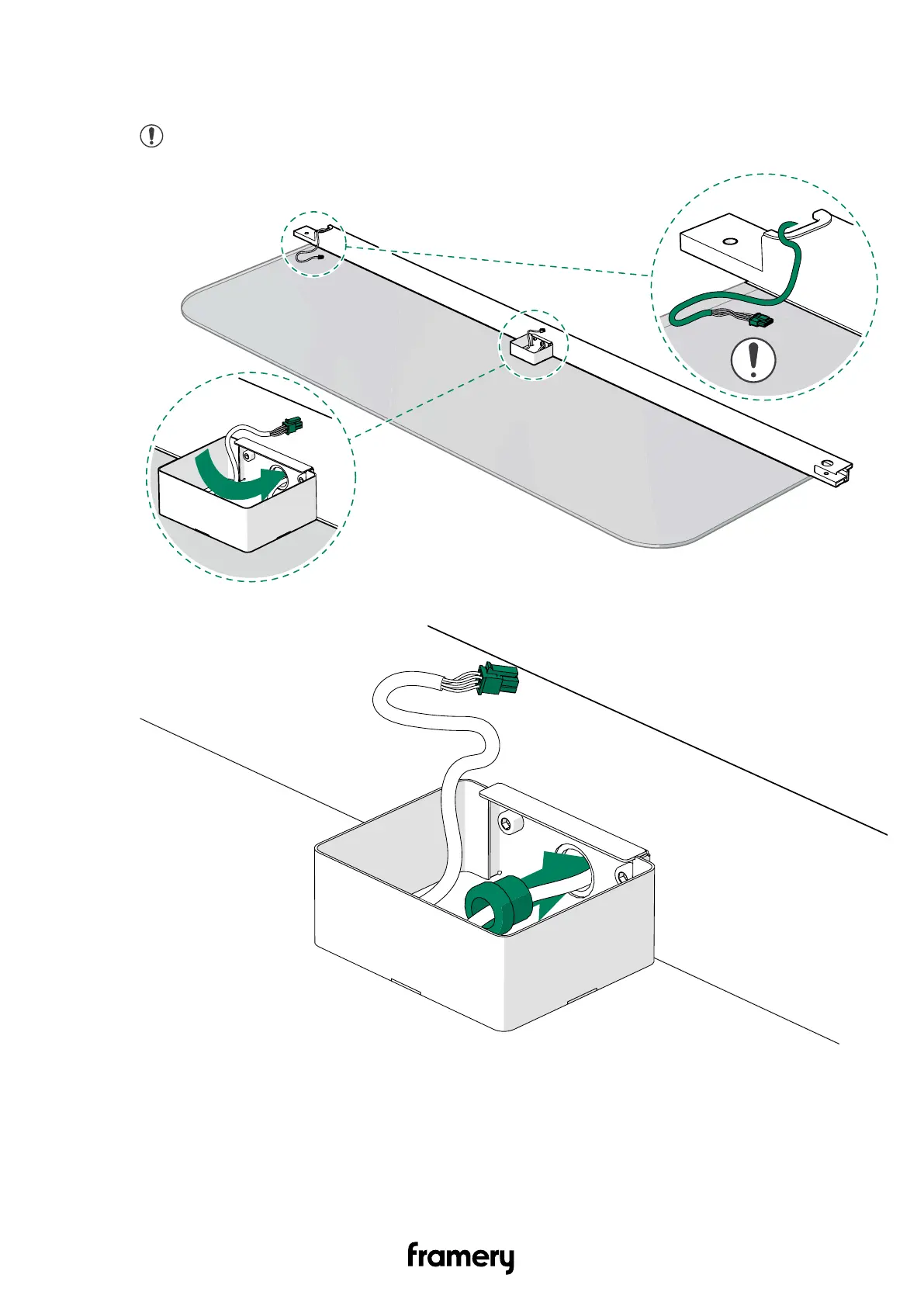

4. Guide the control panel cord in through the hole in the middle of the strike plate-side
glass frame and out through the U-profile on top of the strike plate-side glass frame.
Note: Guide the flat (1x4 pins) end of the control panel cord in first.
5. Install the rubber grommet into the hole in the control panel case.
70
Installation instructions
