Framery 2Q Huddle

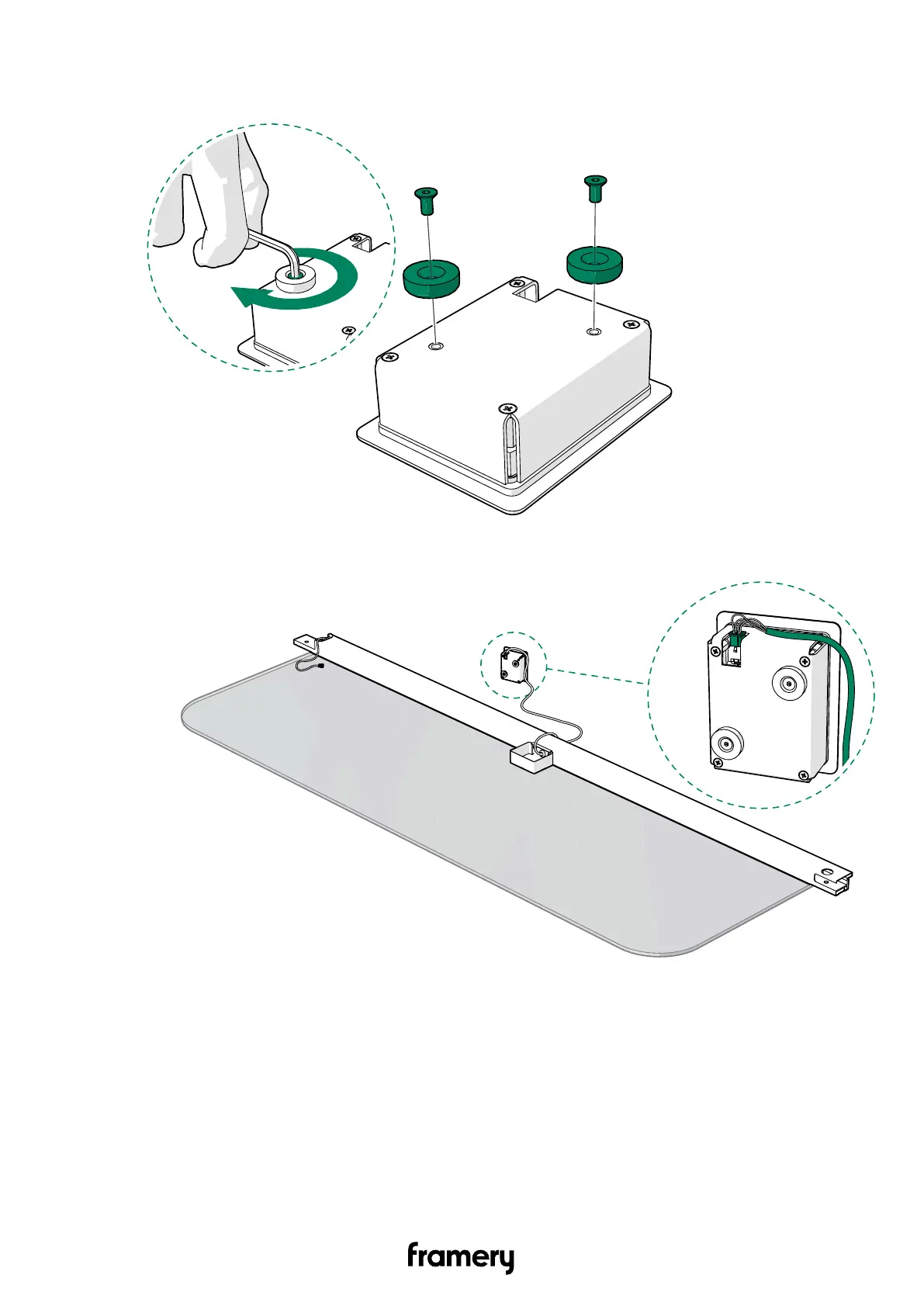

6. Install the magnets (2 pcs) behind the control panel with M4x10 screws (2 pcs). Use a

hand tool to tighten the screws.

7. Connect the control panel cord to the panel.

Installation instructions
