Framery 2Q Huddle

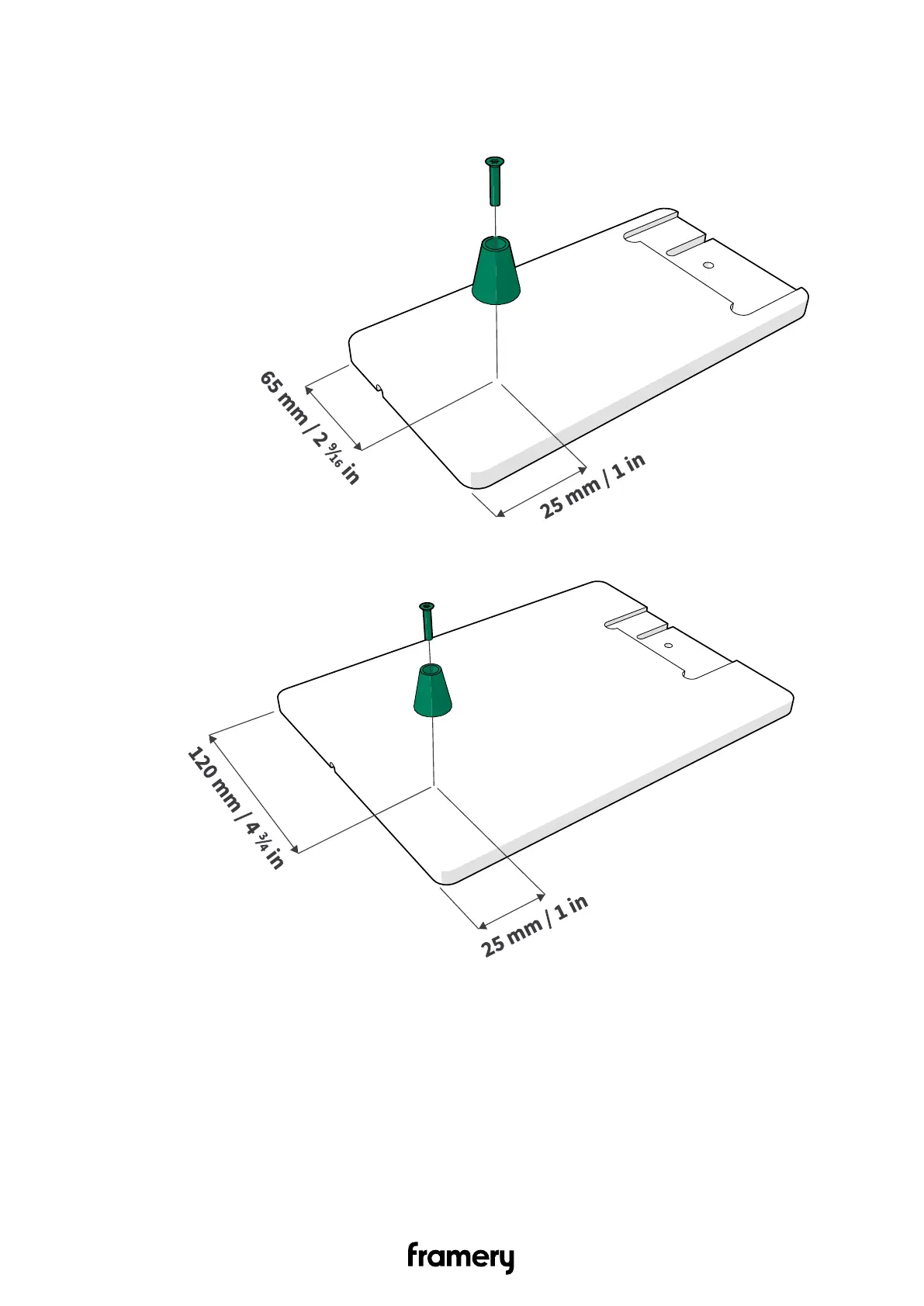

5. Measure the correct place for the rubber spacer on the chosen wooden back plate and

install with a 4x20 screw.

Installation instructions
