Framery 2Q - Page 78

To Next Page

To Previous Page

Framery 2Q Huddle

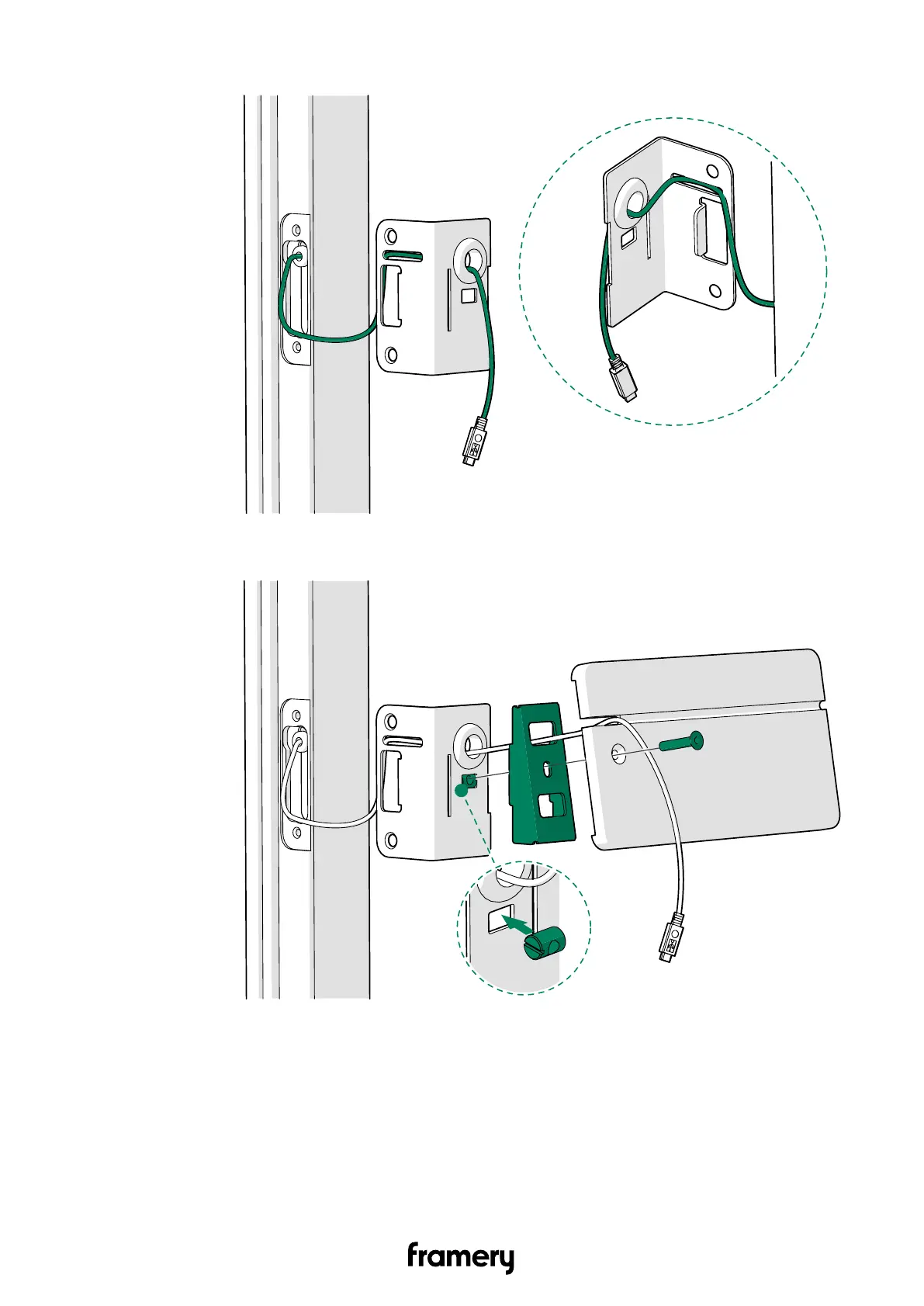

6. Lead the USB cord through the grommet in the strike plate.

7. Assemble the booking system bracket with one M6x30 screw and one M6 barrel nut.

Hold the nut in the slot while tightening the screw.

Installation instructions
