Framery 2Q - Page 82

To Next Page

To Previous Page

Framery 2Q Huddle

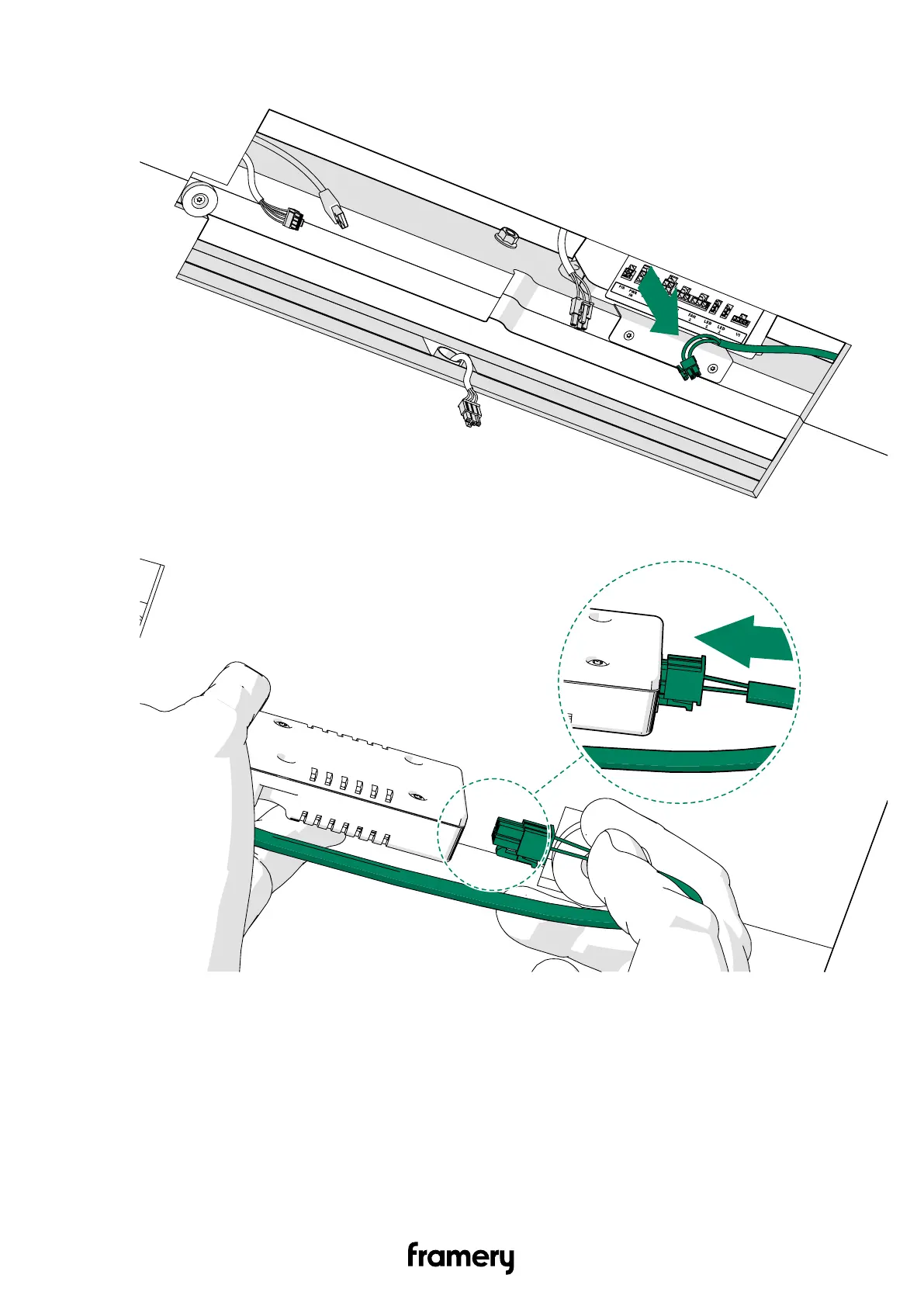

3. Disconnect the DC extension cord from the PWR IN connector of the control unit.

4. Connect the DC splitter cord to the 5V unit.
