Framery 2Q Huddle

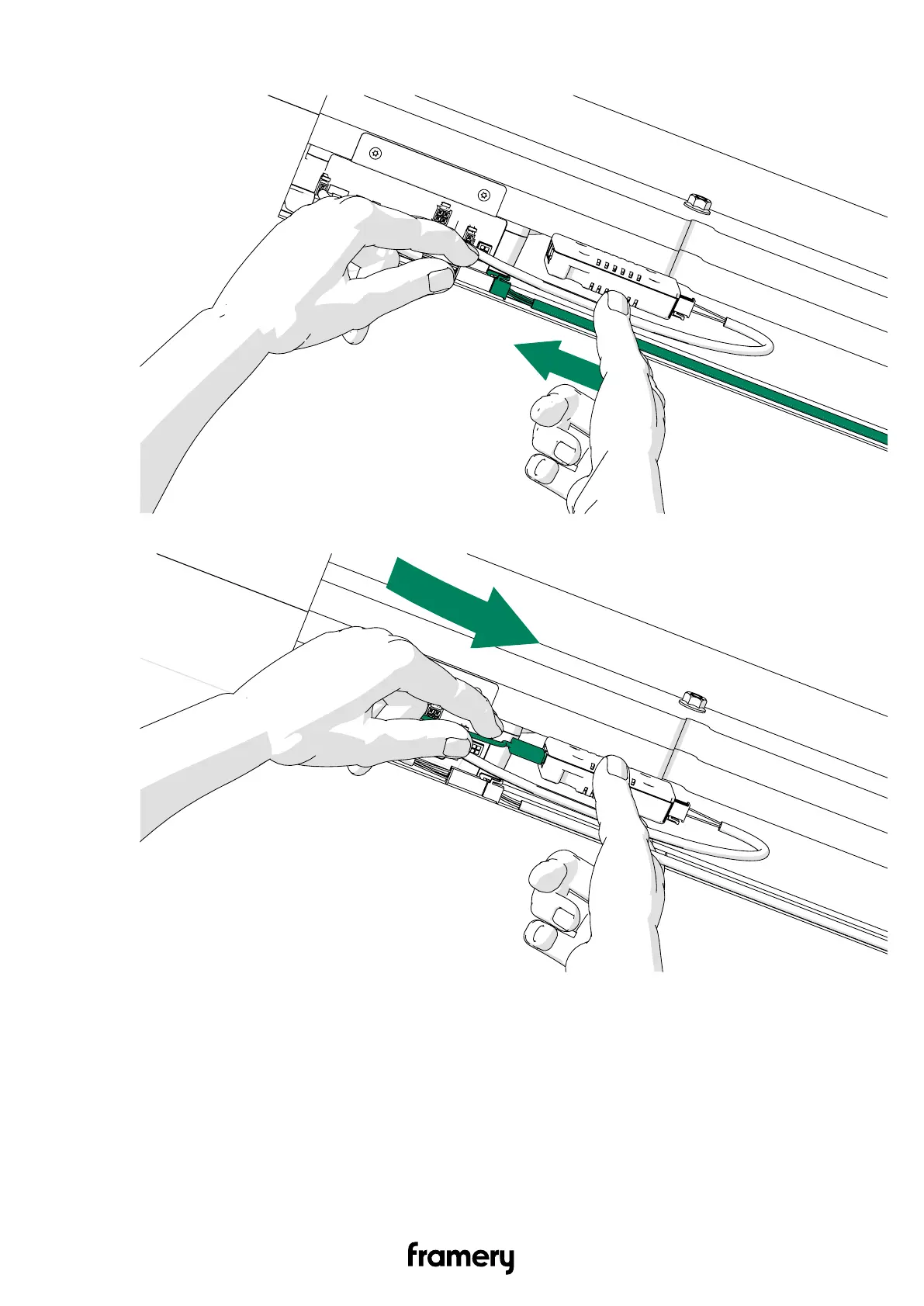

5. Connect the DC extension cord to the DC splitter cord.

6. Connect the USB cord to the USB connector of the 5V unit.

Installation instructions
