1

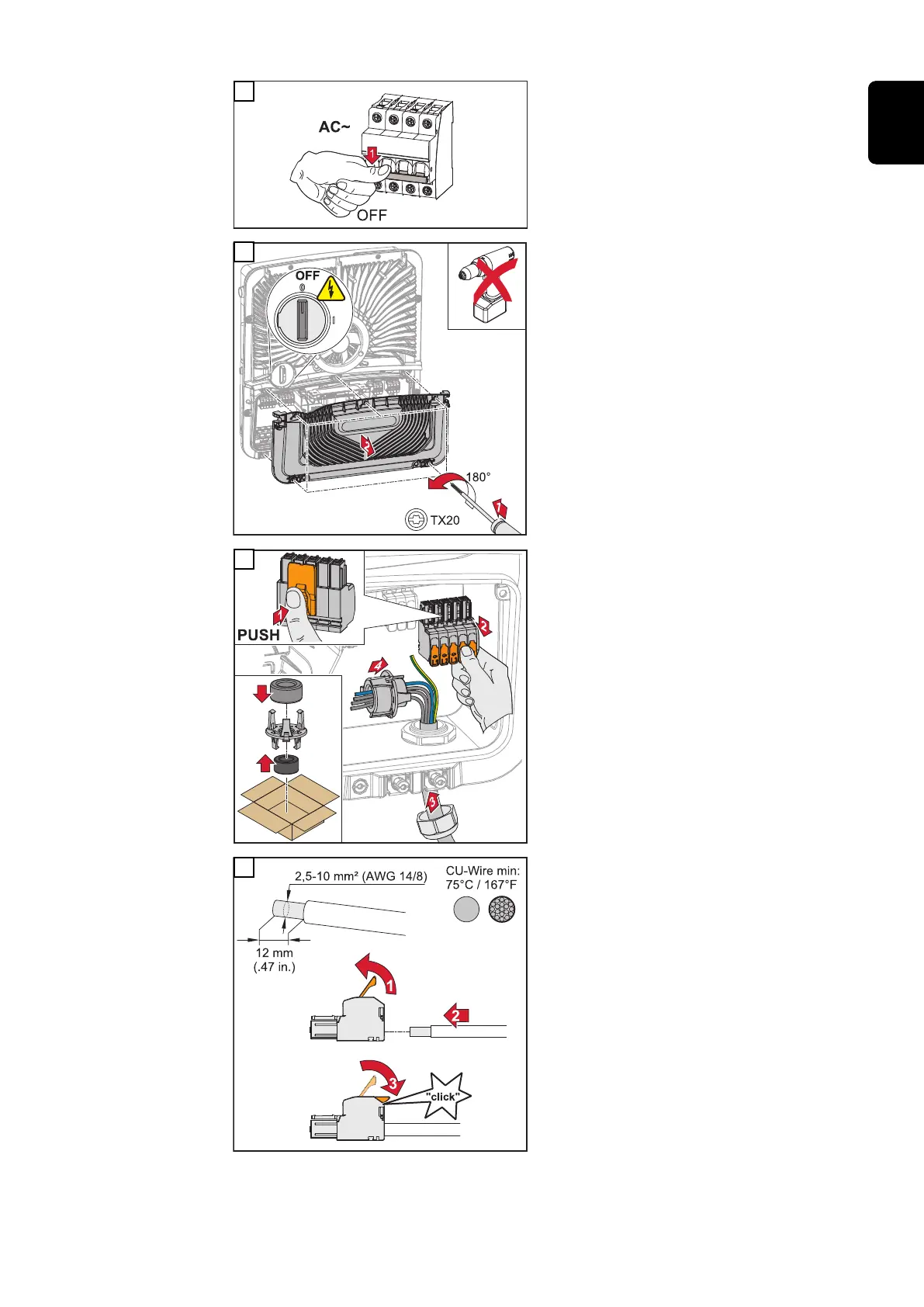

Turn off the automatic circuit breaker.
2
Make sure that the DC disconnector is
in the "Off" switch setting.
Loosen the five screws of the connec-
tion area cover by rotating them 180°
to the left using a screwdriver (TX20).
Remove the connection area cover
from the device.
3
Press the lock on the back of the ter-
minal and remove the AC terminal.
Route the mains cable from below
through the strain-relief device located
on the right side and the ferrite core.
IMPORTANT!
The ground conductor must not be
routed through the ferrite core and
must be connected with a loop so that
if the strain-relief device fails, the
ground conductor is disconnected last.
For more information on the strain-re-
lief device, see chapter Cross section
of the AC cable on page 50.
4
Strip the insulation of the single con-
ductors by 12 mm.
The cable cross section must be selec-
ted in accordance with the instructions
in Permissible cables for the electric-
al connection from page 49.
Lift to open the terminal's operating
lever and insert the stripped single
conductor into the slot provided as far
as it will go. Then close the operating
lever until it engages.
IMPORTANT!
Only one conductor may be connected
to each pin. The AC cables can be con-
nected to the AC terminal without fer-
rules.
