PV 1 less than or equal to 20 A (I
SC PV1
)
PV 2 less than or equal to 20 A (I
SC PV2
)
Module array settings:
PV 1: ON
PV 2: ON

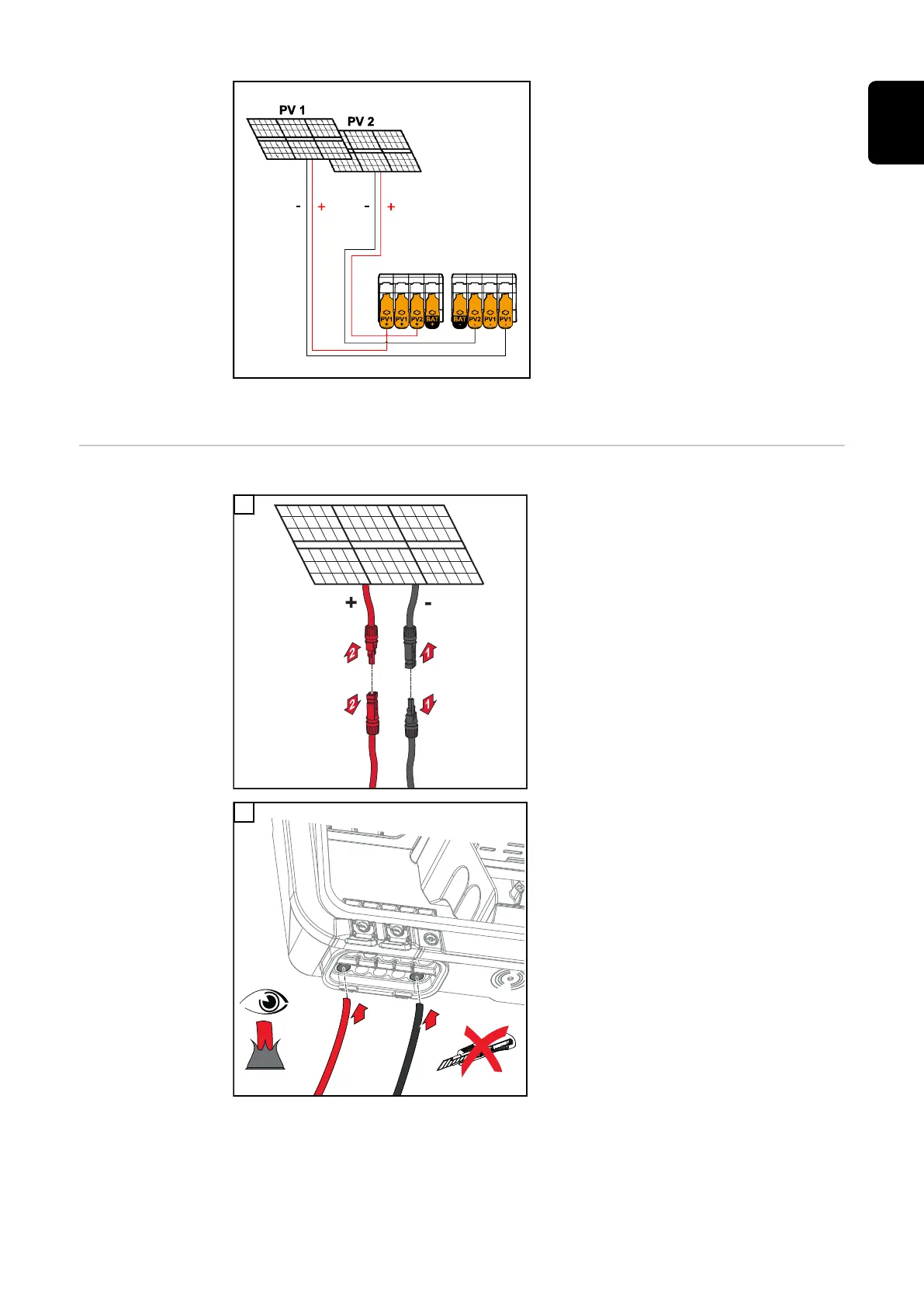

Connecting the
solar module
strings to the in-
verter
1
2
Push the DC cables through the DC
bushings by hand.
IMPORTANT!
Before stripping the insulation, push
the cables through the DC bushings to
prevent individual wires being bent or
broken.
