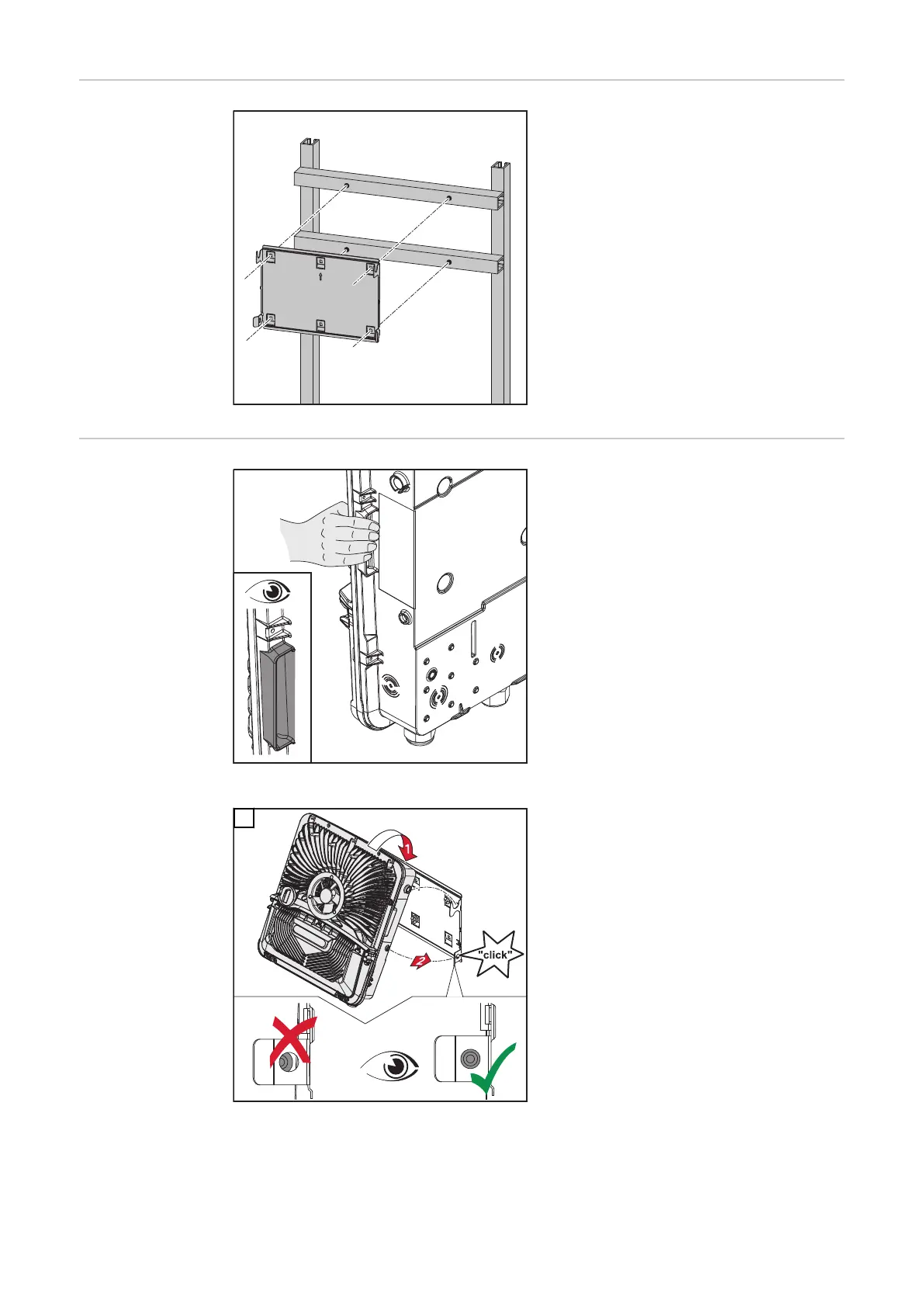

Attaching the
mounting brack-
et to mounting
rails
IMPORTANT!
The mounting bracket must be affixed
at a minimum of four points.
Attaching the in-
verter to the
mounting brack-
et
There are integrated grips on the side
of the inverter which facilitate lifting/
attaching.
1
Clip the inverter into the mounting
bracket from above. The connections
must point downwards.
Push the lower part of the inverter into
the snap-in tabs of the mounting
bracket until the inverter audibly clicks
into place on both sides.
Check that the inverter is correctly po-
sitioned on both sides.
