Fronius Symo GEN24 3.0

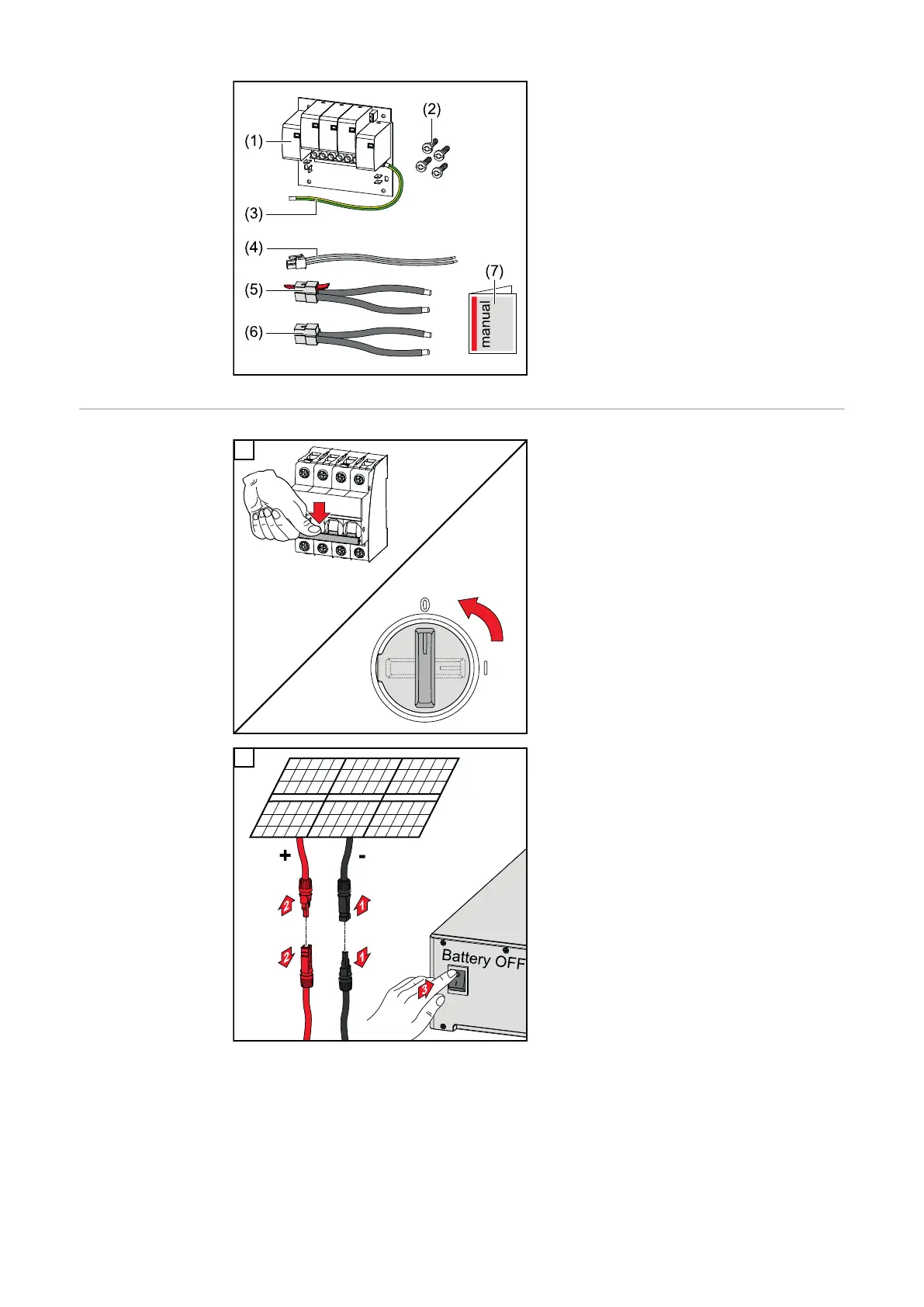

1.
PC board
2.
4 TX20 screws
3.
Ground conductor
4.
2-pin signal cable
5.
PV cable
6.
PV+ cable
7.
User Information
De-energising
the inverter
AC~
OFF
1
ON
OFF
2
1
Turn off the automatic circuit breaker.
Set the DC disconnector to the "Off"
switch position.
2
Disconnect connections from the solar
module strings (+/-). Switch off the
battery connected to the inverter.
Wait for the capacitors of the inverter
to discharge (2 minutes).
