1 2
3

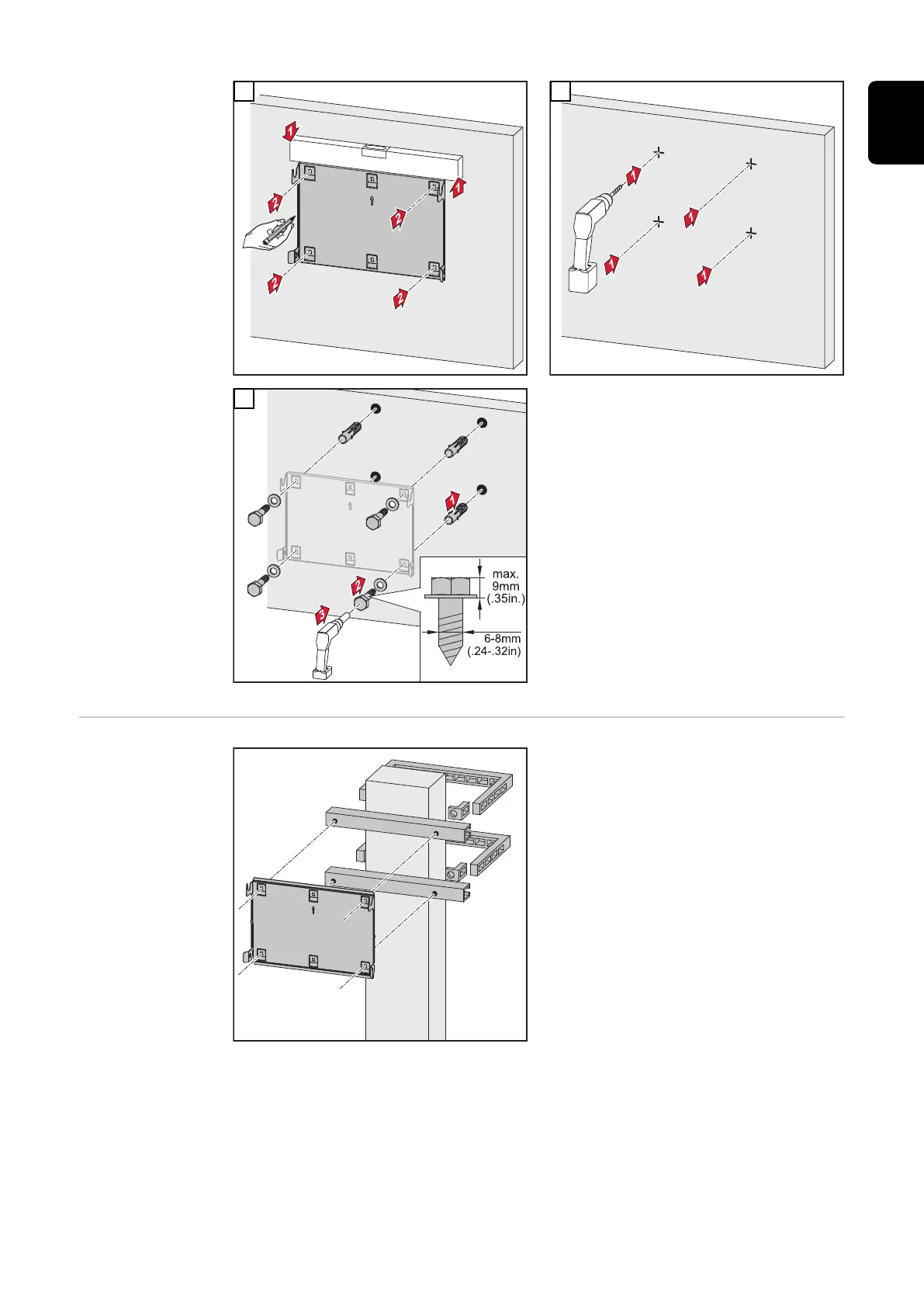

Installing the
mounting brack-
et on a mast or
beam
When installing the inverter on a mast
or beam, Fronius recommends using
the "Pole clamp" (order no. SZ
2584.000) mounting kit from Rittal
GmbH.
The "Pole clamp" kit covers the follow-
ing dimensions:
-
Rectangular mast or beam with a
side length of 50-150 mm
(1.97-5.91 inches)
-
Round mast or beam with a dia-
meter of 40-190 mm
(1.57-7.48 inches)
47
EN
