Installation
CAUTION!
Danger due to insufficiently dimensioned ground conductor.
Damage to the inverter due to thermal overload can result.
▶
The national standards and guidelines must be observed for dimensioning
the ground conductor.

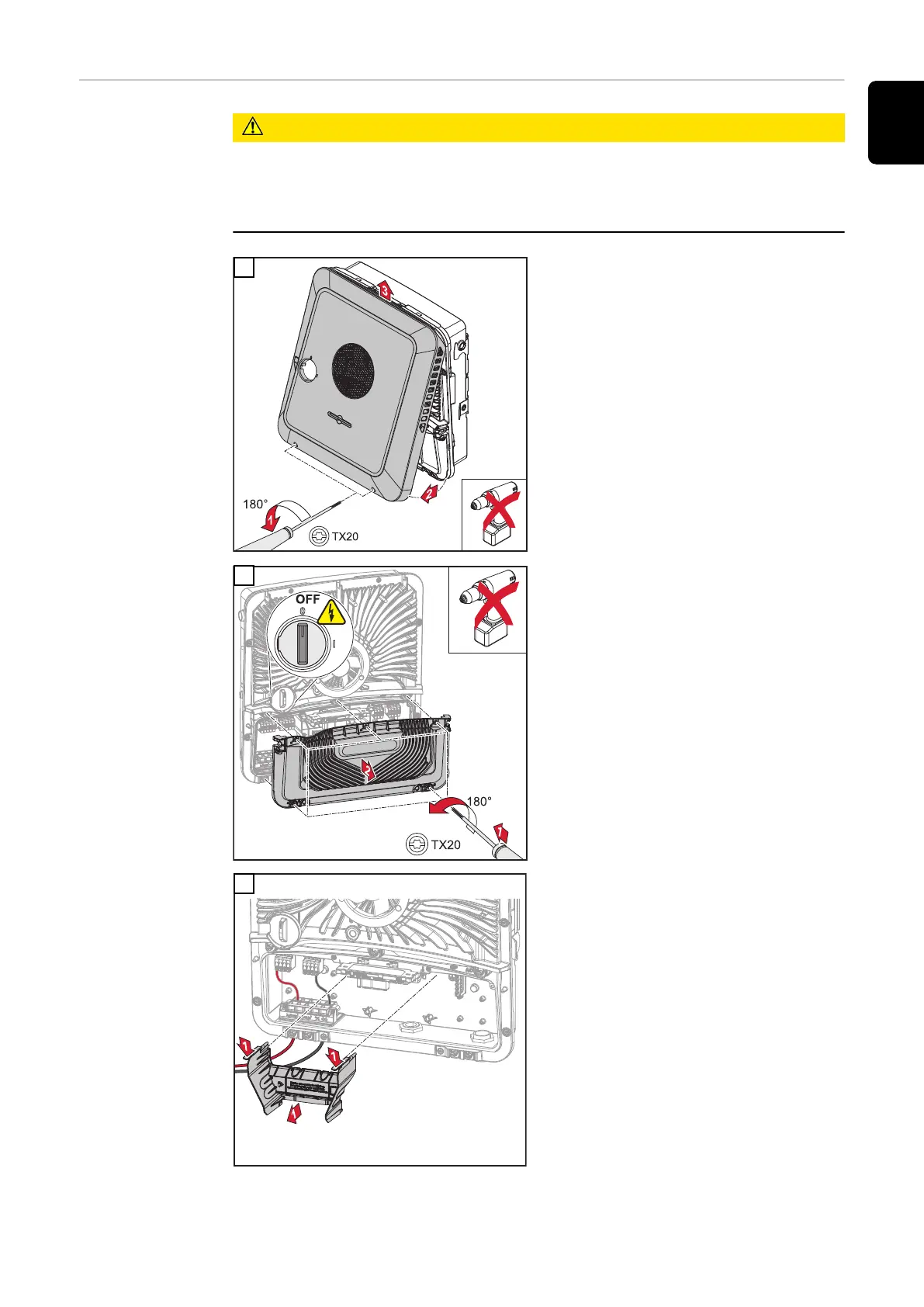

1
Loosen the two screws on the under-
side of the housing cover by rotating
them 180° to the left using a screw-
driver (TX20). Then lift the housing
cover away from the inverter at the
bottom and detach from above.
2
Loosen the five screws of the connec-
tion area cover by rotating them 180°
to the left using a screwdriver (TX20).
Remove the connection area cover
from the device.
3
Remove the connection area divider by
pressing the snap tabs.
