mm indicator
lights up when the Fdb setup parameter has been selected

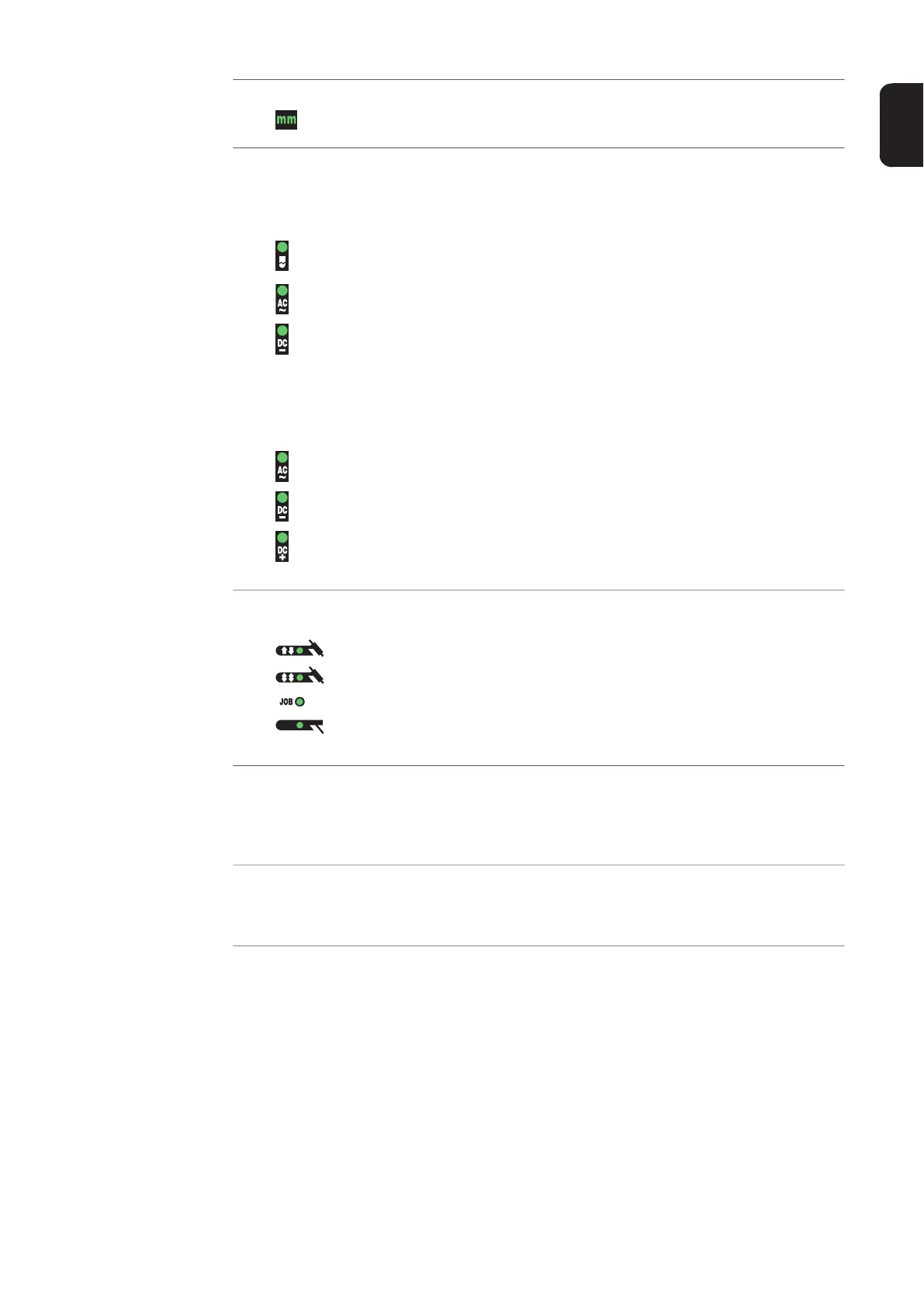

(7) Process button
for selecting the welding process depending on the mode that has been chosen
2-step mode/4-step mode:
automatic cap-shaping;
only available in conjunction with TIG AC welding process
TIG AC welding process
TIG DC- welding process
Job mode:
The welding process stored for the current job is displayed.
Manual metal arc welding mode:
MMA AC welding process
MMA DC- welding process
MMA DC+ welding process
When a welding process is selected, the LED on the relevant symbol lights up.
(8) Mode button
for selecting the mode
2-step mode
4-step mode
Job mode
MMA welding
When a mode is selected, the LED on the relevant symbol lights up.
(9) Right parameter selection button
for selecting welding parameters within the welding parameters overview (11)
When a welding parameter is selected, the LED on the relevant parameter symbol
lights up.
(10) Gas-test button
to set the required shielding gas flow rate on the pressure regulator
After pressing this button, shielding gas flows for 30 seconds. Press the button
again to stop the gas flow prematurely.
