X20/X20S and Ethos v1.0.11 User Manual
During >= '0.0s

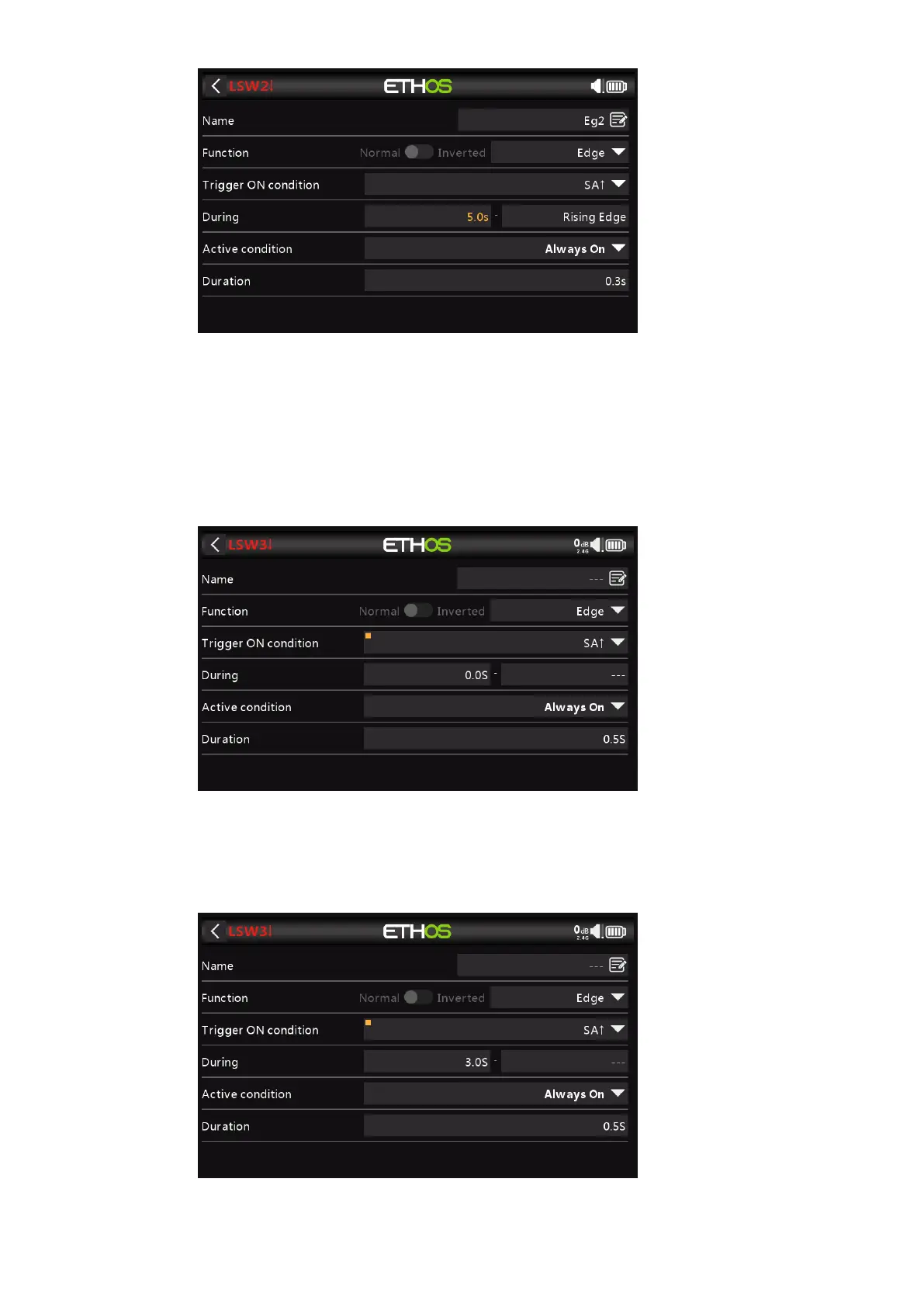

During is in two parts [t1:t2]. With t1 of During a positive value (say 5.0s) and
t2= 'Rising Edge', the logic switch becomes True (for the period specified in
'Duration') 5 seconds after the 'Trigger On Condition' transitions from False to
True. Any additional 'spikes' during the t1 period are ignored.
Falling Edge option
During = '0.0s'
During is in two parts [t1:t2]. With During t1=0.0s and t2= '---' (Falling Edge),
the logic switch becomes True (for the period specified in 'Duration') the instant
the 'Trigger On Condition' transitions from True to False.
