X20/X20S and Ethos v1.0.11 User Manual

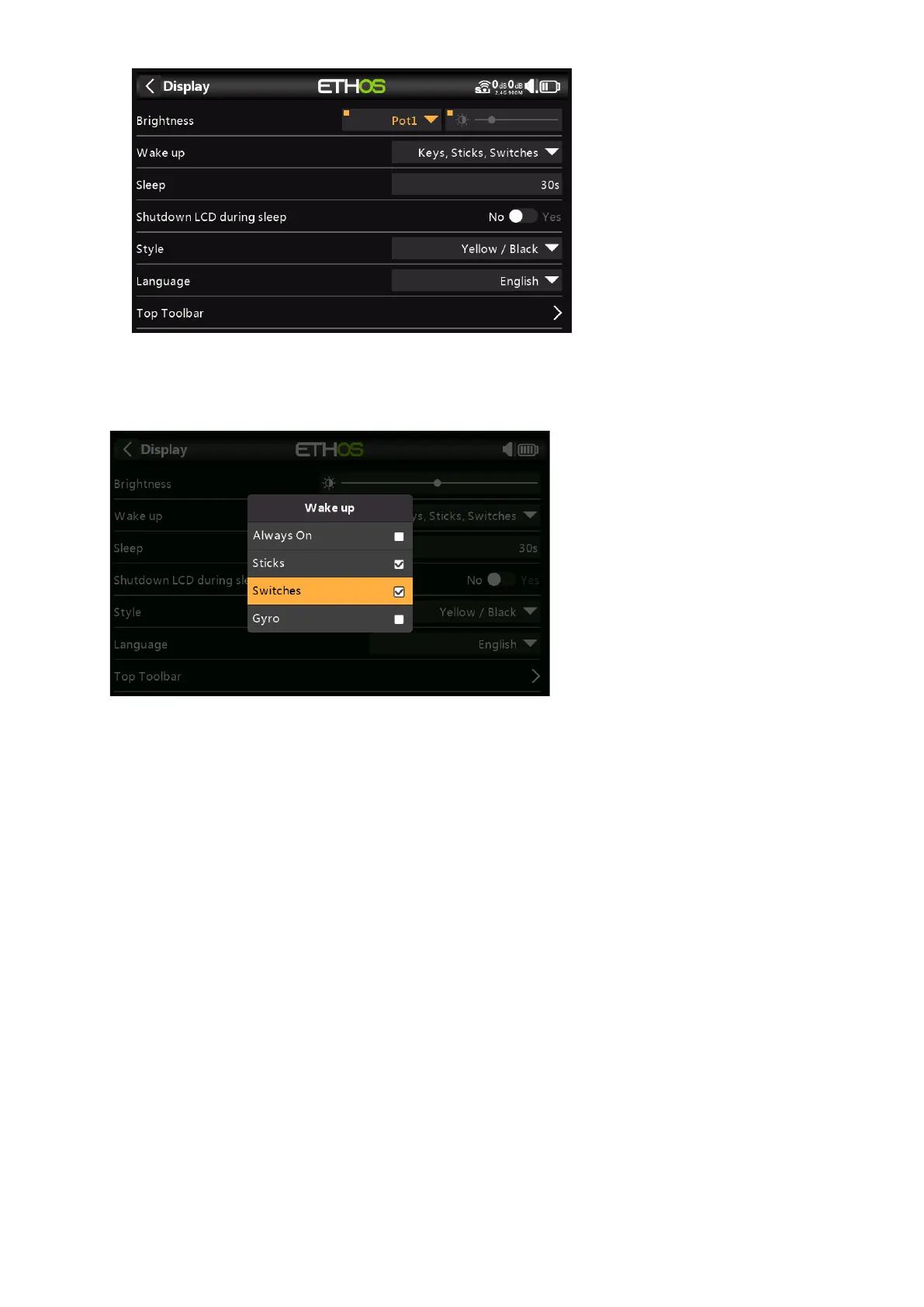

The above example shows brightness being controlled via Pot 1.
Wake up
The screen backlight can be woken from the sleep state in accordance with one or more of
the following options:
Always On
The backlight stays on permanently.
Sticks
The backlight turns on when sticks or keys are operated.
Switches
The backlight turns on when switches or keys are operated.
Gyro
The backlight turns on when you tilt the radio or when keys are operated.
Note that more than one option may be enabled.
Sleep
The length of inactivity before the backlight is turned off.
Shutdown LCD during sleeping
When enabled the LCD will go totally dark (not visible) during sleep mode, otherwise the
LCD will still have some brightness so the display remains visible.
