X20/X20S and Ethos v1.0.11 User Manual

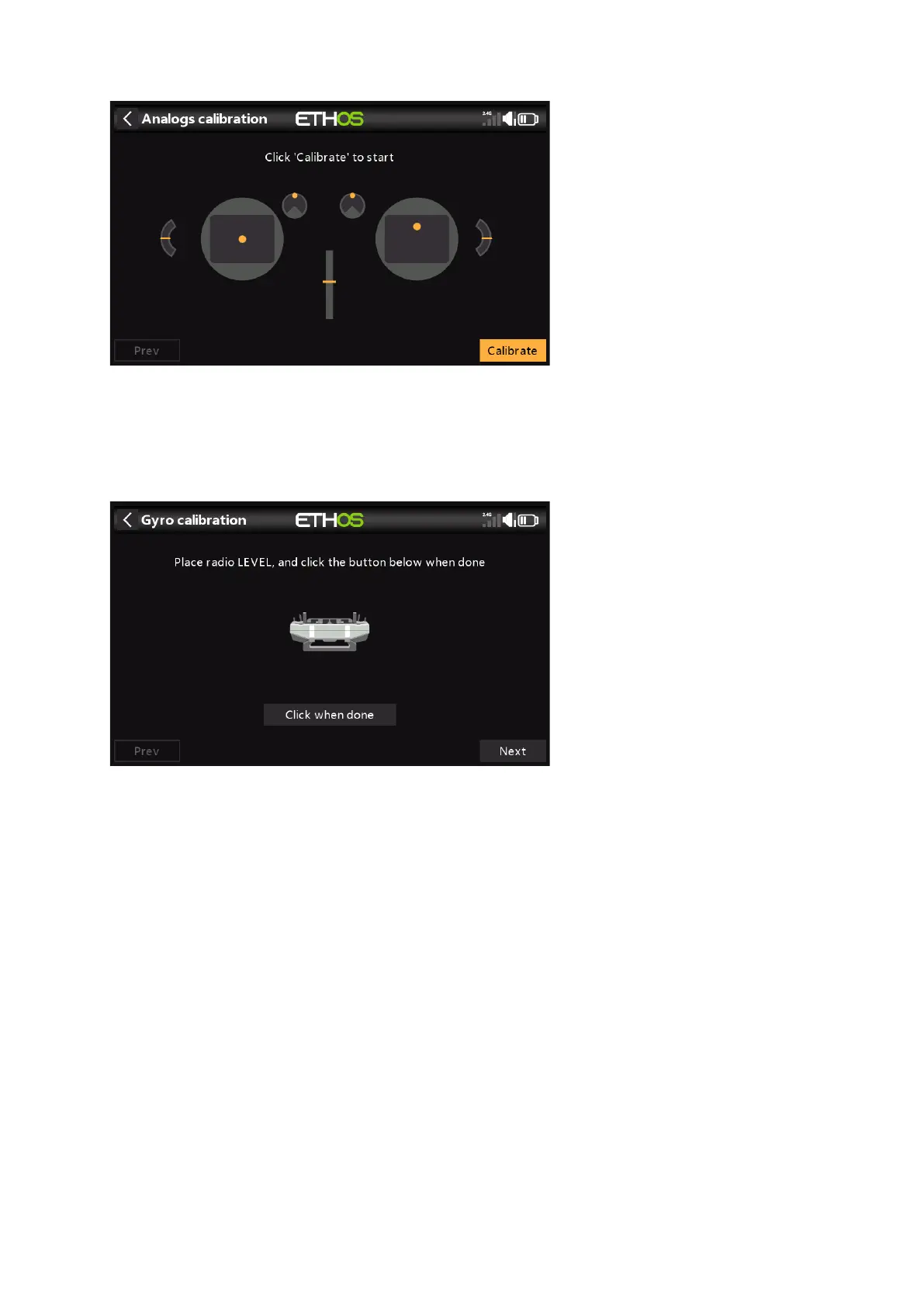

Analogs calibration
Analogs calibration is be performed so that the radio knows exactly where the centers and
limits of each gimbal, pot, and slider are. It is automatically run at initial startup or after a
firmware upgrade. It should be repeated after replacement of a gimbal, pot or slider.
Gyro calibration
Gyro calibration can be performed so that the gyro sensor outputs respond correctly to
tilting the radio. For example, the radio 'level' position would be the angle at which you
normally hold the radio.
Analogs Filter
The Analog to Digital Converter filter can be turned on/off with this setting. The default
value is ON. This may improve jitter around stick centre.
