X20/X20S and Ethos v1.0.11 User Manual

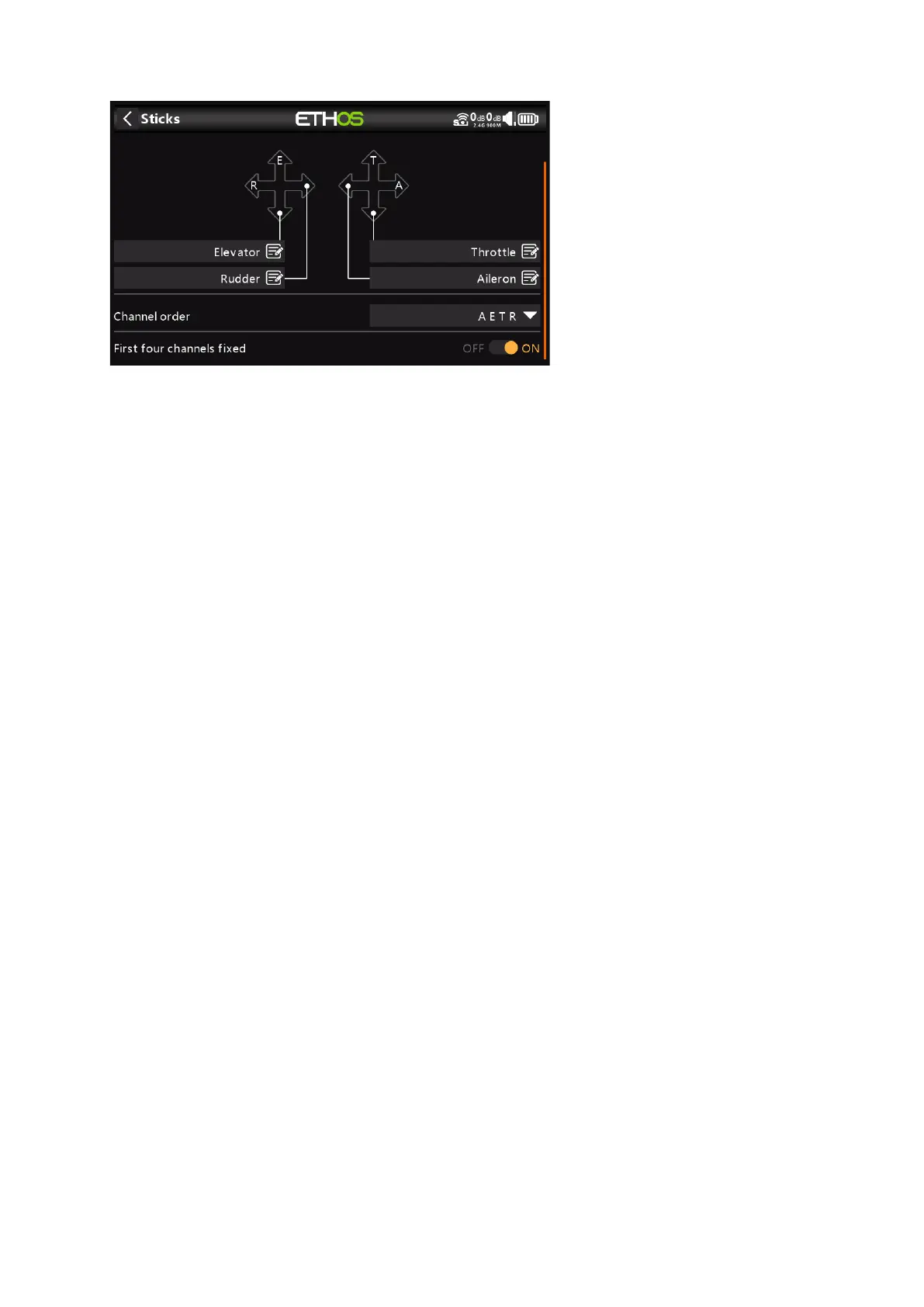

First four channels fixed
When this option is enabled, then channel grouping will not occur on the first four channels.
If the channel order is AETR, then the wizard will create a model suited to the SRx stabilized
receivers. For example, a model with 2 Ailerons, 1 Elevator, 1 Motor, 1 Rudder and 2 Flaps
will be created with a channel order of AETRAFF. If this option is not enabled, the channel
order would be AAETRFF.
