X20/X20S and Ethos v1.0.11 User Manual

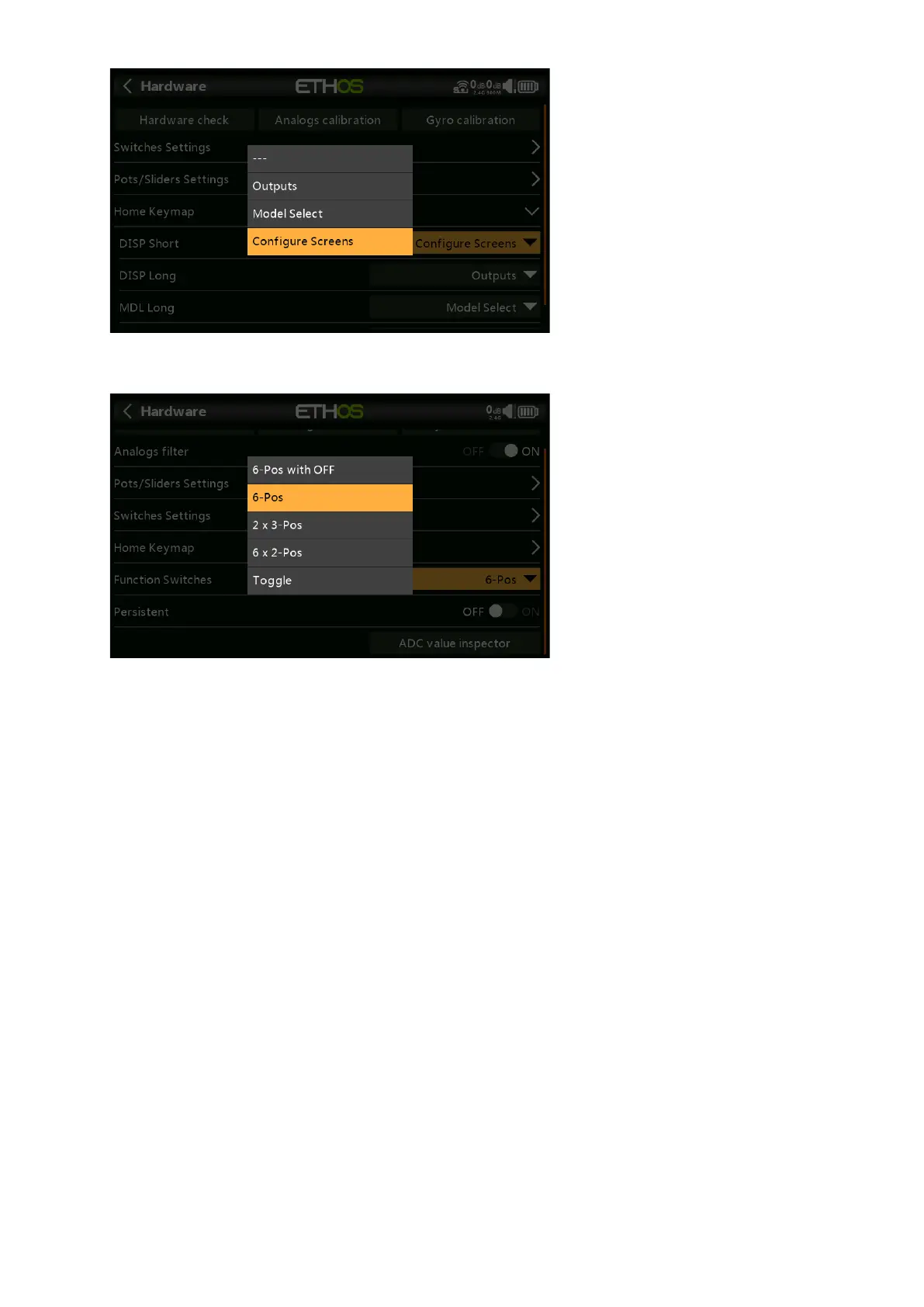

Function Switches
The six Function Switches are available wherever 'Active Condition' parameters are found.
They may be configured as follows:
6-Pos with OFF
Pressing any function switch will latch that switch ON. However, pressing a switch that is
already ON a second time will turn it off, leaving all six function switches OFF.
6-POS
Pressing any function switch will latch that switch ON until a different function switch is
pressed to latch the newly pressed switch ON.
2 x 3-Pos
Breaks the 6 function switches into two groups of 3. Each group can have one switch ON.
6 x 2-Pos
Breaks the 6 function switches into 6 latching switches. Each switch can be ON or OFF.
Toggle
Breaks the 6 function switches into 6 toggle (i.e. momentary) switches. Each switch is
ON while depressed.
