X20/X20S and Ethos v1.0.11 User Manual

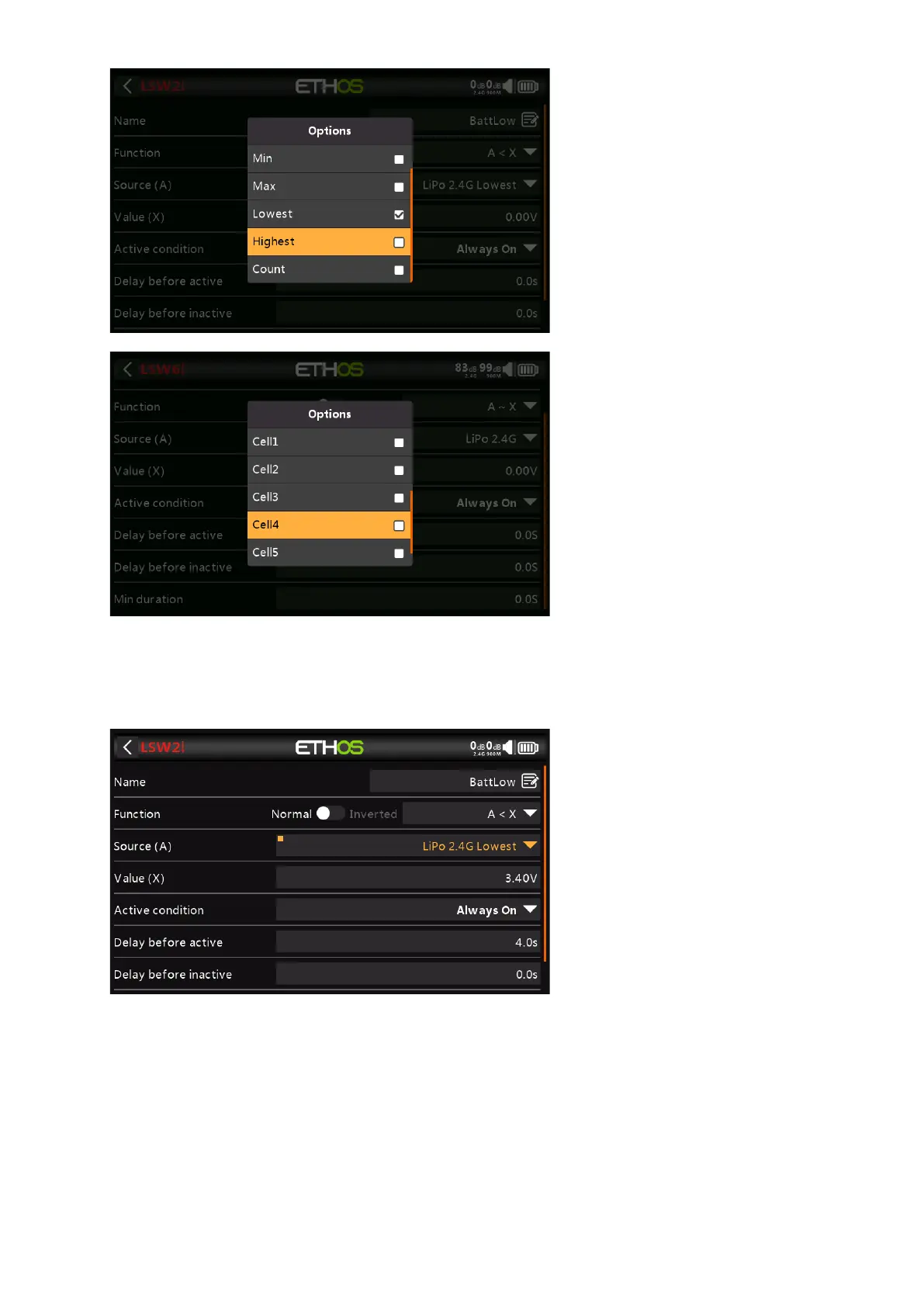

With the Lipo sensor highlighted, long-press the [ENT] key to bring up an options dialog.
Select the Lowest from the list of Lipo sensor options, which include Min pack voltage, Max
pack voltage, Lowest cell voltage, Highest cell voltage, cell Count and the individual cell
voltages.
Set the Value to something like 3.4V, and 'Delay before active' to 4 seconds. The Logical
Switch will become True/Active when the lowest cell voltage remains below 3.4 per cell for 4
seconds or more. A threshold of 3.4V under load will recover to around 3.7V when no longer
under load.
