X20/X20S and Ethos v1.0.11 User Manual
Low Position Trim
For glow and gas engines 'Low position trim' is used to adjust the idle speed. The idle
speed can vary depending on the weather, etc., so having a way to adjust the idle
speed without impacting the full throttle position is important.

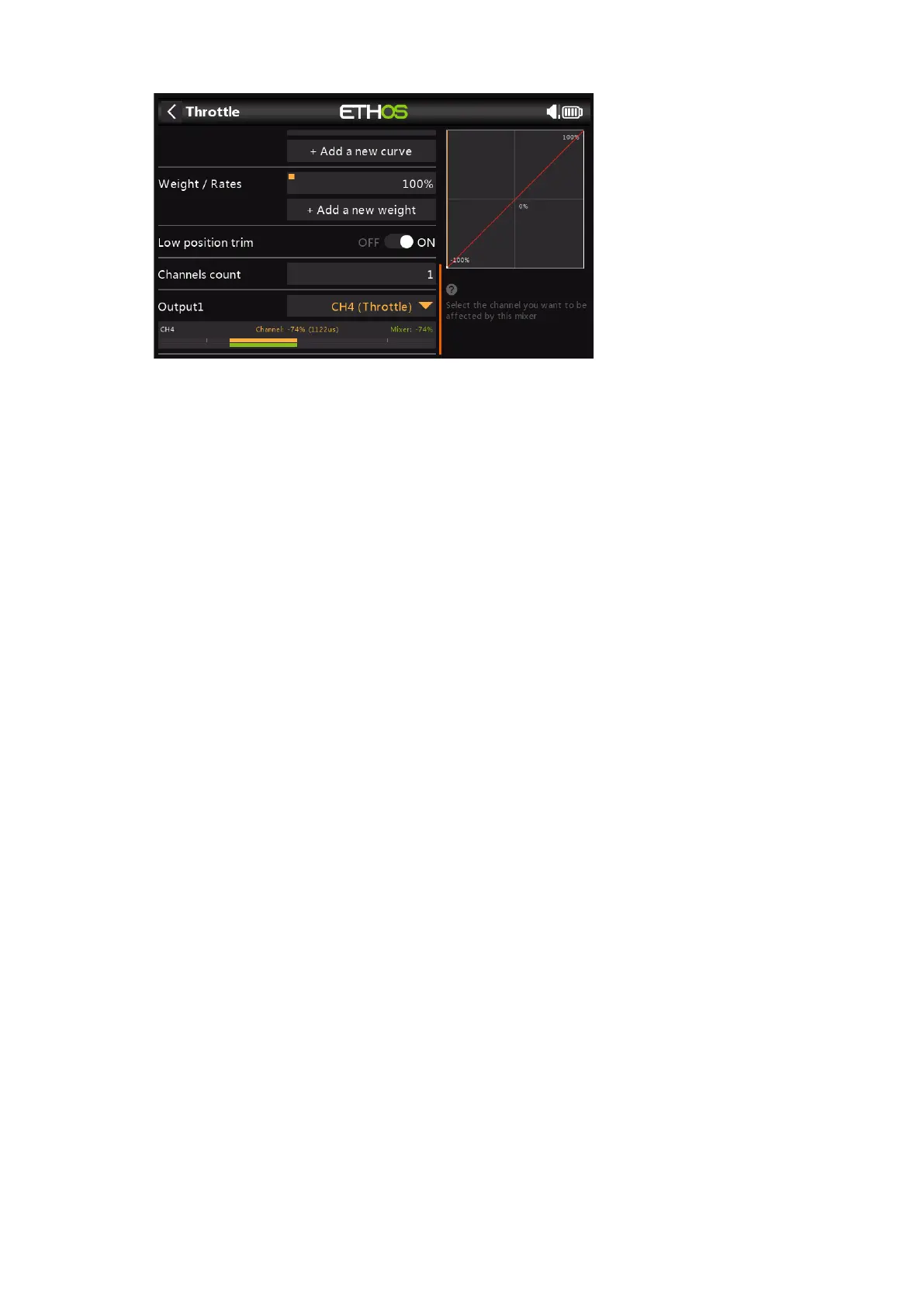

If 'Low position trim' is enabled, the throttle channel goes to an idle position of -75%
when the throttle stick is at the low position (please refer to the channel bar display at
the bottom of the screenshot above). The throttle trim lever can then be used to
adjust the idle speed between -100% and -50%. Throttle Cut can then be configured
to cut the engine with a switch.
