X20/X20S and Ethos v1.0.11 User Manual

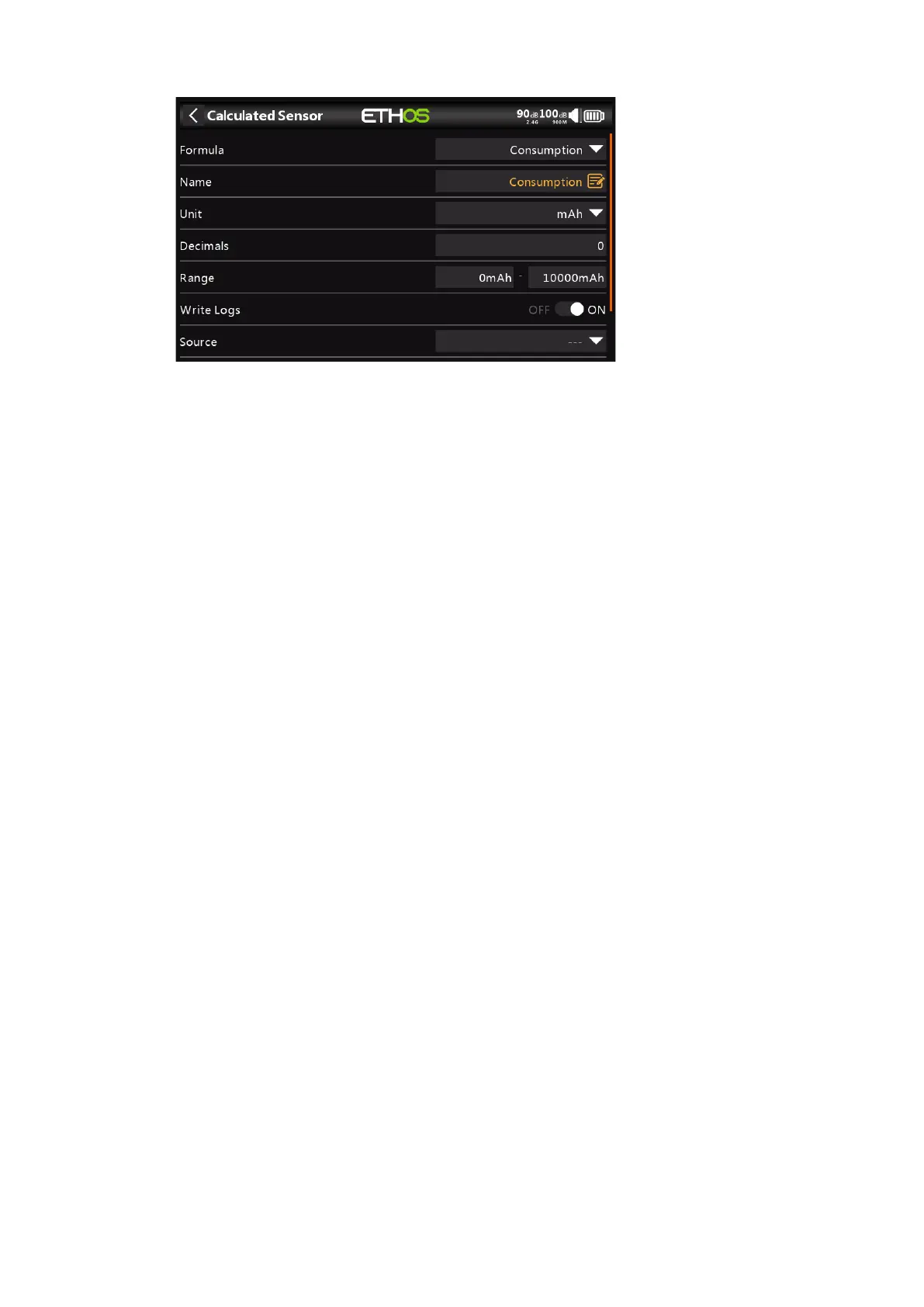

Consumption Sensor
The Consumption sensor allows the energy consumed by your motor to be
calculated from a current sensor such as the FAS series.
Name
The sensor name, which may be edited.
Unit
The measurement may be in mAh or Ah.
Decimals
The display may be to 0, 1, 2 or 3 decimals.
Range
The range may be from 0 up to a maximum of 1000Ah.
Write Logs
Logs will be written to the SD card in the Logs folder if enabled.
Source
After discovering sensors, select your current sensor.
Persistent
Persistent allows storing the sensor value in memory when the radio is powered
off or model is changed, and will be reloaded next time the model is used.
Reset
Allows the sensor to be reset.
