Control Panel
2-7

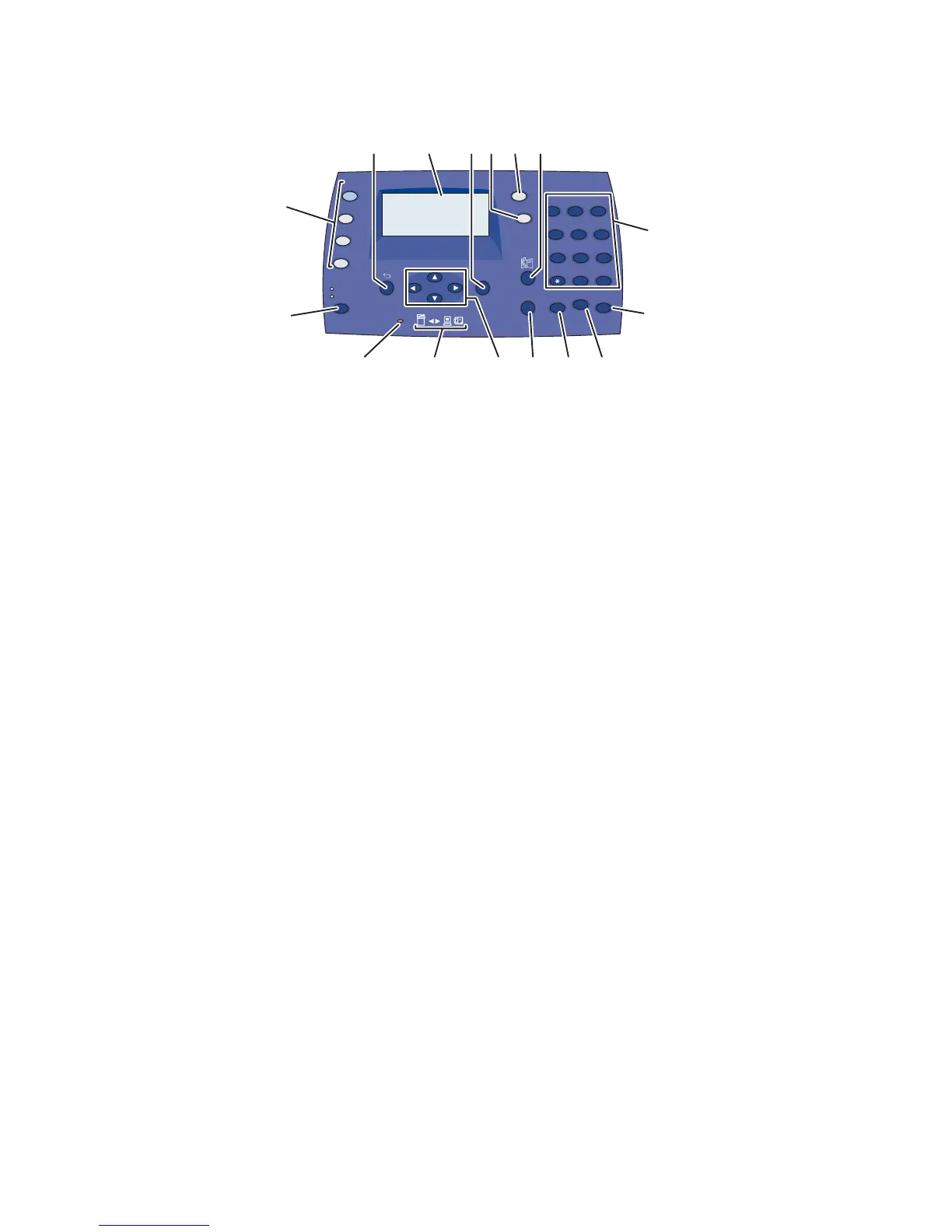

1. Press to use the Copy, Fax, E-mail, and Scan
menus on the display screen.
2. Color Mode button
Press to switch between Color and B&W modes for
your copy, fax, or scan job.
3. Job in Memory LED
When illuminated, it indicates that there is a fax job in
the printer’s memory.
4. Arrow LEDs
These LEDs indicate the flow of data either into or out
of the printer.
5. Up Arrow button
Scrolls upward through the menus.
Down Arrow button
Scrolls downward through the menus.
Back Arrow button
Scrolls backwards through the menus, or displays the
Walk-Up Features menu.
Forward Arrow button
Scrolls forward through the menus.
6. Manual Dial button
When faxing, you can press this button to quickly
enter a fax number with the alphanumeric key pad.
7. Redial/Pause button
Press the button to recall the last fax number used or
to insert pauses in fax numbers.
8. Clear button
Deletes a single character each time the button is
pressed. For use when entering email addresses and
telephone numbers.
9. Speed Dial button
Press to access directories of group or individual fax
telephone numbers.
10. Alphanumeric keypad
Use to enter numbers and letters for names and
phone numbers.
Also use to enter the IP address and the password for
any Walk-Up Features.
11. Address Book button
Press to access the Fax and Email address books.
12. Job Status button
Press to check active job status and Walk-Up printing
jobs.
13. System button
Switches the display to the Setup menu.
14. OK button
Press to accept the setting selected.
15. Graphic display indicates status messages, menus,
and toner levels.
16. Exit button
Press to go up one level in the menu.
