Connecting external d evices
Headphones/SPDIF port
Connectingau diodevicesAudio p ortsConnectingheadphones

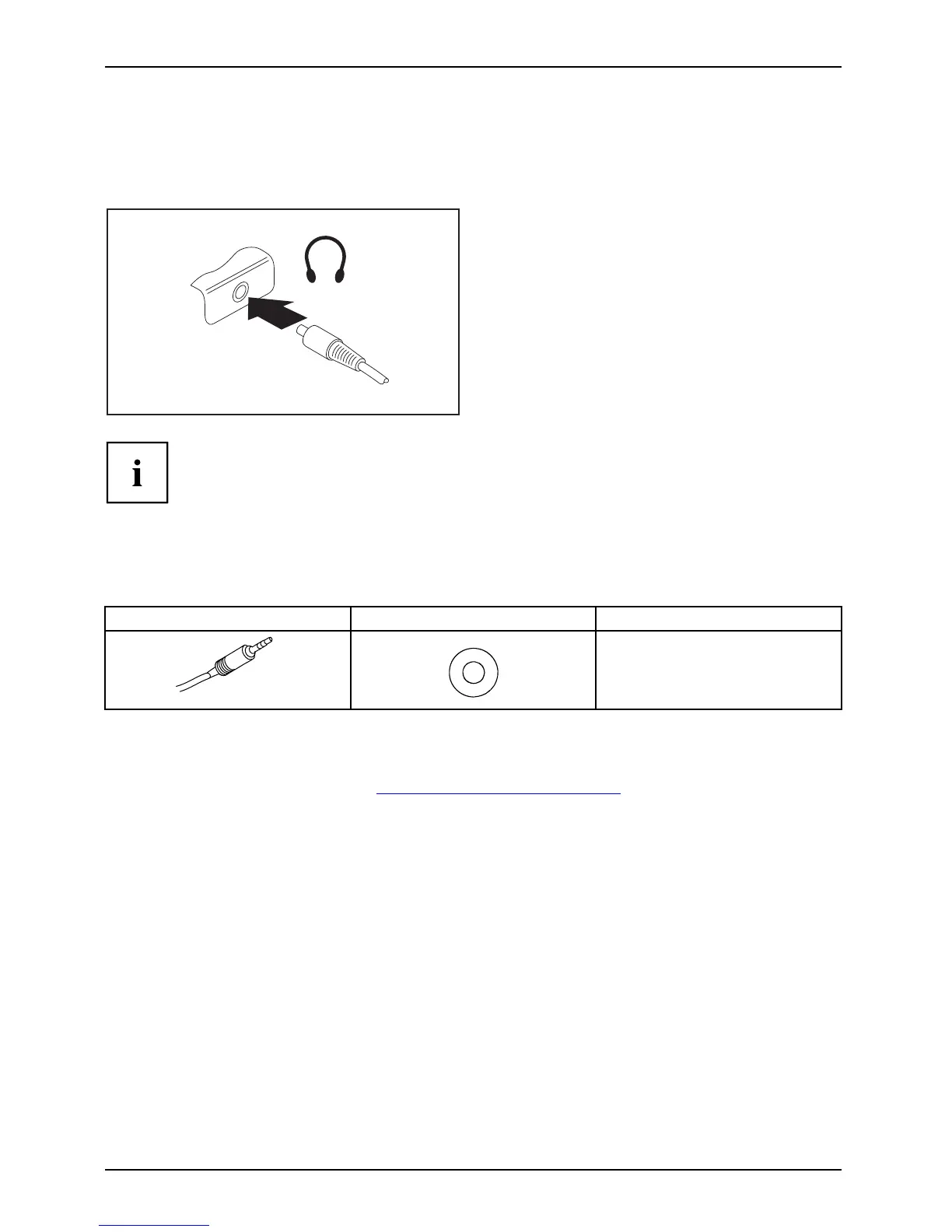

You can use the Headphones/SPDIF port to connect headphones, external loudspeakers
or an audio device with a digital optical input to your notebook.
► Connect the data cable to the
external device.
► Connect the data cable to the
headphones/SPDIF port of the notebook.
When you connect headphones or external speakers, the built-in speakers are disabled.
If you purchase a cable from a retailer, please note the following information:
The headphones / SPDIF port on your notebook is a "3.5 mm jack socket".
If you want to connect headphones or a speaker you will need a "3.5 mm jack plug".
If you want to connect audio devices with a d igital optical input (such as an amplifier),
you will need a fibre optic cable with a "TOSLINK 3.5 mm miniplug (SPDIF 3.5 jack)".
Connectors Port Pin configuration
optical
Adjusting the volume
► To set the desired volume, see "Adjusting the volume", Page 47 .
62 AMILO Notebook operating manual, edition 3
