Removing and installin g compo nen ts
during servicing
Devices with separate compartments for memory and hard disk
1
2

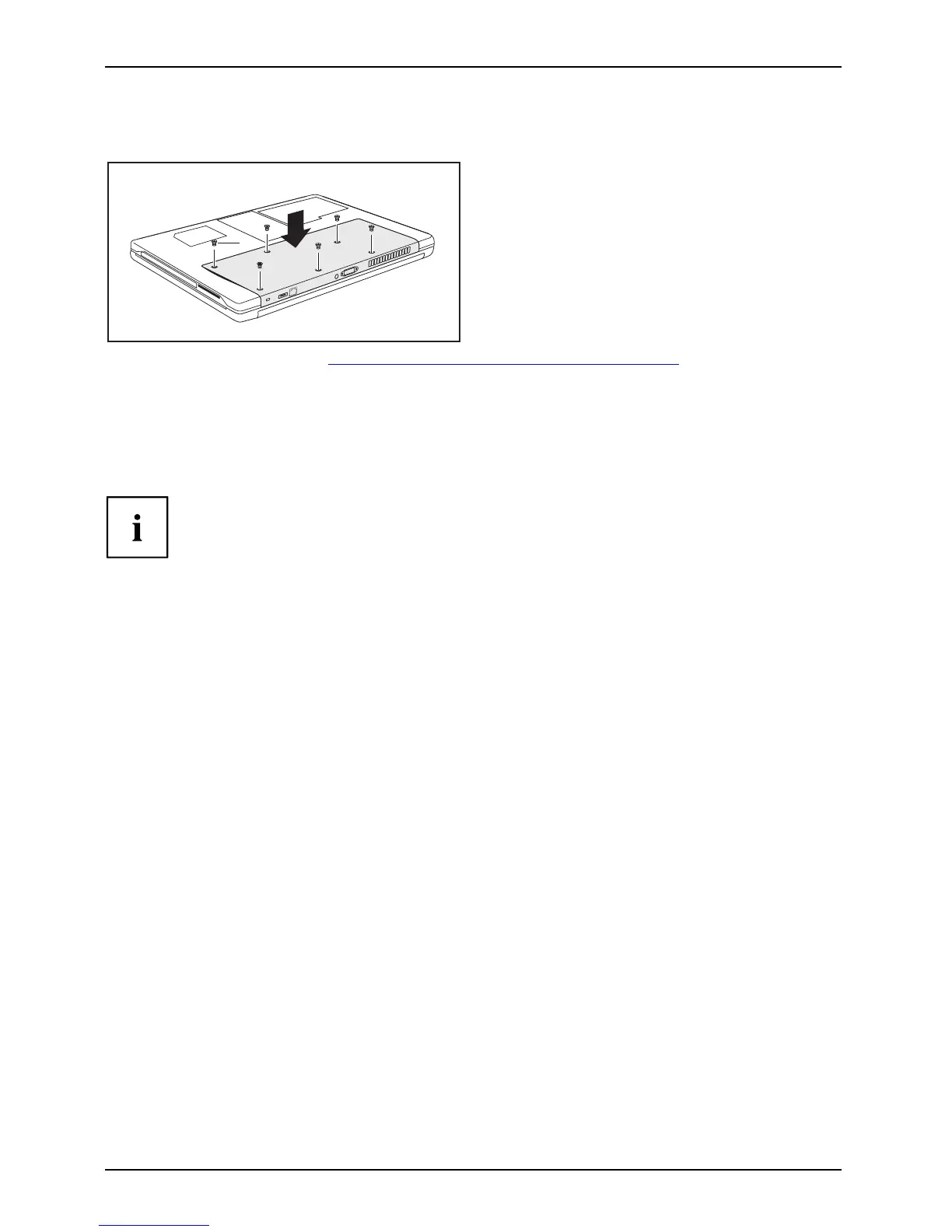

► Attach the cover in the direction
of the arrow (1).
► Secure the cover with the screw s (2).
► Reinstall the ba ttery (see "
Removing and installin g the battery", Page 30).
► Turn the notebook the right way up and place it on a fla t surface.
► Reconnect the cables that you disconnected previously.
Removing and installing
the hard disk
Depending on the particular variant of notebook you have, it may ha ve
a shared compartment for memory and hard disk, or the se c omponen ts
may be housed in two separate comp artment s.
68 AMILO Notebook operating manual, edition 3
