Fujitsu Airstage J-II Series User Manual



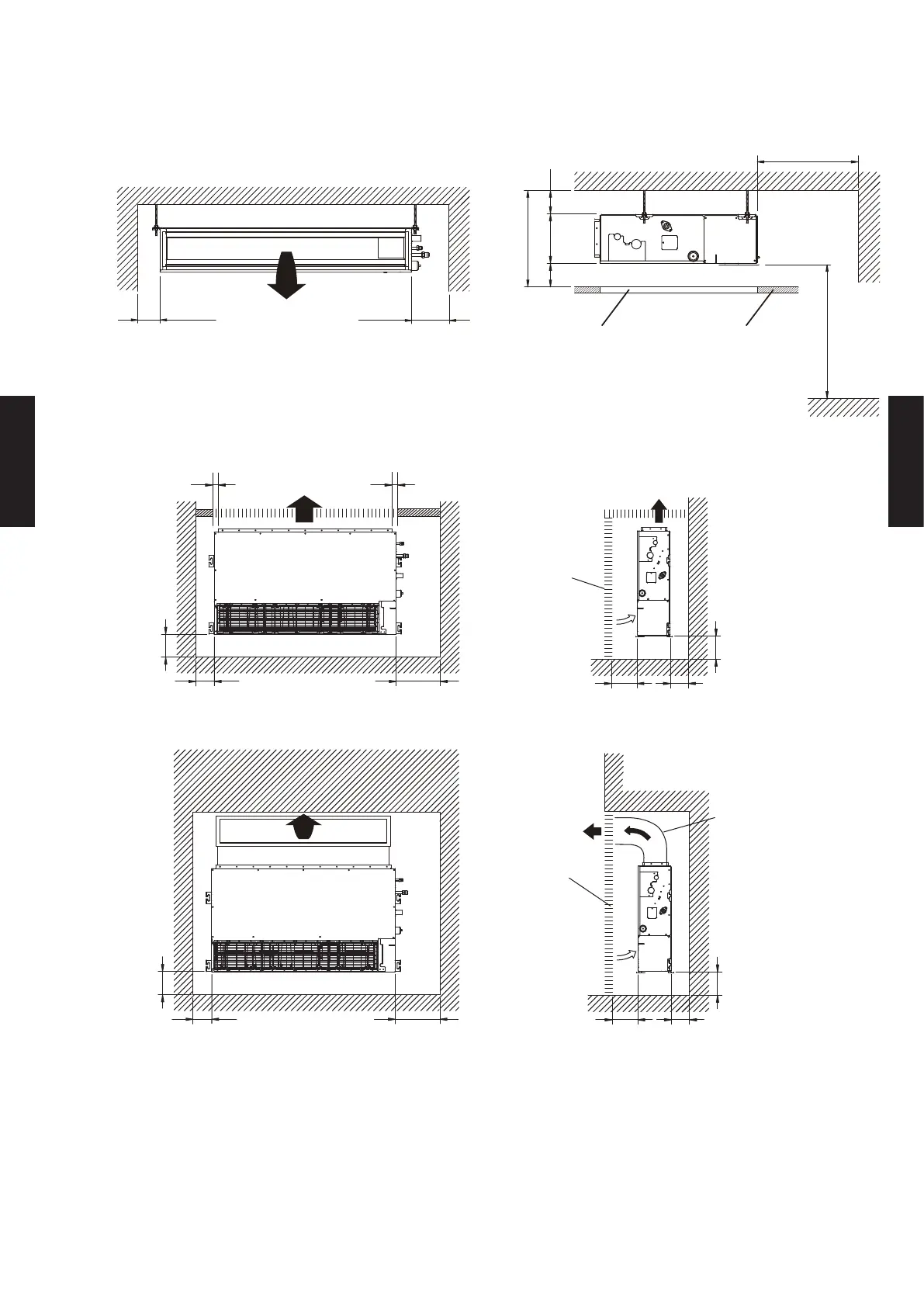

INSTALLATION LOCATION
Left
side
Strong and durable ceiling
Indoor unit
Right
side
6 (150)
or more
16 (400)
or more
Service access Ceiling
99 (2500) or more
(When no ceiling)
Floor
10 (240) or more
1 (20) or more
1 (20) or more
12 (300) or more
1 (10)
or less
1 (10)
or less
Left side
Strong and
durable floor
Right side
(PIPE side)
Grille
Inlet air
Strong and
durable floor
6 (150)
or more
6 (150)
or more
16 (400)
or more
1 (20)
or more
1 (20)
or more
6 (150)
or more
Left side
Strong and
durable floor
Right side
(PIPE side)
Duct
Grille
Inlet air
Strong and
durable floor
6 (150)
or more
6 (150)
or more
16 (400)
or more
1 (20)
or more
1 (20)
or more
6 (150)
or more
Unit : in. (mm)
- (04-37) -
INDOOR UNITS INDOOR UNITS
