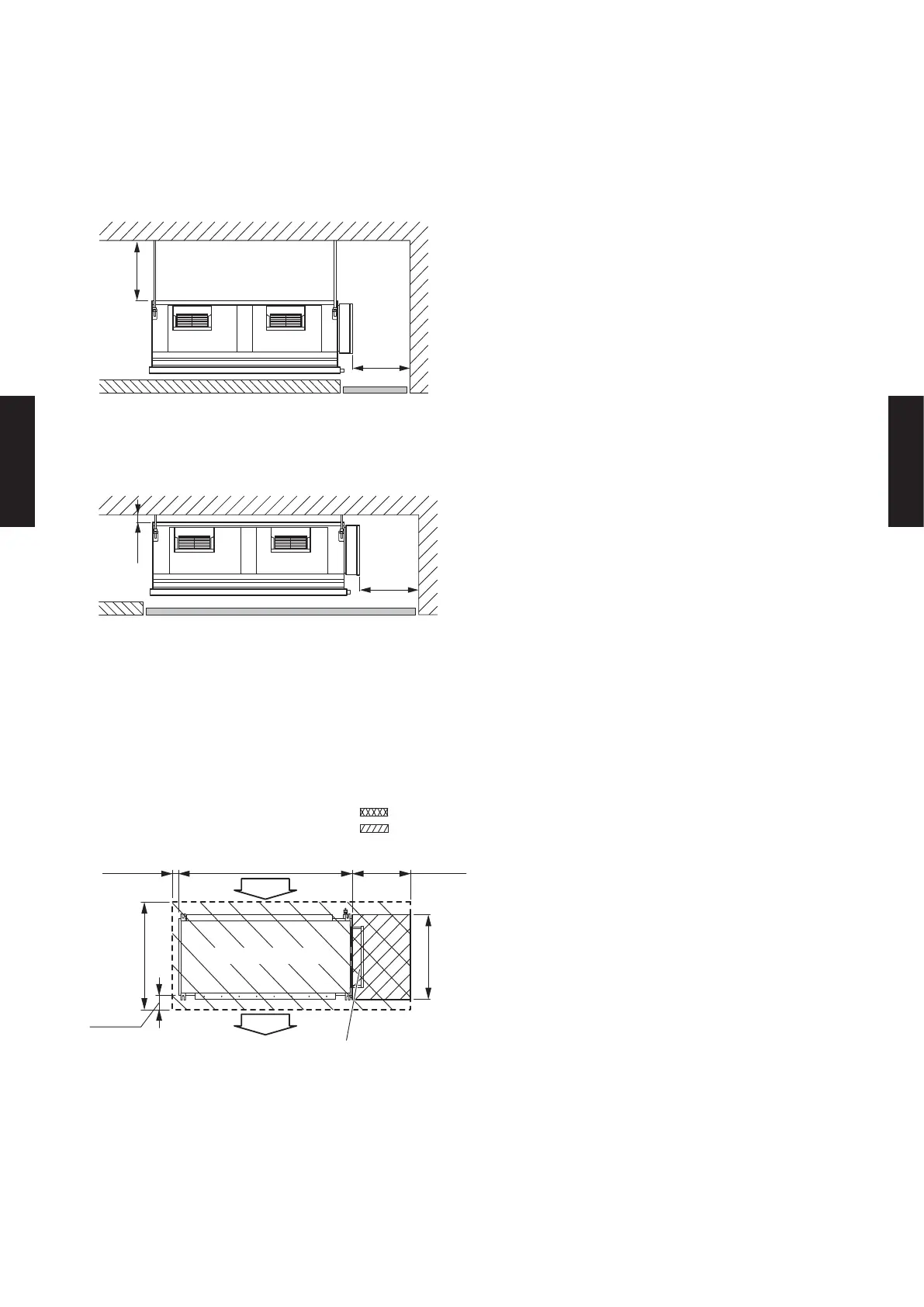

INSTALLATION LOCATION
(a) When service access will be carried out above the indoor unit a recommended installation
space of 18in.(450mm) is required.
(b) Installation by which service is carried out from the bottom of the unit

MAINTENANCE SPACE
Provide a maintenance space for inspection purposes as show below.
Do not place any wiring or illumination in the service space, as they will impede service.
18(450)
or
more
18(450)
Service
space
eloh ecnanetniaM
or more
Unit : in. (mm)
18(450)
1(20)
or
more
Service
space
Maintenance hole
or more
: Service access
: Service space
[Top view]
36 (890)
or more
28 (700)
or more
2 (30) or more 59 (1490)
20 (500)
or more
8 (200)
or more
Control box
Air
Air
Indoor unit
Unit : in. (mm)
- (04-45) -
