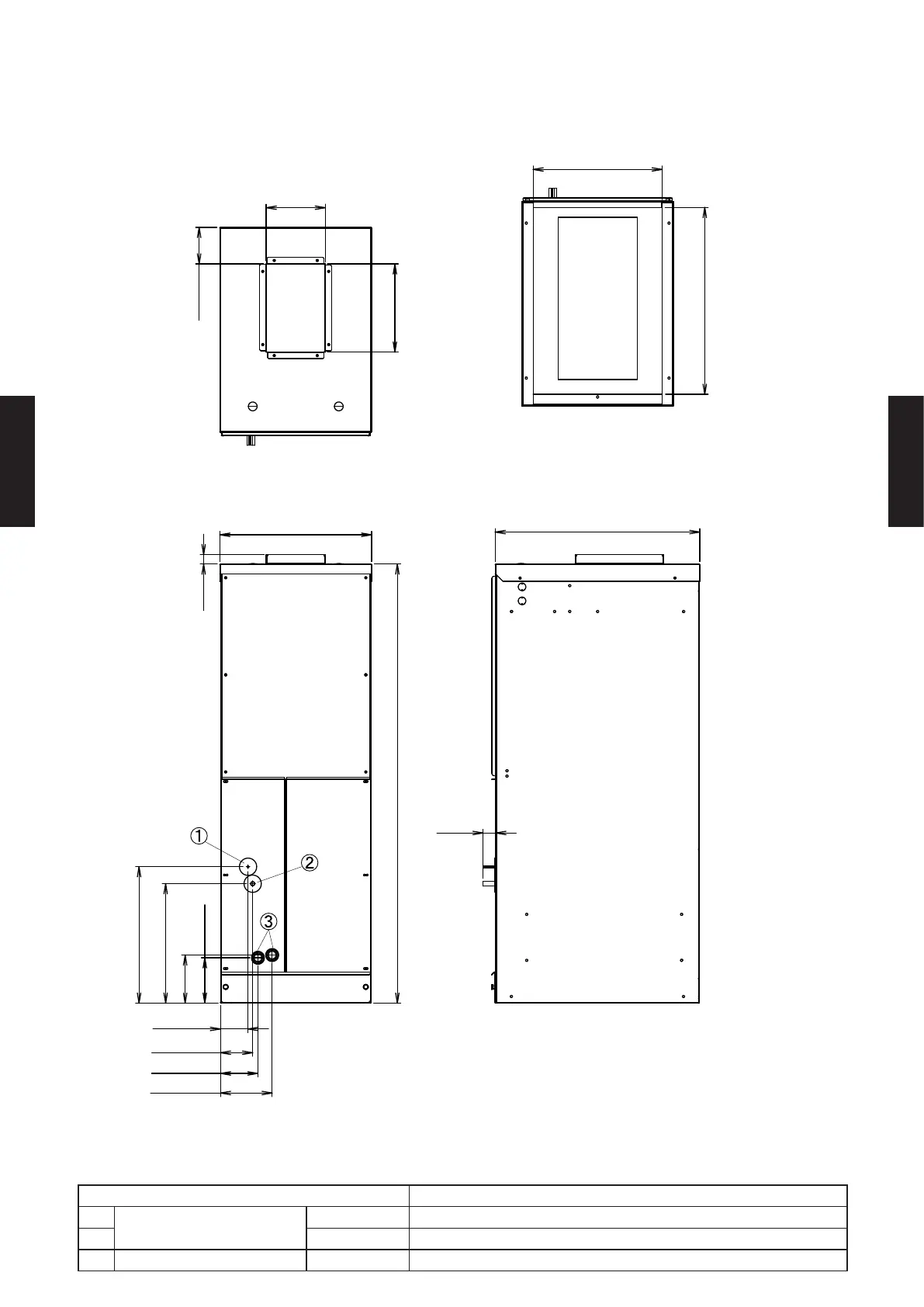

3-8. VERTICAL AIR HANDLER TYPE

MODEL: ARUV12TLAV
ARUV12

Refrigerant pipe are
connection
Liquid ø 1/4 (6.35)

Gas ø 1/2 (12.70)

Drain port - ø 3/4 (I.D.)
Front view
Top view
Bottom view
Side view
6 (152)
4-7/16 (112)
3-11/16 (94)
3-3/16 (81)
17-11/16 (450)
23-13/16 (605)
1-1/2 (38)
6-7/8 (175)
4-3/16 (107)
10-3/16 (259)
15 (381)
21-11/16 (551)
51 (1295)
1-1/8 (28)
15-7/8 (404)
13-7/8 (353)
5-9/16 (142)
5-5/16 (135)
Unit : in. (mm)
