Fujitsu Airstage J-II Series User Manual


MODELS: ARUV18TLAV, ARUV24TLAV
ARUV18, ARUV24

Refrigerant pipe are
connection
Liquid ø 3/8 (9.52)

Gas ø 5/8 (15.88)

Drain port - ø 3/4 (I.D.)

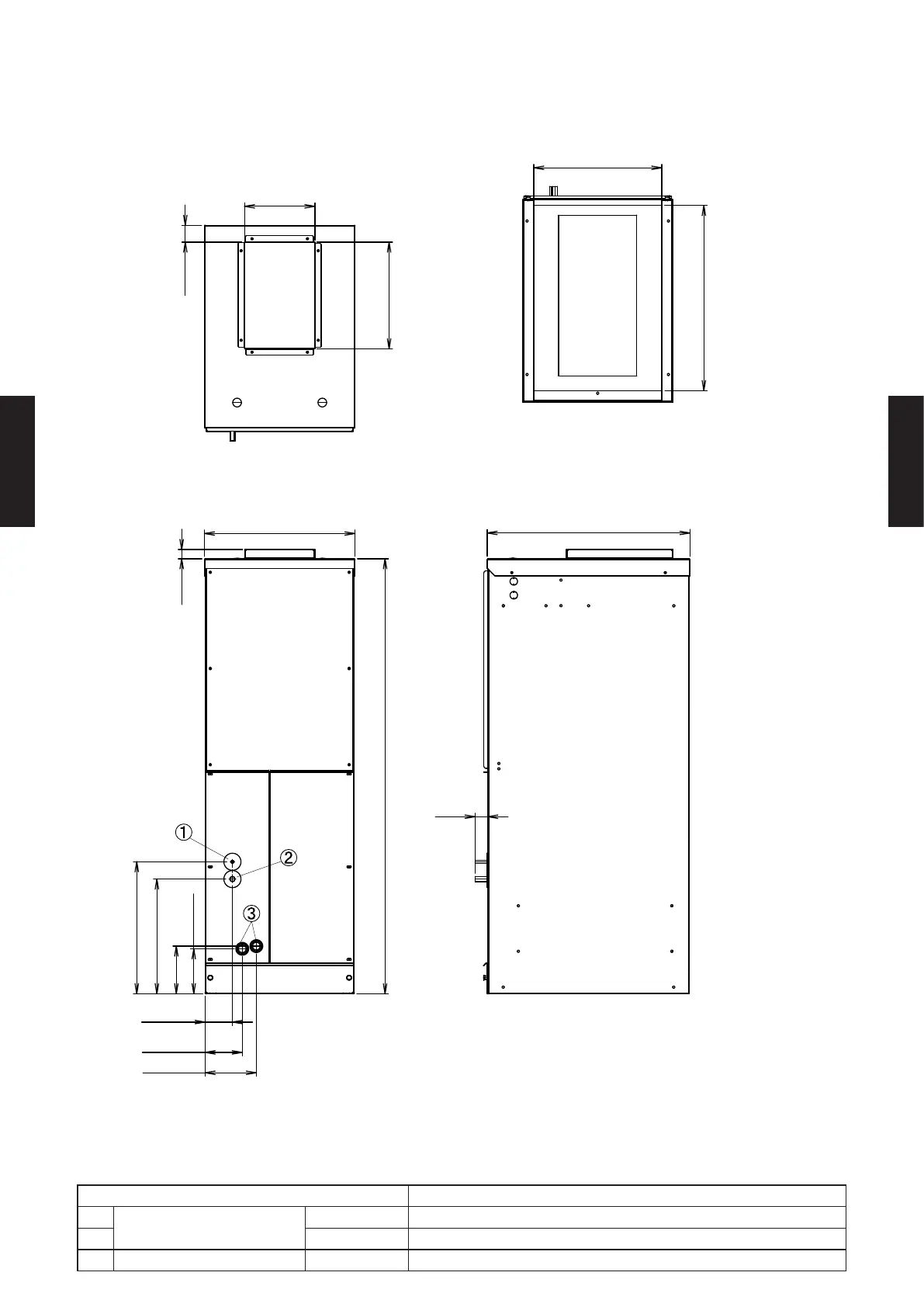

Top view
Bottom view
Front view
Side view
6 (152)
4-7/16 (112)
3-3/16 (81)
1-1/2 (38)
8-3/16 (208)
2 (51)
12-1/2 (318)
15 (381)
21-11/16 (551)
51 (1295)
17-11/16 (450)
23-13/16 (605)
1-1/8 (28)
15-1/2 (394)
13-1/2 (343)
5-9/16 (142)
5-5/16 (135)
Unit : in. (mm)
