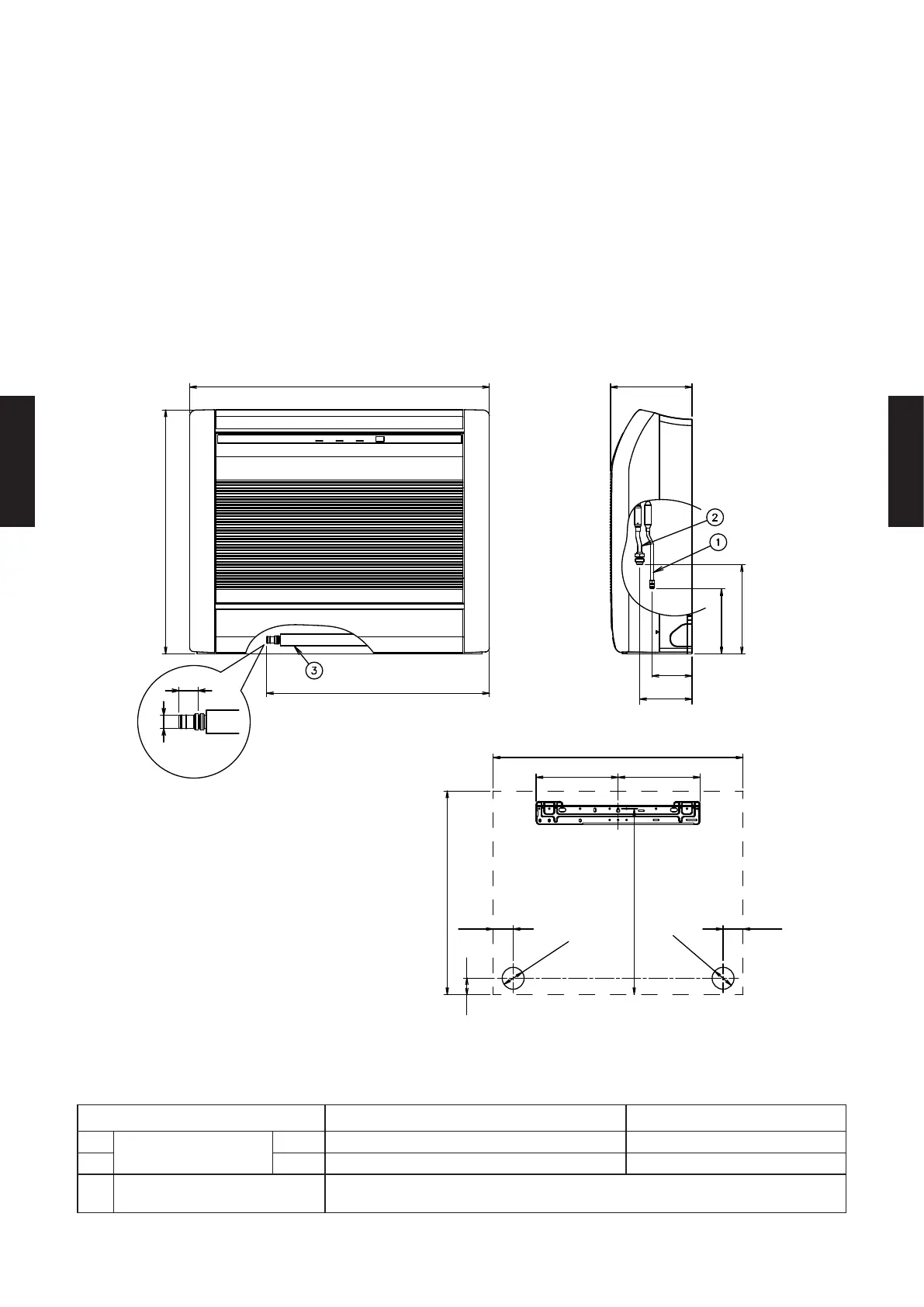

3-9. COMPACT FLOOR TYPE

MODELS: AGUA4TLAV1, AGUA7TLAV1, AGUA9TLAV1,
AGUA12TLAV1, AGUA14TLAV1
AGUA4, AGUA7, AGUA9 AGUA12, AGUA14

Refrigerant pipe
are connection
Liquid ø 1/4 (6.35) ø 1/4 (6.35)

Gas ø 3/8 (9.52) ø 1/2 (12.7)

Drain hose
I.D. 9/16 (13.8) , O.D. 5/8 (15.8) to 11/16 (16.7)
Drain hose : L=23-5/8 (600)
29-1/8 (740)
21-5/8 (550)
7-7/8 (200)
23-5/8 (600)
8-11/16 (220)
6-5/16 (160)
5-1/16
(129)
3-7/8
(98)
29-1/8 (740)
21-5/8 (550)
23-5/8 (600)
2-5/16
(59)
2-5/16
(59)
1-7/8 (48)
9-9/16 (243) 9-9/16 (243)
ø2-9/16 (65)
ø2-9/16 (65)
15/16 (24)
ø11/16 (16.7)
- (04-52) -
INDOOR UNITS INDOOR UNITS
