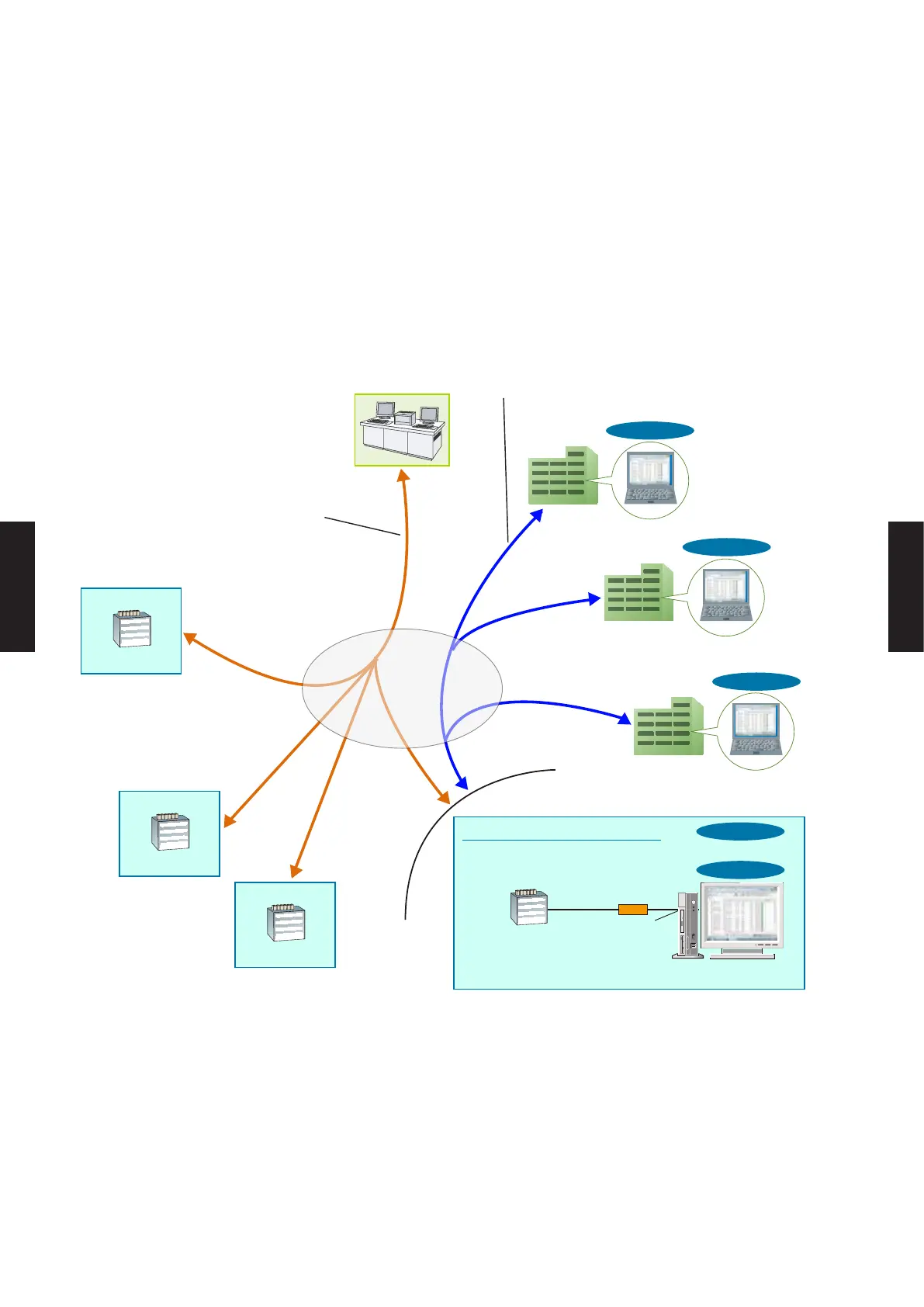

SYSTEM DIAGRAM
● System controller may be used on site or remotely over various networks for remote central
control. *
1
● System controller consists of VRF Controller software and VRF Explorer software, both
software are working together.
● VRF Controller software runs in the background and communicate with VRF System.
● VRF Explorer software provides user interface and communicate with the VRF Controller.
● VRF Controller and VRF Explorer software may run in a single PC or in different PCs
separated by network. *
1
● VRF Explorer software does not require Wibu key.
*
1
: UTY-PLGXR1 option is necessary.
VRF Controller
VRF Explorer
&
USB Adaptor
System Controller Lite
On site control Max. 1 VRF network system
USB Port
Internet
or
Telephone Line
or
LAN
VRF Explorer
VRF Explorer
VRF Explorer
VRF Building 1
Building Management
Company A
(In charge of the day shift)
Remote centralized
control / maintenance
center
Remote control /
maintenance to
multiple buildings
Remote control /
maintenance from
multiple sites
Building Management
Company B
(In charge of the night shift)
Security Company
VRF Building 2
VRF Building 3
VRF Building n
●
●
●
- (05 - 30) -
CONTROL
SYSTEM
CONTROL
SYSTEM
To Next Page
