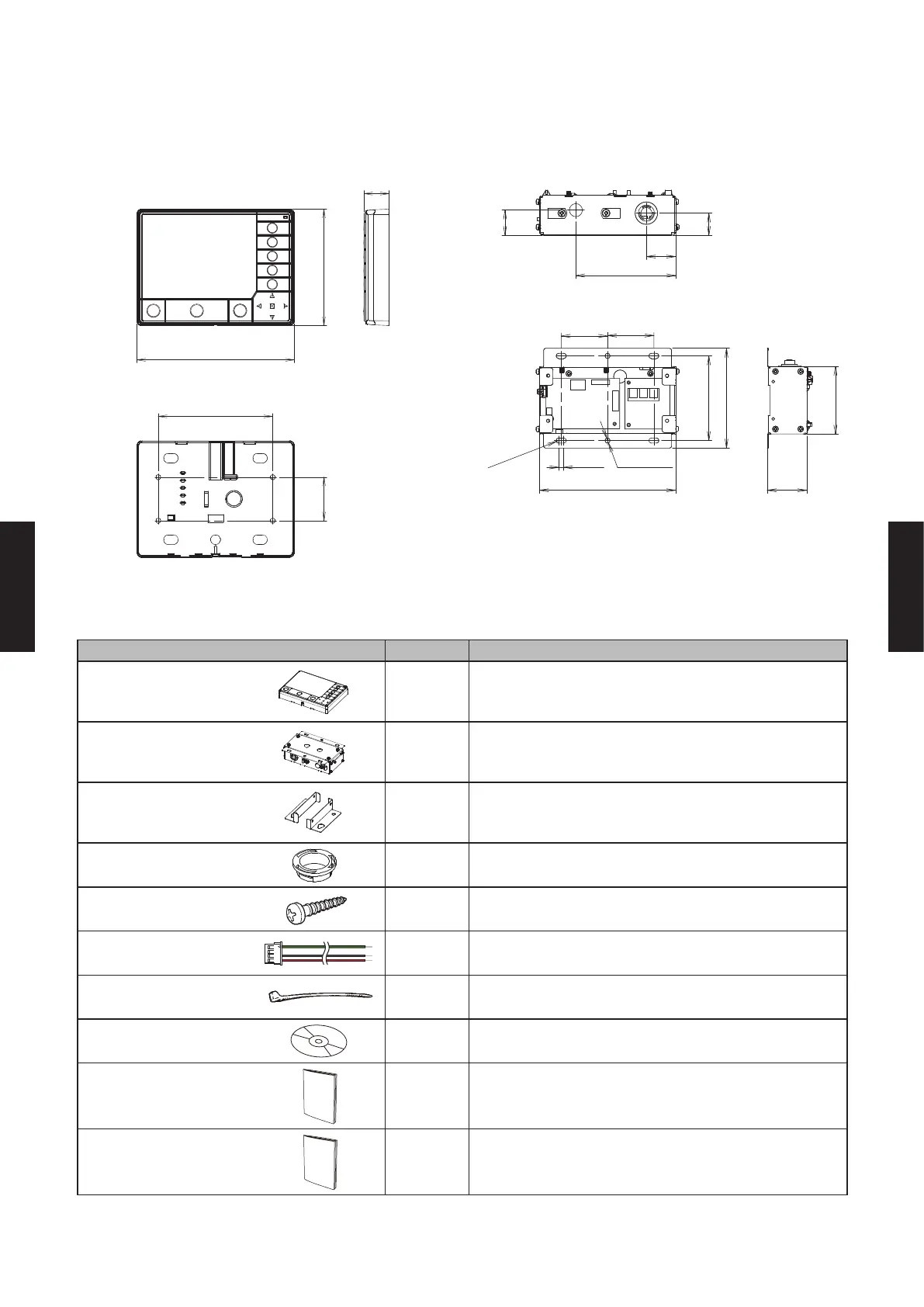

PACKING LIST
Name and shape Quantity Application
Controller unit 1
Power supply unit 1
Holder 1 (Set)
For power supply unit installation
(Used for separate type)
One-touch bush 2 For protection of power supply unit cable
Screw 8
Screw for Central Remote Controller installation
(M4 × 20 mm)
Connecting cable 1 For power supply unit connection
Cable Tie 4 Prevents dropping o󰀨 of the cable
CD-R 1
Include the operating manual for Central remote
controller
Installation manual 1
Operation manual 1 Instruction book for operation
Unit : in. (mm)

DIMENSIONS
z
Control unit
1 (25.7)
6-3/8 (162)
4-5/8 (118)
4-3/4 (120)
1-3/4
(44.8)
Front view
Side view
Rear view
z
Power supply unit
Front view
3-5/16 (84)
3-7/8 (99)
2-5/8 (67)
1 (25)
7/8 (22)
1-1/8 (29)
3-7/8 (99)
1-13/16 (46) 1-13/16 (46)
5-5/16 (135) 1-9/16 (39.2)
R1/8 (2.5)
3/16 (5) 2-Ø3/16 (5)
Side view
Top view
