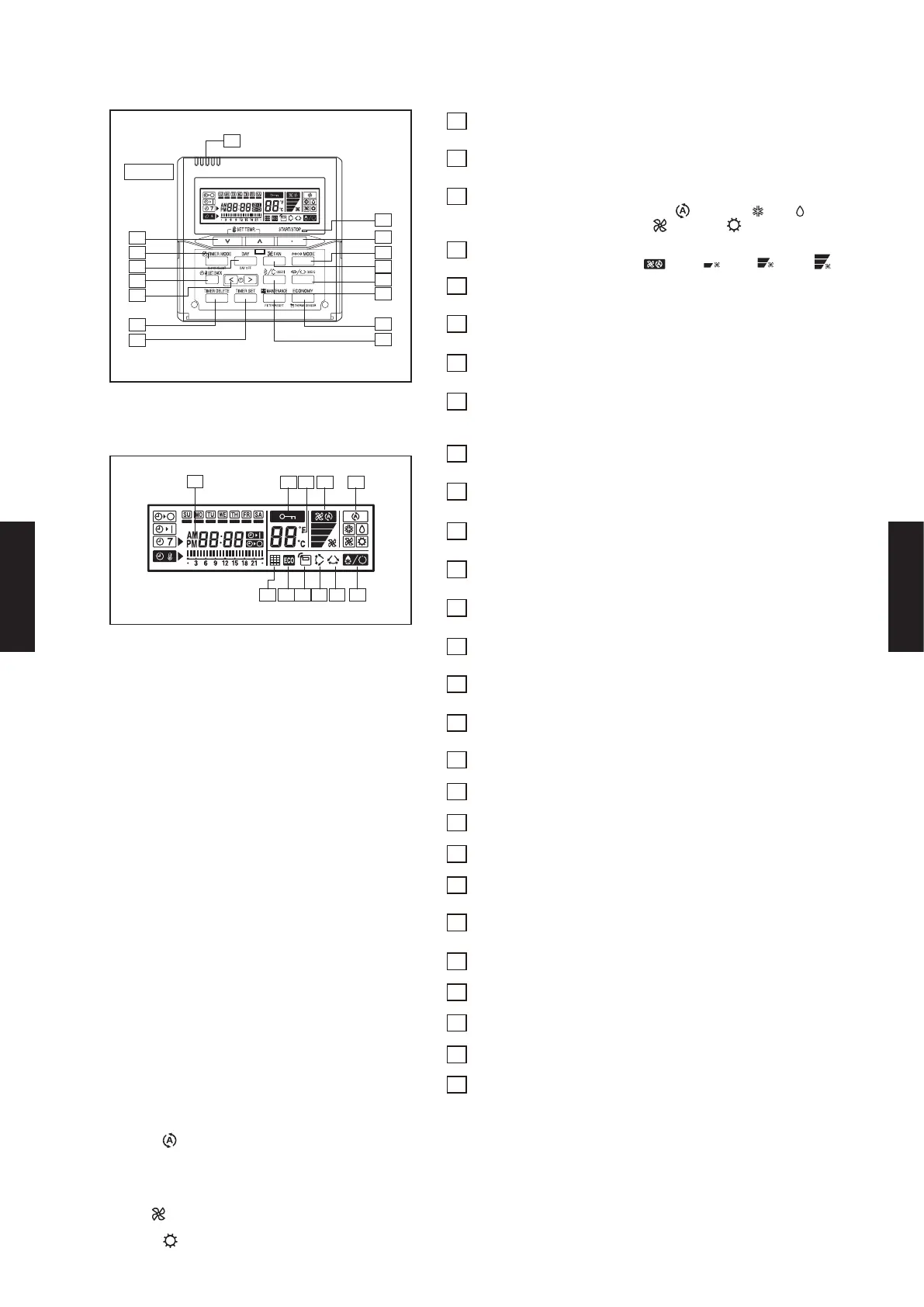

1 START/STOP button
Pressed to start and stop operation.
2 Set Temperature button
Selects the setting temperature.
3 Operation mode button
2
Selects the operating mode (AUTO
1, COOL
, DRY
,
FAN
3, HEAT
4).
4 Fan control button
Selects the fan speed (AUTO
, LOW
, MED
, HIGH
).
5 Vertical airow direction and swing button
Press for two seconds to change the swing mode
6 Horizontal airow direction and swing button
Press for two seconds to change the swing mode.
7 Built-in thermo sensor
Detect room temperature.
8 Timer mode (CLOCK ADJUST) button
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER)
Set the current time.
9 Day (DAY OFF) button
Temporarily cancels of one day timer.
10 Set back button
Pressed select the set back timer.
11 Set time button
Pressed to select the set back timer.
12 Timer delete button
The schedule of a weekly timer is deleted.
13 Timer set button
Sets the date, hour, minute and on-o time.
14 Economy button / Thermo sensor button
15 Maintenance button / Filter reset button
16 Operation lamp
Lights during operation and when the timer is on.
17 Timer and clock display
18 Operation mode display
19 Fan speed display
20 Operation lock display
21 Temperature display
Displayed temperature is set temperature.
22 Defrost display
Indicates during the oil recovery and defrosting operation.
23 Vertical swing display
24 Horizontal swing display
25 Economy display
26 Thermo sensor display
27 Filter display
FUNCTIONS
Display panel
1 : "AUTO " is not available for a heat pump model unless it is set up administrative indoor unit.
2 : Indoor unit can be set to administrative indoor unit by pressing "MODE" button for ve seconds or
more. (Refer to chapter 6. 6-14.)
3 : "FAN " is not available for a heat pump model.
4 : "HEAT " is not available for a cooling only model.
7
Display
13
12
11
10
2
8
9
16
15
14
1
3
5
4
6
18
17
1920 21
2223 242527 26
- (05 - 65) -
CONTROL
SYSTEM
CONTROL
SYSTEM
