Fujitsu Airstage J-II Series User Manual

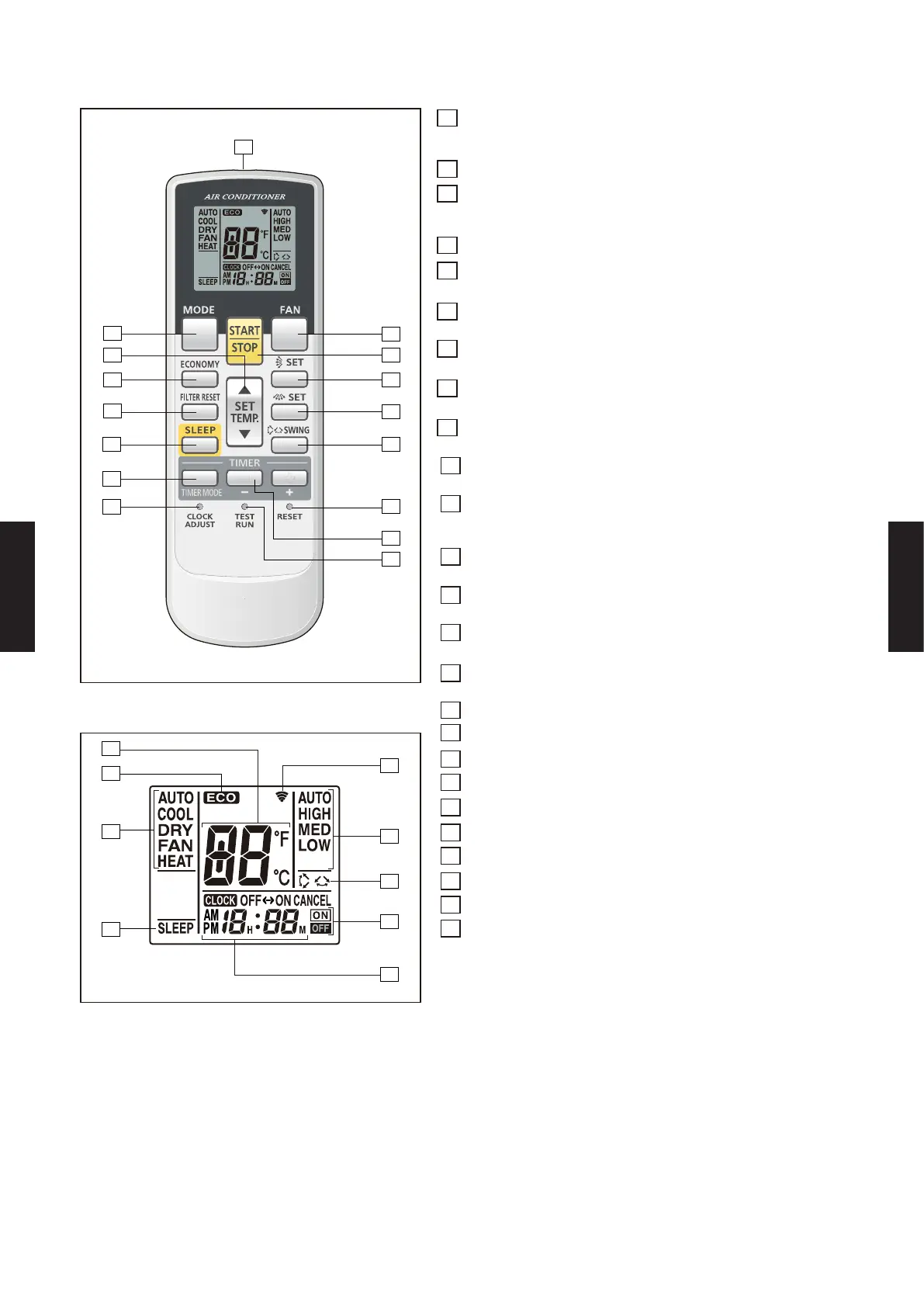

1 OPERATION MODE button
Selects the operating mode (AUTO, COOL, DRY, FAN, HEAT ).
/Start / end R.C. custom code change. (Max 4 types)
2 Economy button
3 Set temp. button ( ▲ / ▼ )
Set remote controller custom code buttons
Sets the indoor temp./ Sets R.C. custom code.
4 Filter reset button
5 Sleep button
Pressed to select sleep timer.
6 Fan button
Selects the fan speed (AUTO, HIGH, MED, LOW).
7 START/STOP button
Pressed to start and stop operation.
8 Set button (Vertical airow)
Airow direction vertical set button.
9 Set button (Horizontal airow)
Airow direction horizontal set button.
10 Swing button
Airow direction swing button.
11 Timer mode button
Pressed to select the timer mode. (OFF TIMER, ON TIMER,
PROGRAM TIMER, TIMER RESET)
12 Timer set ( + / - ) button
Sets the current time and on-o󰀨 time.
13 Clock adjust button
Sets the current time.
14 Reset button
Used when replacing batteries.
15 Test run button
Used when testing the air conditioner after installation.
16 Signal transmitter
17 Temperature set display
18 Economy display
19 Operating mode display
20 Sleep display
21 Transmit indicator
22 Fan speed display
23 Swing display
24 Timer mode display
25 Clock display

FUNCTIONS
Display panel
*1 : "AUTO" is not available for a heat pump model unless it is set up master indoor unit.
*2 : "FAN" is not available for a heat pump model
*3 : "HEAT" is not available for a cooling only model
2
4
9
3
1
16
15
5
10
13
11
12
14
8
7
6
17
18
19
21
24
23
22
25
20
