Fujitsu Airstage J-II Series User Manual



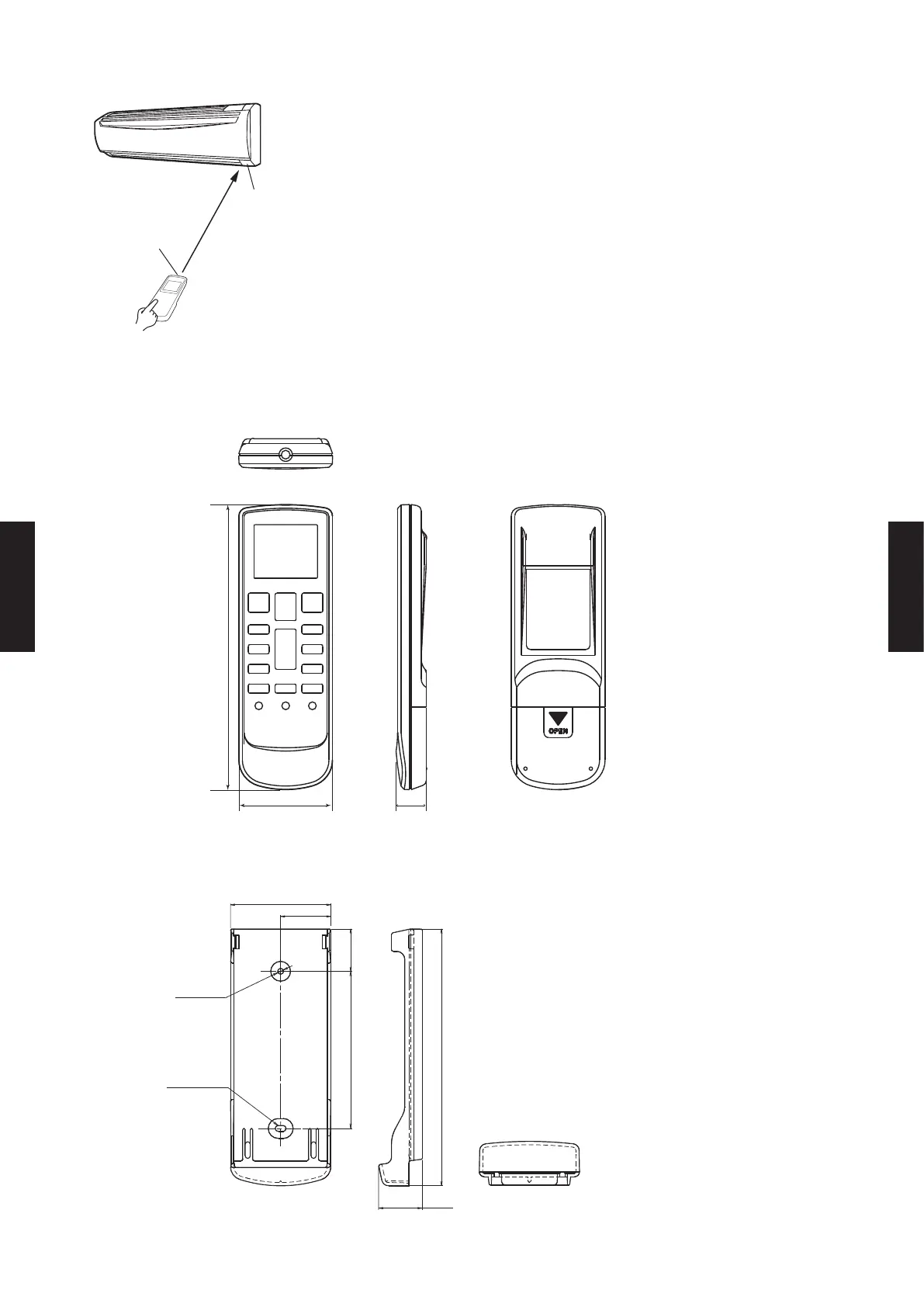

SYSTEM DIAGRAM
Signal transmitter
Signal receiver
window

DIMENSIONS
z
Controller
6-11/16 (170)
2-3/16 (56)
3/4 (19)
Front View Rear View
Top View
Side View
Unit : in. (mm)
z
Holder
Front View Side View Bottom View
2-3/8 (60.4)
1-3/16 (30.2)
Ø1/8 (3.5)
1/8 x 1/4 (3.5 x 6.5)
(HOLE)
(HOLE)
1-1/16 (26.2)
1 (25.5)
3-3/4 (95)
6-1/16 (154.7)
● Control signal might not be recognized in following cases:
(i) A curtain or a wall, etc. exists between transmitter and receiver.
(ii) There is an instant-start type (inverter type, etc.) uorescent lamp
in the room.
● Air conditioner might not work correctly when strong light hits the
signal receiver window. Shut off the direct sunlight and also make
illuminator far away from the receiver window.
- (05 - 89) -
CONTROL SYSTEM CONTROL SYSTEM
