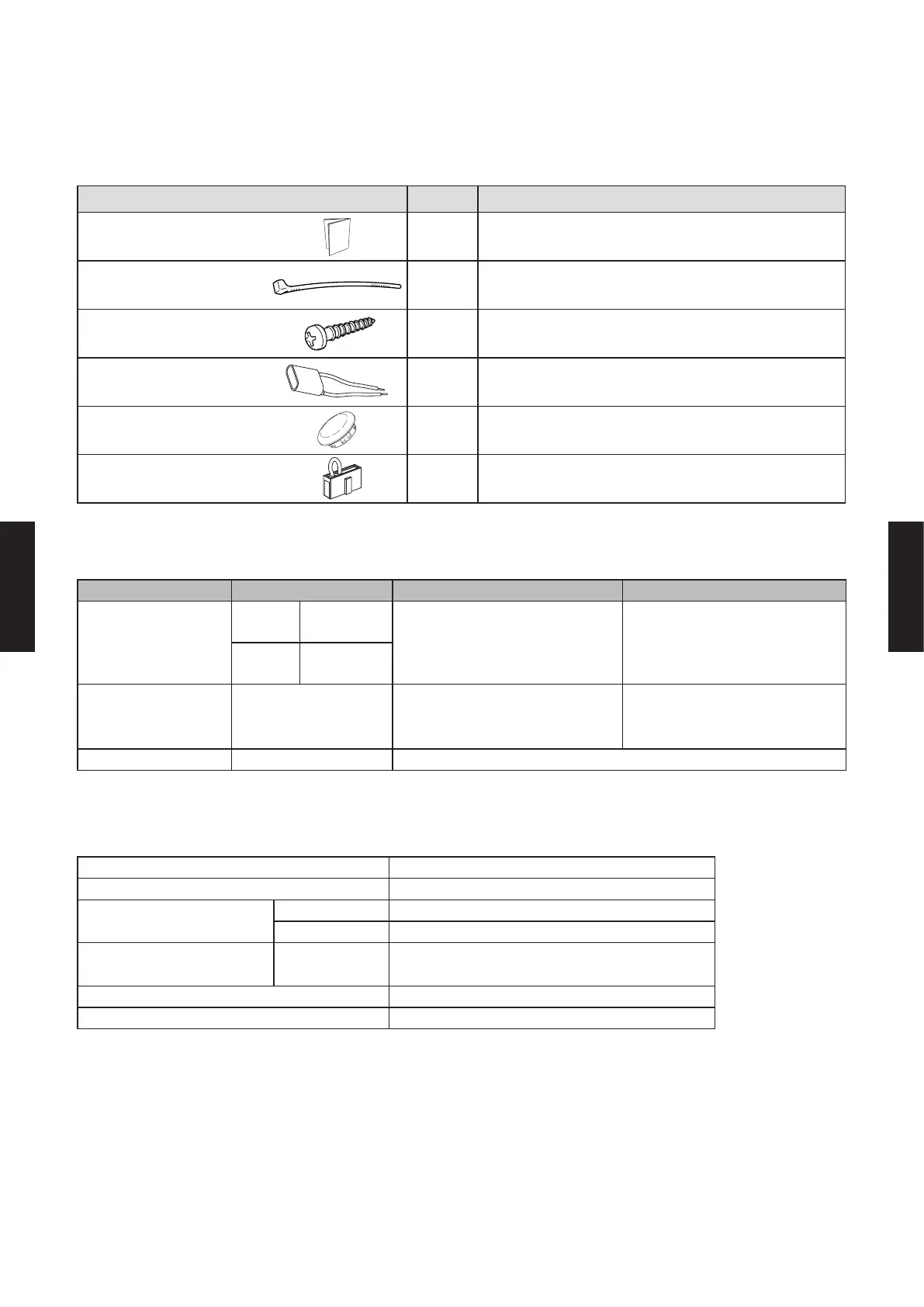

PACKING LIST
The following installation parts are supplied. Use them as required.
Name and shape Quantity Application
Installation manual 1
Cable Tie 4 For securing controller cable.
Screw
(M4 × 20 mm)
4 For mounting the signal amplier.
Terminal resistor 1
Dust proof bushing 1
For connecting the power supply cable. (Except in
U.S.A. and Canada)
Connecting wire
1
For setting the lter mode

WIRING SPECIFICATIONS
Use Size Wire type Remarks
Power supply cable
Maximum
16 AWG
(1.25 mm
2
)
60245 IEC 57 or equivalent
1 ø AC 208 - 240 V 50/60
Hz, 2 Wire + ground
(Always ground the unit)
Minimum
20 AWG
(0.5 mm
2
)
Transmission cable
22AWG
(0.33
mm
2
)
LEVEL4 (NEMA) non-polar 2
core, twisted pair solid core
Shielded
L
ON
W
ORKS
®
compatible cable
Fuse capacity 3 A

SPECIFICATIONS
z
Main specication
Power supply 1ø AC 208 - 240 V 50/60 Hz
Input Power (W) 4.5
Temperature: °F (°C)
Operating 32 to 114.8 (0 to 46)
Packaged 14 to 140 (-10 to 60)
Humidity (%) Packaged
0 to 95 (RH) ;
No condensation
Dimensions [H × W × D]: in. (mm) 2-5/8 × 11-5/16 × 8-5/16 (67 × 288 × 211)
Weight: lbs. oz. (g) 3 lbs. (1,500)
- (05 - 174) -
