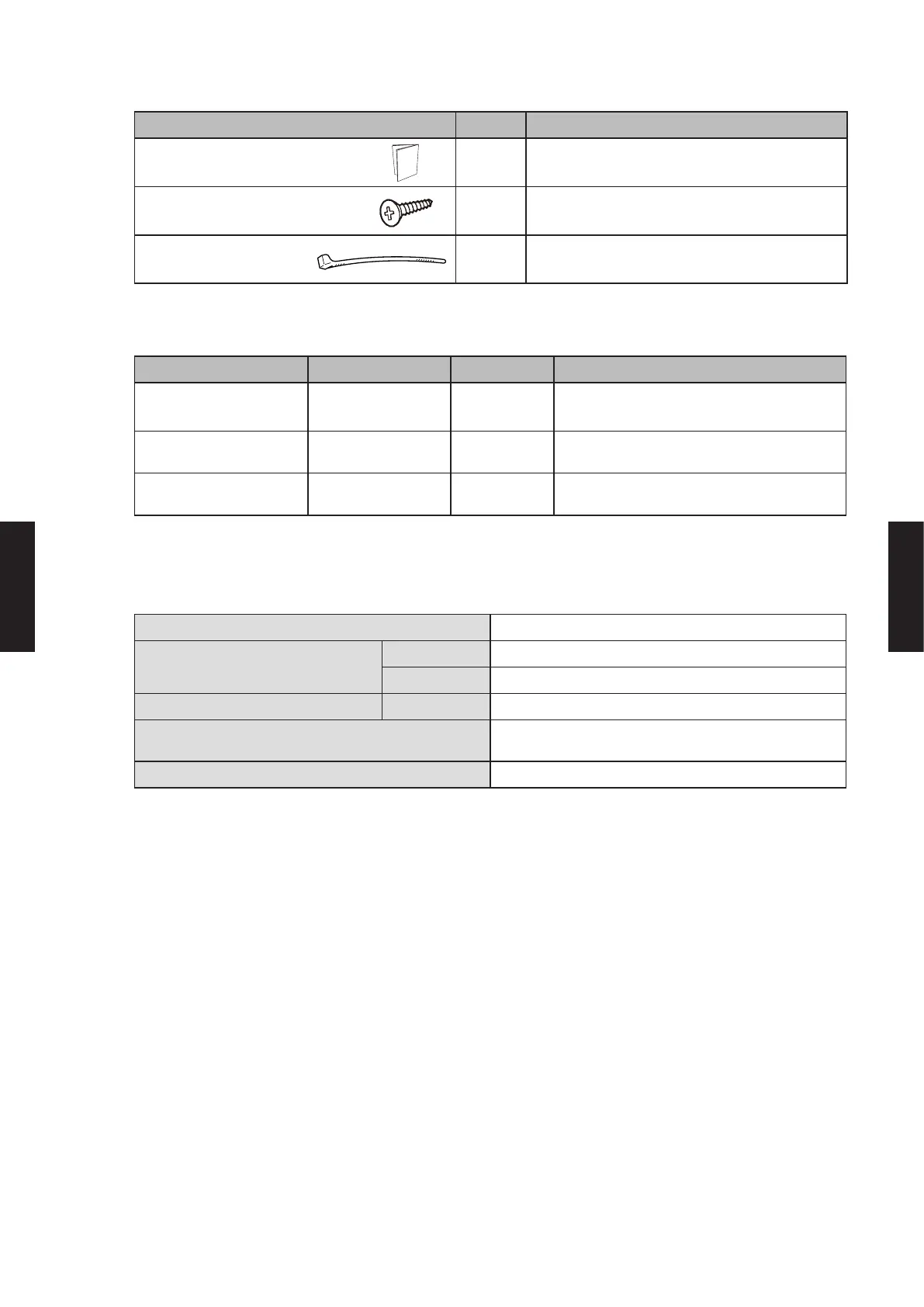

PACKING LIST
Name and shape Quantity Application
Installation manual 1
Screw
(M4 × 16 mm)
3 For installing the external switch controller
Cable Tie 4 For securing controller cable.
WIRING SPECIFICATIONS
Use Size Cable type Remarks
Remote controller cable
(2-wire type)
16 to 22AWG
(0.33 to 1.25 mm
2
)
Sheathed
PVC cable*
Non-polar 2 core, twisted pair
(Maximum cable length: 1,640 ft. [500 m])
Remote controller cable
(3-wire type)
22AWG
(0.33 mm
2
)
Sheathed
PVC cable*
Polar 3core, twisted pair
(Maximum cable length: 82 ft. [25 m])
External input cable
16 to 22AWG
(0.33 to 1.25 mm
2
)
Sheathed
PVC cable*
2 core, twisted pair
(Maximum cable length: 164 ft. [50 m])
*: Use shielded cable in accordance with local rules for remote controller cable.
SPECIFICATIONS
Power consumption (W) 0.6
Temperature: °F (°C)
Operating 32 to 114.8 (0 to 46)
Packaged 14 to 140 (-10 to 60)
Humidity (%) Packaged 0–95 (RH);
No condensation
Dimensions [H × W × D]: in. (mm)
1-11/16 × 4-5/8 × 5-1/2
(43 × 117 × 140)
Weight: oz. (g) 9 (250)
- (05 - 178) -
CONTROL
SYSTEM
CONTROL
SYSTEM
