Fujitsu Airstage J-II Series User Manual

4-2. WEB MONITORING TOOL
4-2-1. MODEL: UTY-AMGXZ1


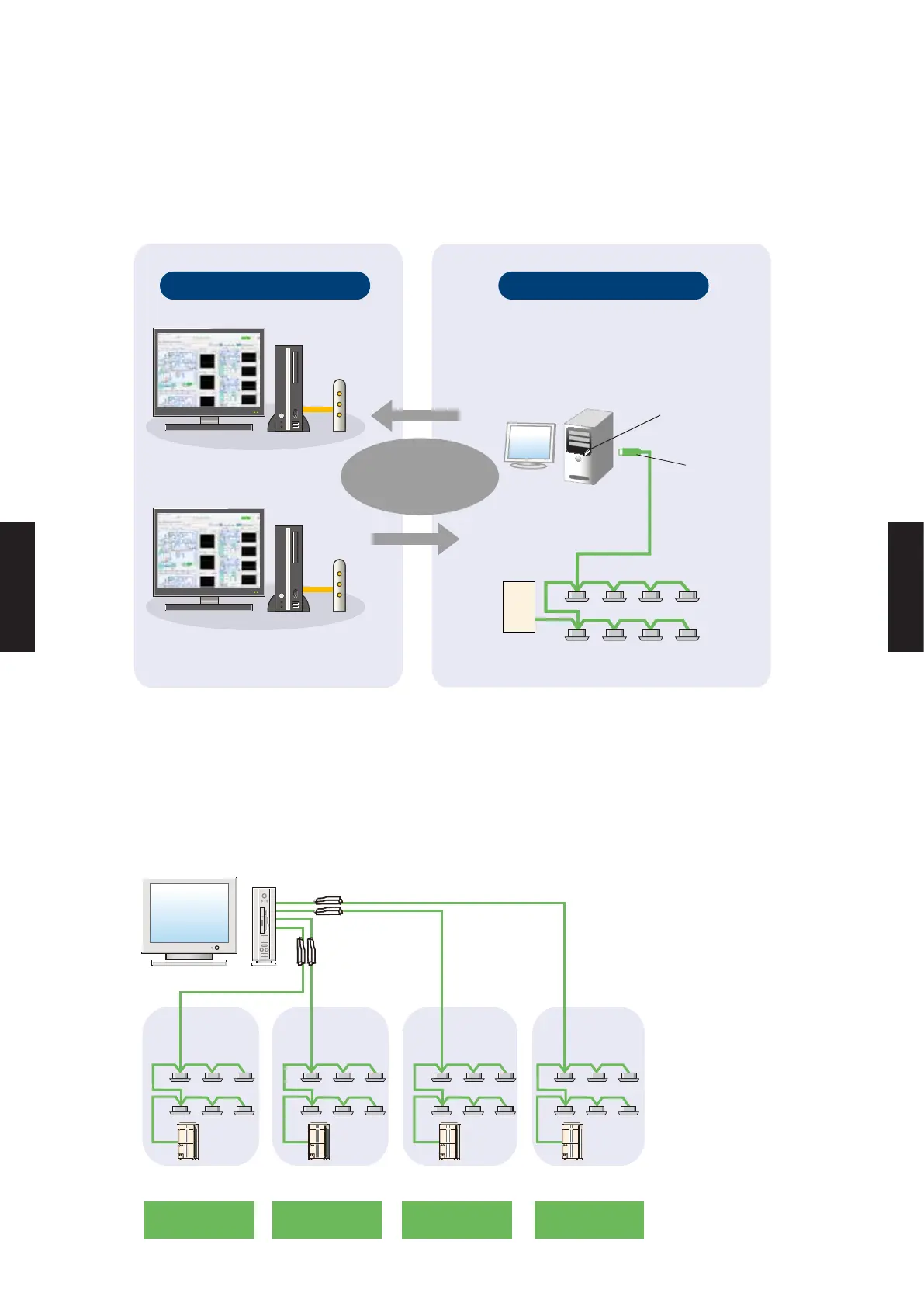

SYSTEM DIAGRAM
z
System components
VRF network system
USB Adaptor
(Locally
purchased)
Personal
Computer
(Locally
purchased)
Personal Computer
(Locally purchased)
Software &
protection key for
Web Monitoring
Tool *
(UTY-AMGX Z1)
VRF System SideRemote Side
Internet
z
Support 4 VRF network system
PC USB adaptors (Max. 4 adaptors per PC) permit control and monitoring of up to 1,600 units.
Suitable for large-scale buildings or hotels
Max. 400
indoor unit
Max. 400
indoor unit
Max. 400
indoor unit
Max. 400
indoor unit
VRF network
system 1
VRF network
system 2
VRF network
system 3
VRF network
system 4
USB Adaptor
(Locally
purchased)
Personal Computer
(Locally purchased)
Up to 2 PCs
can be connected simultaneously.
*
WibuKey of UTY-AMGX can be used.
