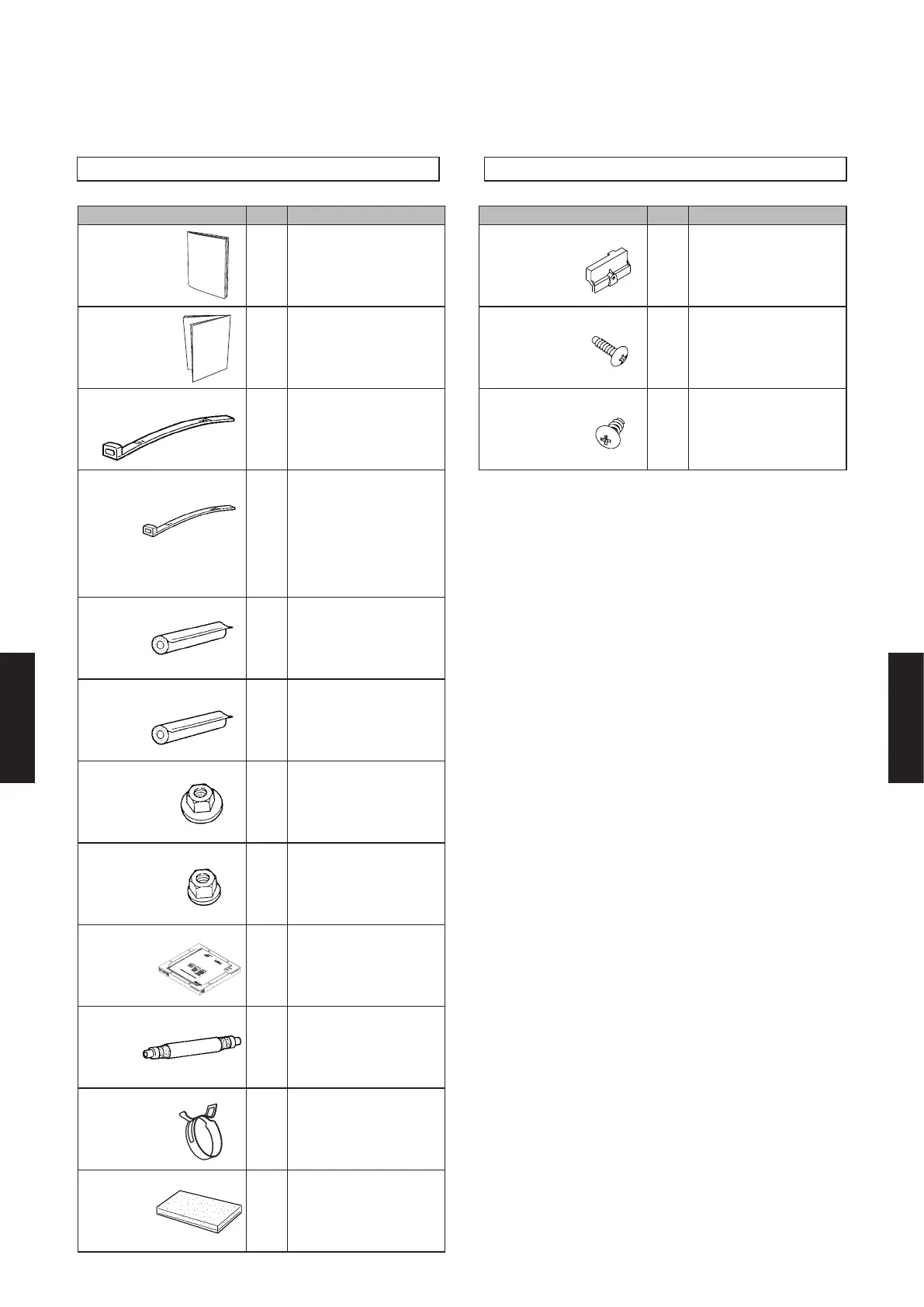

6-2. INDOOR UNIT
COMPACT CASSETTE TYPE
Name and shape Q'ty Application
Operating
manual
1
Installation
manual
1
Cable Tie(s)
(Large)
4
For securing the
refrigerant connection
pipes.
Cable Tie(s)
Medium)
4
For securing the power
supply, transmission
cable and remote control
cable. Do not run power
cable and transmission
cable together, electrical
interference will cause
communication errors.
Pipe Insulation
(Small)
1
For indoor piping
connection
Pipe Insulation
(Large)
1
For indoor piping
connection
Special nut A
(Large ange)
4
For installing indoor unit
Special nut B
(Small ange)
4
For installing indoor unit
Template
(Carton top)
1
For cutting opening.
Also used as packing
Drain hose
1
For connecting drain
hose.
Hose band
1
For installing drain hose
Drain hose insulation
1
For installing drain hose
Name and shape Q'ty Application
Connector cover
1
For covering connector
Tapping screw
(M5 × 12 mm)
4
For mounting cassette
grille
Tapping screw
(M4 × 12 mm)
1
For mounting connector
cover
INDOOR UNIT ACCESSORIES CASSETTE GRILLE ACCESSORIES
- (06 - 67) -
