ADDRESS SETTING
z
INDOOR UNIT ADDRESS SETTING

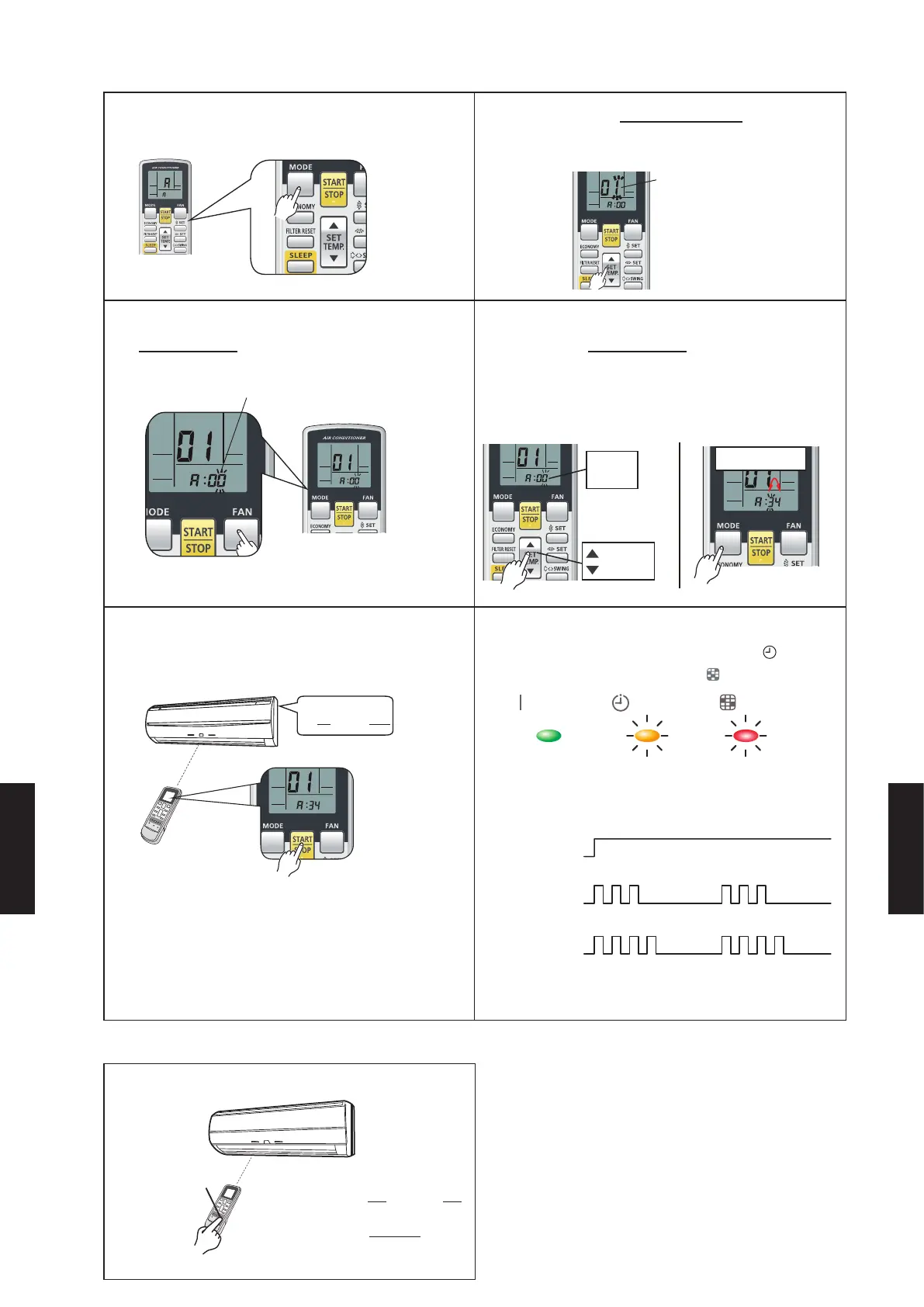

(7) Press the “MODE” button to access the
address setting mode.
(8) Make sure the function number is ‘01’. If the
number is other than ‘01’, press the “
p
” or
the “
q
” buttons to alter.
(9) Press the “FAN” button to access the
address data setting mode. The address
data will ash once this button is pressed.
Address data
(10) Press the “
p
” or the “
q
” buttons to
adjust the address data. The indoor unit
address range is between 00 and 63.
Each time the “MODE” button is pressed, it
switches between the one' place and the ten's
place positions.
Range
00 - 63
: UP
: DOWN
Change digit
(11) Press the “START/STOP” button once to
send the information. A beeping noise will
be heard if the command is accepted.
Pi Pi
Pi PiPiPi
¾
In the following cases the setting signal is not read
and a buzzer sounds.
The indoor unit address No. is set out of range
(64 or more) : Pi Pi Pi Pi Pi
The setting of the rotary switch on the PCB is not
"00" : Pi Pi Pi Pi Pi
(12) Indoor unit will display the indoor unit
address data number on "TIMER
"(ORANGE) and "FILTER "(RED) light.
OPERATION
(GREEN)
TIMER
(ORANGE)
continuously Flashing times of
address numbers
(the ten’s place)
FILTER
(RED)
Flashing times of
address numbers
(the one’s place)
(Example) ADDRESS : 34
OPERATION LAMP
(GREEN)
TIMER LAMP
(ORANGE)
FILTER LA MP
(RED)
0.5sec ON / 0.5sec OFF
4 times
3 times 1 - 10 sec
1 - 10 sec
0.5sec ON / 0.5sec OFF
¾
ADDRESS 0 setting will not indicate TIMER LAMP
and FILTER LAMP.
z
Conrmation of address setting
(13) Press the “TIMER set (+)” button.
“TIMER set (+)”
PiPi
CORRECT : Pi PiPiPiPiPi
PiPi
WRONG: Pi (3 sec)
SET "01"
- (07 - 19) -
FUNCTION
SETTING
FUNCTION
SETTING
To Next Page
