Fujitsu Airstage J-II Series User Manual

1-4. TOUCH PANEL CONTROLLER
External input External output Connector External connect kit
(Optional parts)
Control input -
TM201 (CN411 or CN412)
-
Electricity meter - -
- Operation status
CN410 UTY-XWZXZA
- Error status
1-4-1. EXTERNAL INPUT
● This function performs “Emergency stop” or “All On / All Off” by using the signal to be input externally at external
input terminals.

INPUT SELECT
Use either one of these types of terminal according to the application. (Both types of terminals
cannot be used simultaneously.)
For more details on the selection setting, refer to the operation manual of Touch Panel
Controller.
It is possible to switch to the Dry contact terminal or the Apply voltage terminal by connecting
the CN201 on the TM201 printed circuit board to the CN411 or the CN412 on the printed circuit
board of the panel side.
* The Dry contact terminal (connected to the CN411) is set when shipped from the factory.
TM201 - CH1, CH2 Connect with the CN201
Dry contact terminal CN411
Apply voltage terminal CN412
z
Dry contact terminal TM201 (CN411)
When a power supply is unnecessary at the input device you want to connect, use the Dry
contact terminal TM201 (CN411).

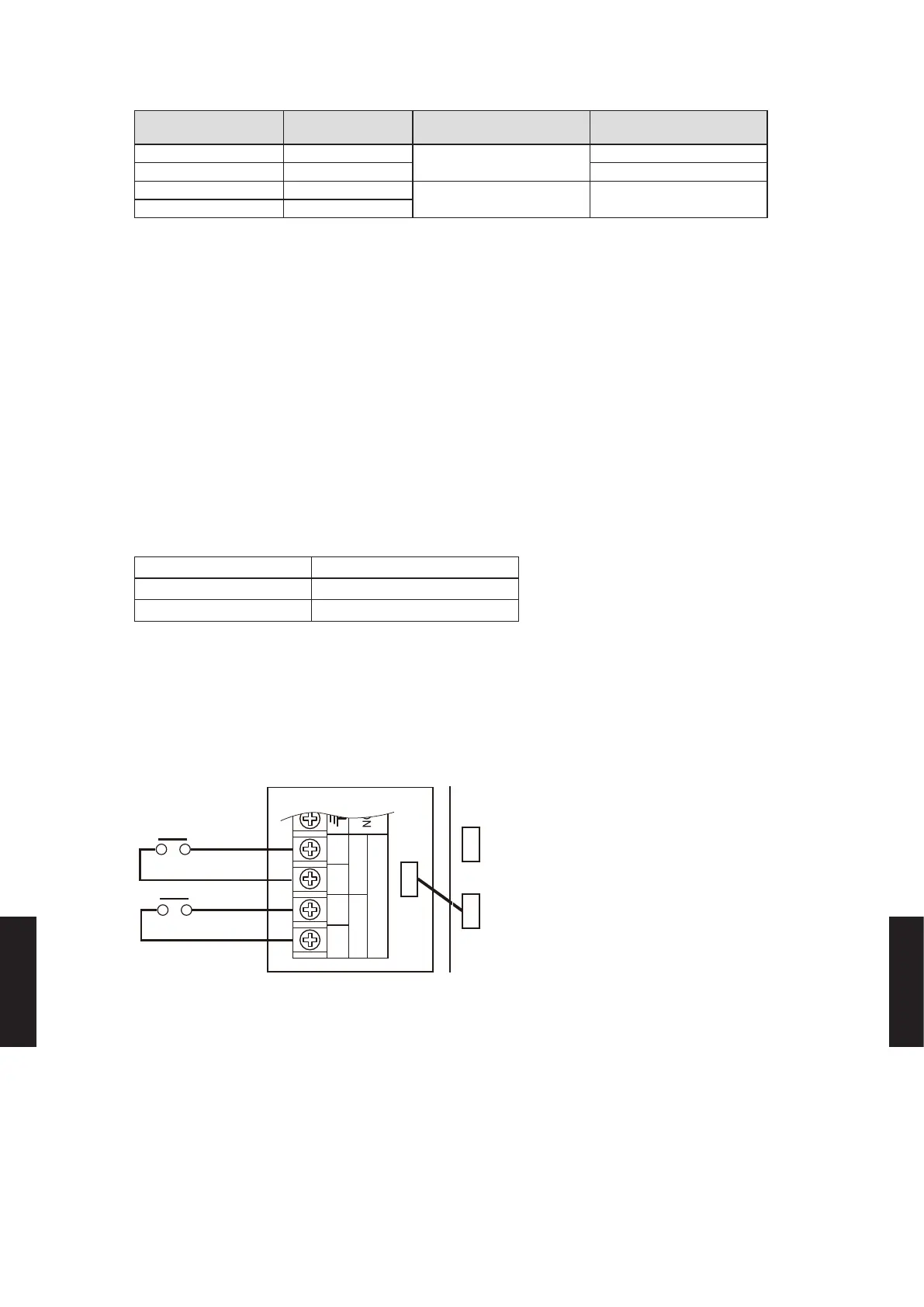

Connection example 1: When the switch is connected
K1 K2 K1 K2
CH1 CH2
TM201
*1
EXTERNAL INPUT
(WHITE)
CN411
(RED)
CN412
CN201
PCB
PCB
*1: Short circuit detection resistance (R
ON
) : ≤ 500 (ohm).
Open circuit detection resistance (R
OFF
) : ≥ 100 (kilo-ohm).
A twisted pair cable(22AWG) should be used. Maximum length of cable is 82 ft. (25 m)
- (08 - 48) -
