CONTROL INPUT FUNCTION
●

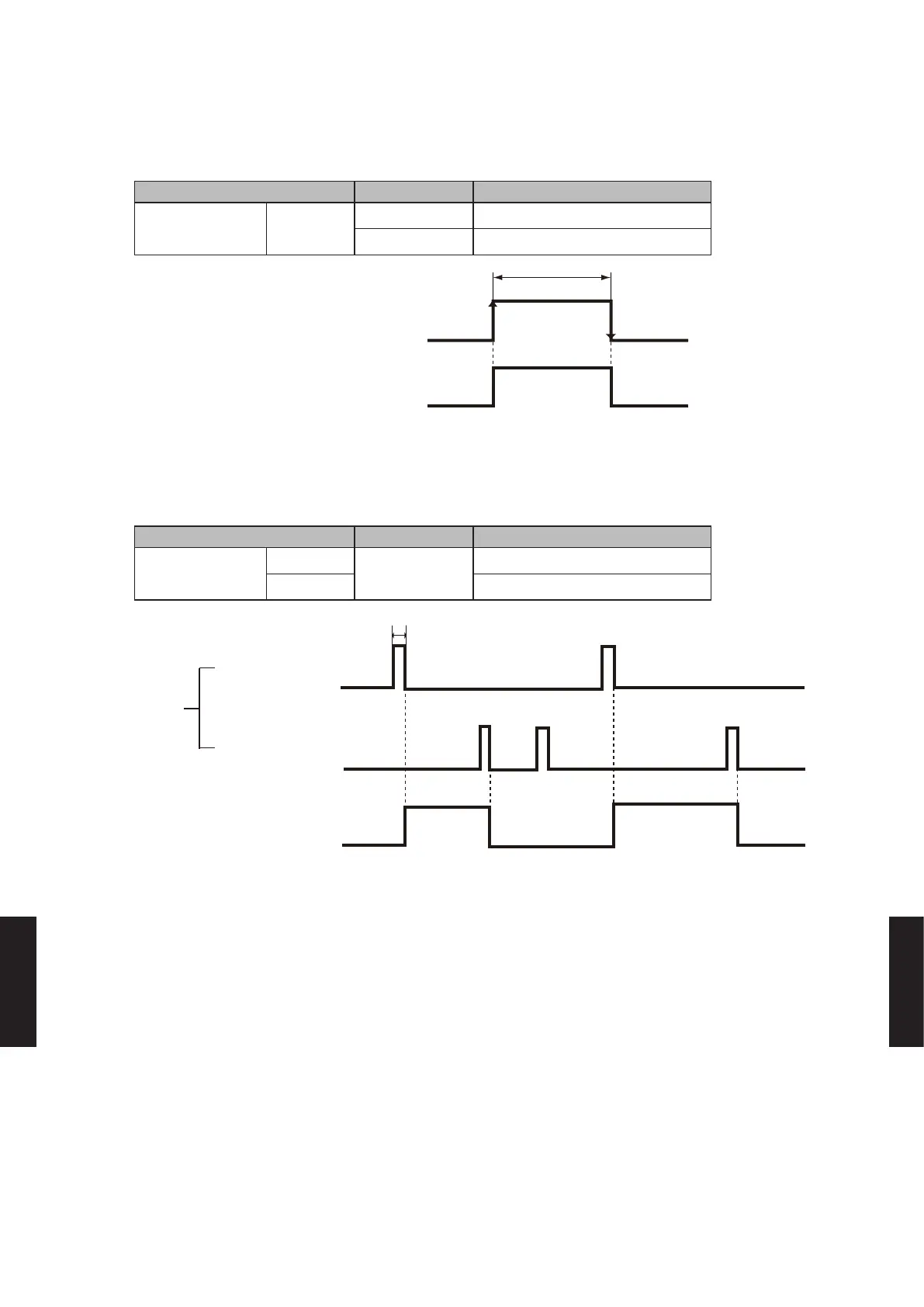

In the case of "Edge" input
Terminal Input signal Command
TM201 CH1
OFF → ON All on / Emergency stop
ON → OFF All off / Normal
300ms or more
CH1
Indoor unit
All on / Emergency stop
ON
OFF
All off / Normal
●
In the case of "Pulse" input
Terminal Input signal Command
TM201
CH1
Pulse
All on / Emergency stop
CH2 All off / Normal
OFF
OFF
ON
ON
TM201
CH1
CH2
Indoor unit
The width of pulse must be longer than 300msec.
All on / Emergency stop
All off / Normal
