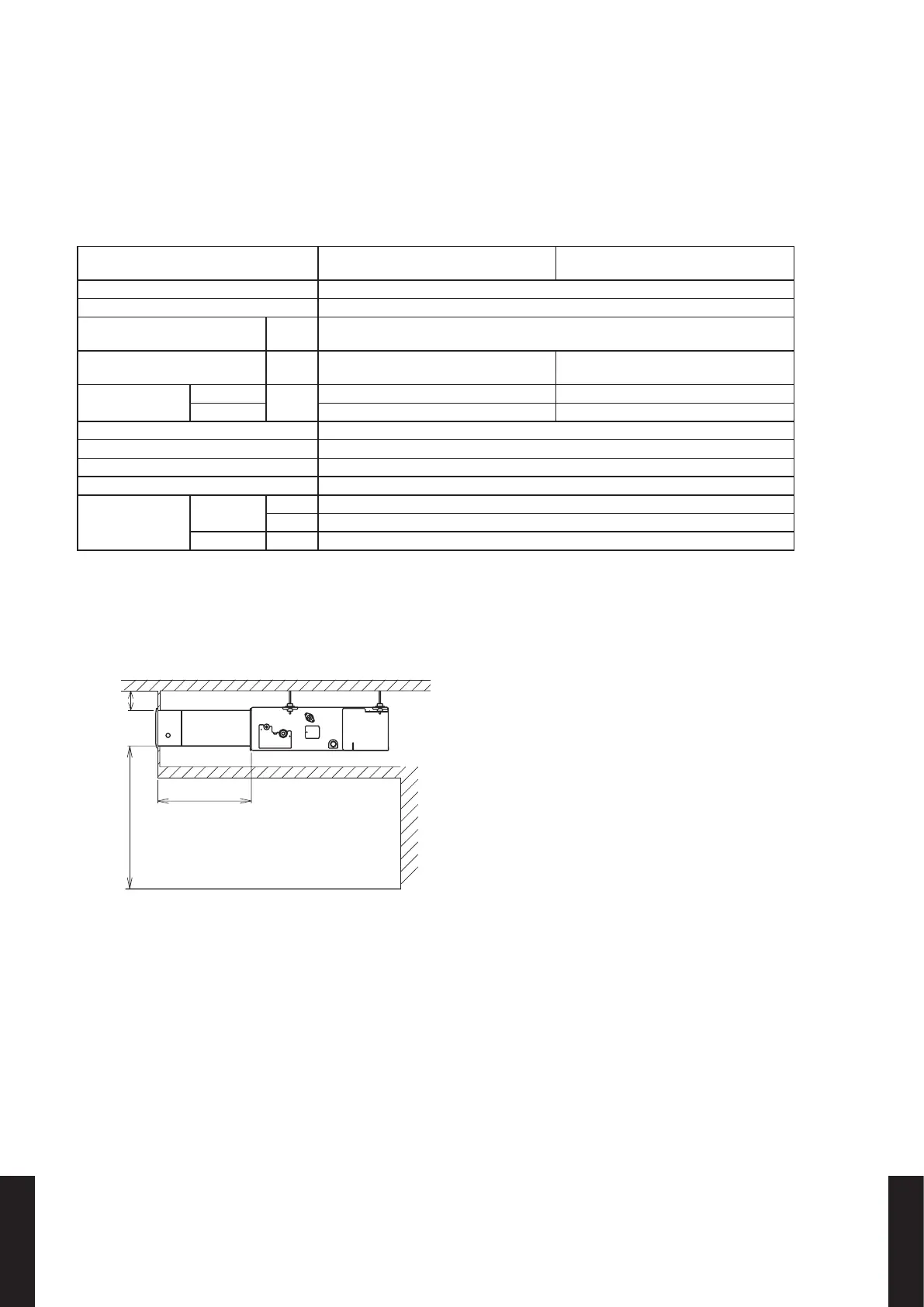

9-4. AUTO LOUVER GRILLE KIT
MODELS:
UTD-GXSA-W, UTD-GXTA-W
UTD-GXSB-W, UTD-GXTB-W
SPECIFICATIONS
Model name
UTD-GXSA-W
UTD-GXTA-W
UTD-GXSB-W
UTD-GXTB-W
Power Supply Connecting with Control box of indoor unit
Attachment of Auto Louver Louver attached by screws to the ange or rectangular duct
Extension Square Duct Limit
in.
(mm)
39-3/8 (1.0) (Max. duct length between indoor unit and Grille)
Net Dimension
(H × W × D)
in.
[mm]
7-1/16
× 26-7/8 × (3-5/16 + 3/8)
[180 × 683 × (84 + 9)]
7-1/16 × 34-3/4 × (3-5/16 + 3/8)
[180 × 883 × (84 + 9)]
Weight
Net
lbs.
(kg)
4.4 (2.0) 5.6 (2.5)
Gross 6.7 (3.0) 7.8 (3.5)
Color White
Louver Motor Stepping Motor
Material Flame retardant ABS
Accessories Attachment Frame
Operation range
Cooling
°F (°C) 64 to 90 (18 to 32)
% RH 80% or less
Heating °F (°C) 60 to 88 (16 to 30)
PRECAUTION
● Select the installation location that meets the following requirement and that is approved by the
customer.
• Cold and warm air should reach the entire room.
D ≤ 39-3/8 in. (1000 mm)
D
Floor
*1) Refer to Design & Technical manual for Air velocity distribution and Air temperature distribution during heating.
*2) If the distance from the ceiling is not adequate, it may cause mildew stains on the wall or the ceiling. Install at least
5-7/8” (150 mm) away from any surface.
● Do not install the unit in the following areas
• Near an entrance to the room. This may cause condensation on the outlet.
• Near a wall surface. It may cause condensation on the wall during cooling.
• Area lled with mineral oil or containing a large amount of splashed oil or steam, such as a kitchen.
• In direct sunlight. This may cause discoloration of the unit.
● When the installation area is exposed to direct sunlight, take measures to block the light such as
curtains or blinds to prevent discoloration of the unit.
● Use an appropriate Grille that is compatible with the indoor unit. If not used with the correct
combination, it may cause condensation.
● Perform heat insulation and eld setting according the Design & Technical manual of Indoor unit.
Not installing as per the instructions may cause condensation.
- (10 - 80) -
OPTIONAL
PARTS
OPTIONAL
PARTS
