Set Up the Cleaver
Adjusting the clamping force

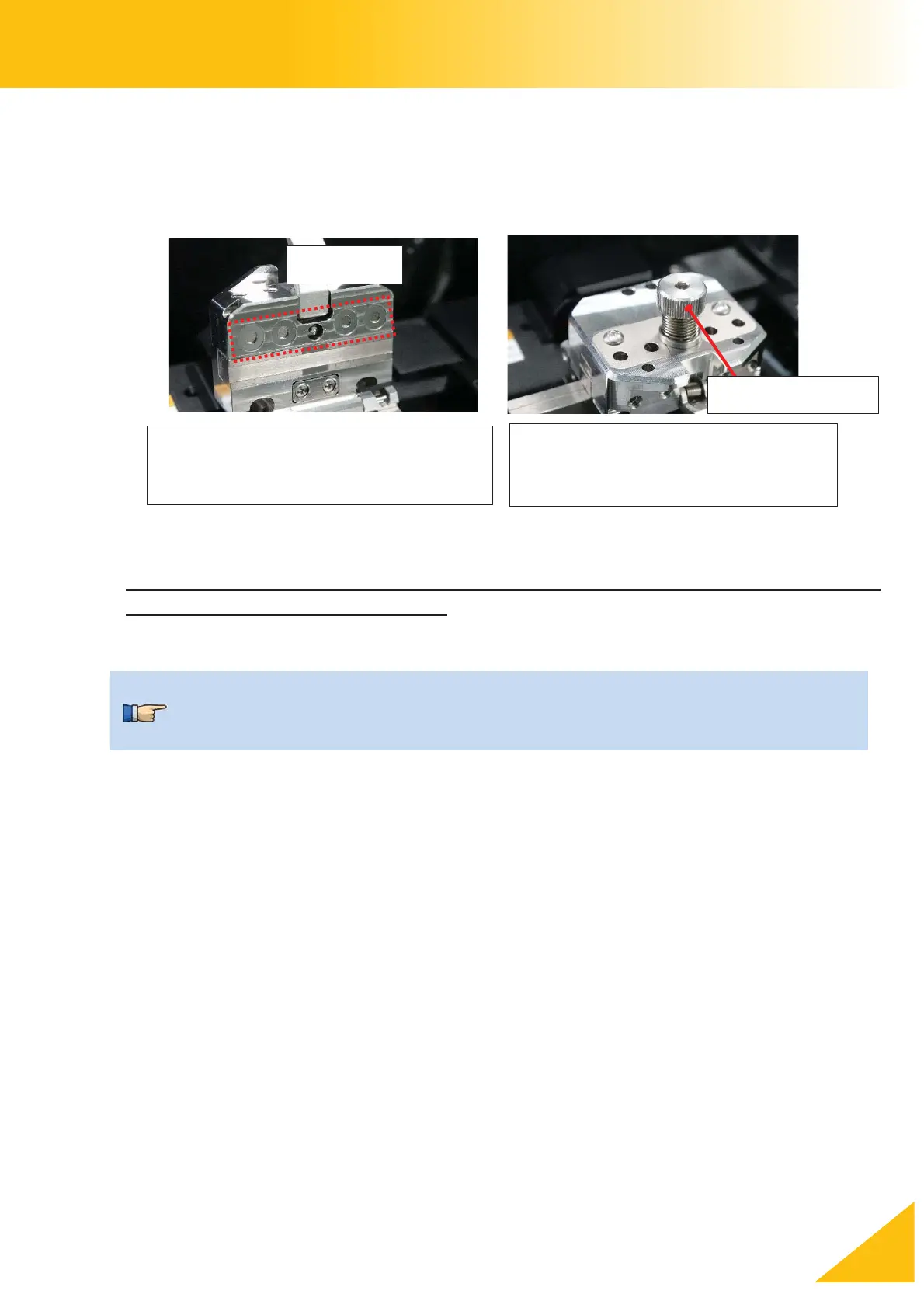

The clamping force of the CT114 can be adjusted by the changing the magnet positions and
tightening the clamp lid screw.
A torque driver capable of measuring in centinewton-meters (cNm) is required
for tightening the clamp lid screw.
There are 4 magnets in the clamp lid.
T
he magnetic force can be changed
by changing their positions.
The clamp lid screw is used for
fibers with a cladding diameter
between 400m and 660
m.
¾
Change the position of the magnets according to the cleaving requirements.
