Cleave Menu
Fiber Type

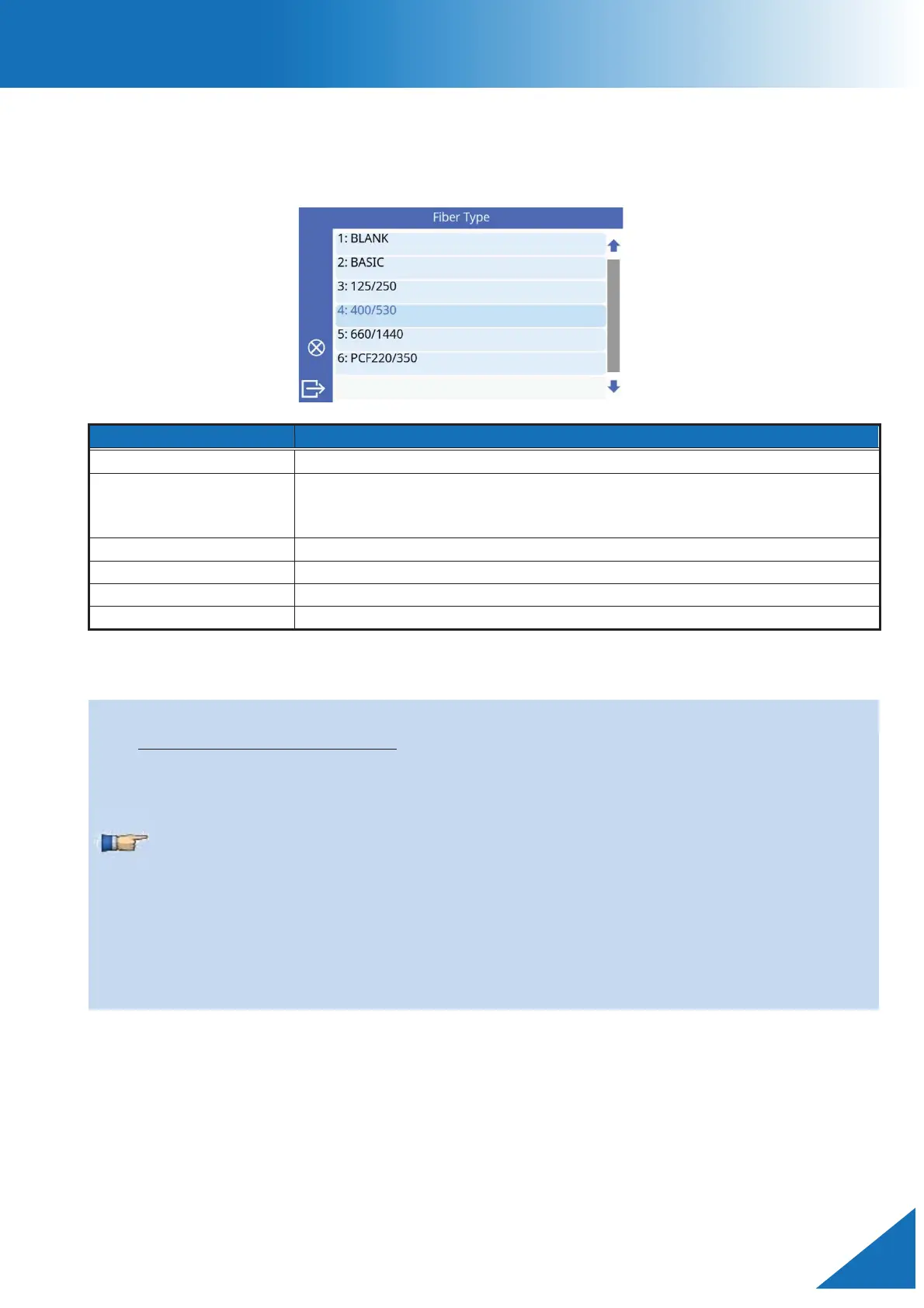

In [Fiber Type] you can set up a cleave mode based on the information for fibers listed in
the table below. Select the closest cleave mode to the fiber to be cleaved.
Cleave Mode
Description
BLANK
This option will erase the cleave mode parameters.
BASIC
This mode should be used to optimize cleaving parameters
according to the fiber. Some parameters
will be adjusted
automatically by [Cleave Diameter] or [Left / Right Clamp Diameter].
125/250
This cleave mode can cleave 125m clad / 250mcoatedfiber.
400/530
This cleave mode can cleave 400m clad / 530mcoatedfiber.
660/1440
This cleave mode can cleave 660m clad / 1440mcoatedfiber.
PCF220/350
This cleave mode can cleave 220m clad / 350mcoatedPCF.
How to select the Cleave Mode
¾ [BASIC]
If a cleave mode for your fiber does not exist, select this mode and optimize the
cleave parameters for cleaving your fiber.
¾ [125/250] etc
These modes are named using the system: (Cladding Diameter) / (Buffer or
Coating Diameter). These modes are to cleave the corresponding diameter of
fiber.
¾ [PCF] 䚸䚸 [CAPILLARY] etc
These modes are to cleave PCF (Photonic Crystal Fiber) and Capillary Tubing.
